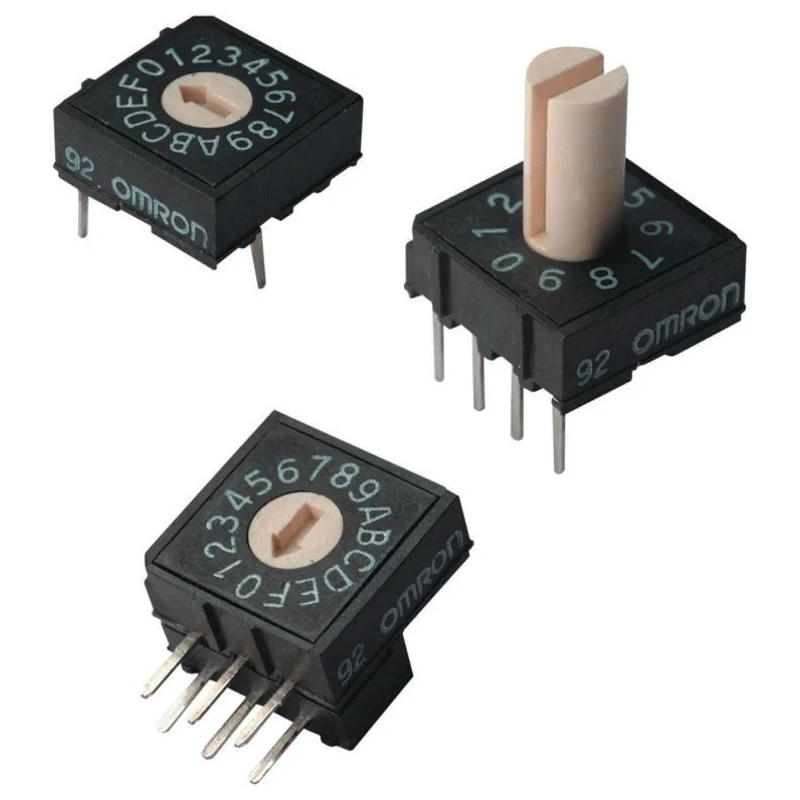

Omron Rotary Coded DIP Switch Through Hole Mount Rotary Flush Actuator A6RV-102RF CHN

Omron A6RV-102RF CHN Rotary Coded DIP Switch is a through-hole mount rotary flush actuator switch designed for precise electrical control in industrial and electronics applications. It features an IP60 rated O-ring sealed construction that prevents ingress of dust and dirt, ensuring reliable performance and longevity.

This DIP switch series includes options for either 10 or 16 switching positions, making it suitable for a wide range of PCB environments where low current switching is needed. The switch provides a contact rating of 25mA @ 24Vdc with a maximum contact resistance of 200 milliohms, enabling dependable circuit connections. It also features insulation resistance of at least 100 megaohms at 250Vdc for enhanced safety and electrical isolation.

With an electrical life rating of up to 5000 steps per minute and operating temperatures from -25 to +80°C, this switch is ideal for demanding industrial uses including automation systems, control panels, instrumentation, and communications equipment.

The compact design uses a standard 2.54mm pin spacing for straightforward PCB integration. Its rotary flush actuator allows easy user operation and compact assembly footprint. This DIP switch offers 10 or 16 switching positions for versatile applications.

It features an O-ring sealed rotor construction preventing dust and dirt ingress. The contact rating is 25mA at 24Vdc ensuring low power control. Electrical life spans up to 5000 steps per minute providing durability in operation.

Operating temperature ranges from -25 to +80 degrees Celsius for wide environmental use. The switch uses a 2.54mm pin spacing for standard PCB mounting compatibility. Its contact resistance is a maximum of 200 milliohms ensuring reliable conductivity.

Insulation resistance is at least 100 megaohms at 250Vdc ensuring secure electrical isolation. Designed and manufactured in China under the Omron brand.

Applications extend to industrial automation, manufacturing equipment, electronic instrumentation, HVAC controls, and many other commercial or laboratory devices requiring precise rotary switching functions. Omron's reputation for quality production guarantees consistent performance and compliance with relevant electrical standards.
