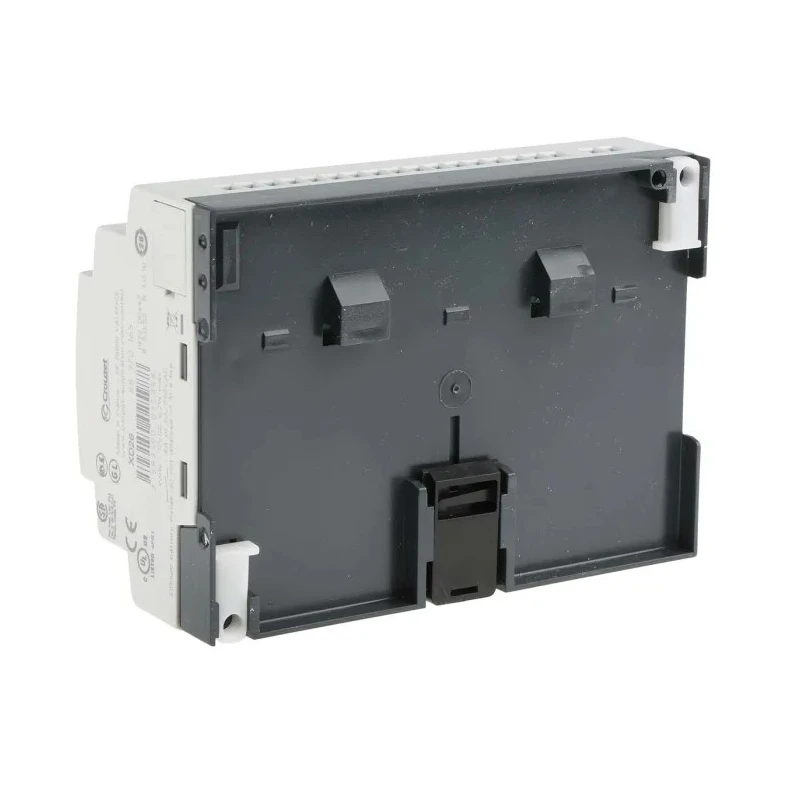

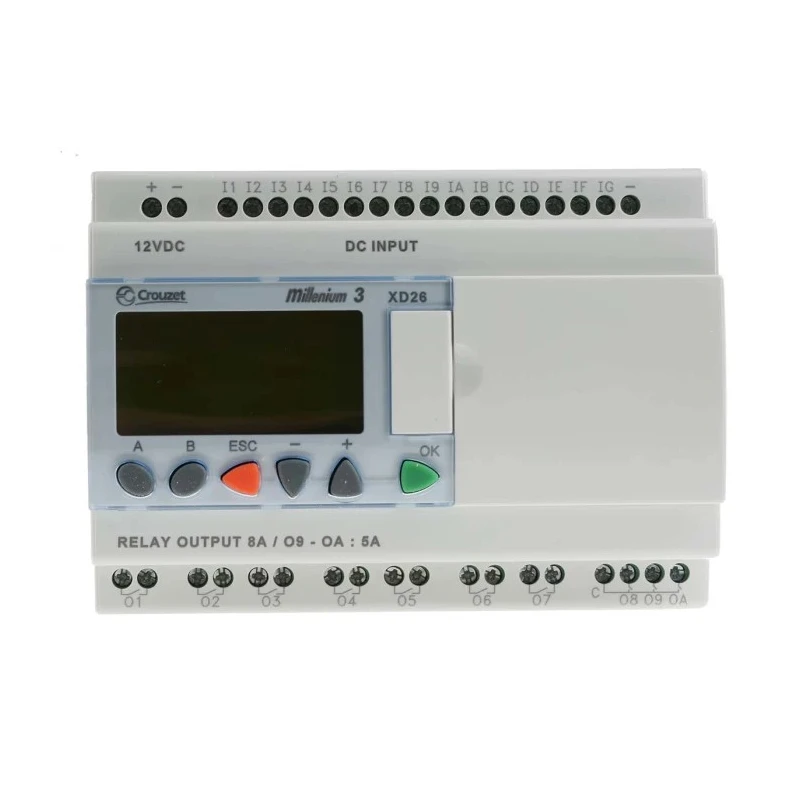

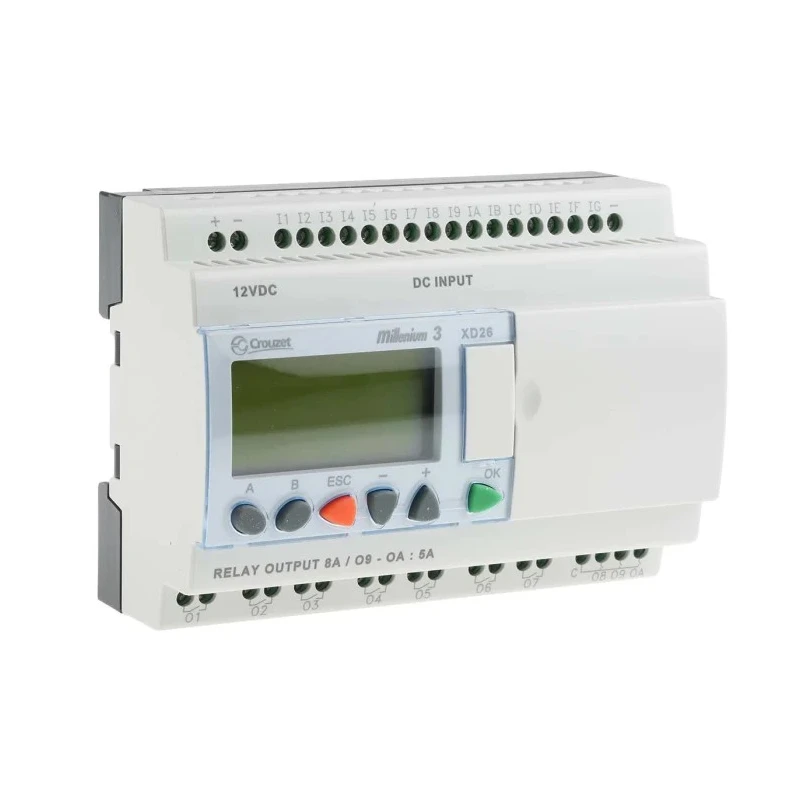

Crouzet Millenium 3 Series Expandable Logic Module 16 Inputs Digital Analogue, 10 Relay Outputs, 12V DC 88970165

The Crouzet 88970165 Millenium 3 Series Logic Module is an advanced and expandable industrial automation solution designed for reliable control applications. It integrates 16 inputs, including 6 analogue and digital types, and 10 relay outputs designed to handle currents up to 8A or 5A respectively. Powered by a 12V DC supply and housed in a DIN rail mountable enclosure with screw terminations, this logic module offers robust mechanical installation and easy field wiring.

This logic module boasts a large memory capacity suitable for complex automation programs and supports programming in Ladder Logic, Function Block Diagram, and Sequential Function Chart. Communication is facilitated through dual ports including Serial and USB interfaces, enabling flexible integration and networked control across devices.

The device operates effectively in industrial temperature ranges from -20°C to +55°C, equipped with a green LCD display featuring four lines with eighteen characters each, plus configurable backlighting and scrolling text with bar graph functionality for detailed status monitoring. Battery backup ensures data retention and program protection during power interruptions.

Expandability is a key feature, allowing connection of digital or analogue I/O extensions along with XN network communication modules for scalable automation solutions. Compliance with IEC/EN 61131-2 standards guarantees compatibility and safety in application environments.

Typical applications for the Crouzet Millenium 3 Logic Module include automation in washing equipment, agricultural machinery, air conditioning management, and heating systems. It is ideal for industrial, manufacturing, HVAC, and water treatment automation setups.

Supports up to 16 inputs including digital and 6 analogue channels. Equipped with 10 relay outputs; 8 with 8A rating and 2 with 5A rating. DIN rail mountable with screw termination method for easy installation. Includes battery backup to preserve program and data integrity.

Communication ports include Serial and USB for versatile connectivity. Programmable using ladder logic, function block diagram, and sequential function chart. Operates reliably between -20°C and 55°C ambient temperature.

Features a green LCD display with 4 lines of 18 characters and backlighting. Expandable with XN network communication extensions and digital/analogue I/O modules. Designed and manufactured in France following IEC/EN 61131-2 standards.

This product is part of the Crouzet Millenium 3 series, recognized for its robust performance and expandability in industrial automation. Available through EnvMart for professionals seeking reliable programmable logic controllers with flexible configuration options.
