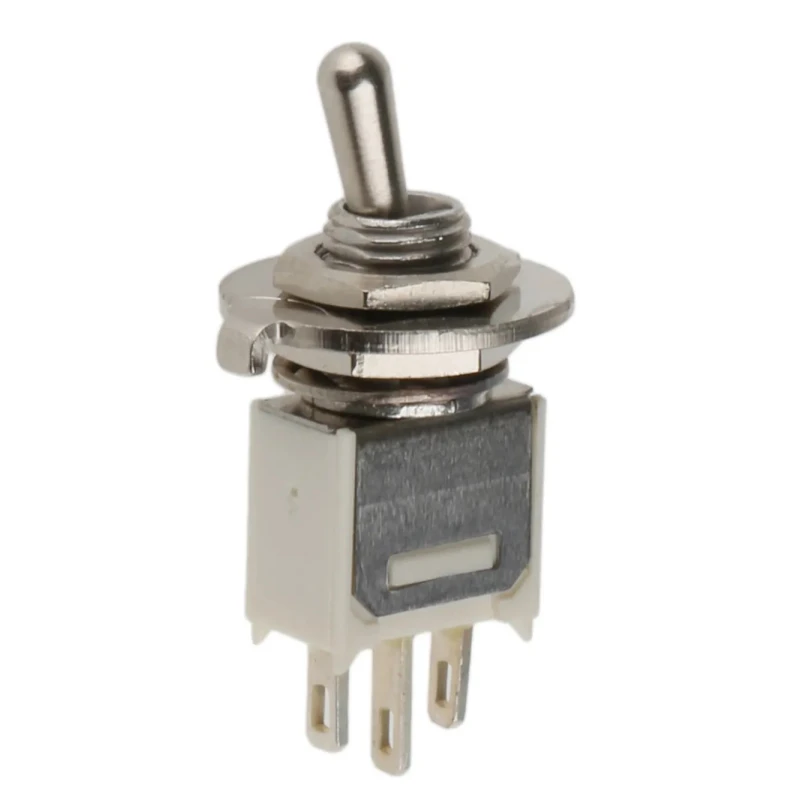

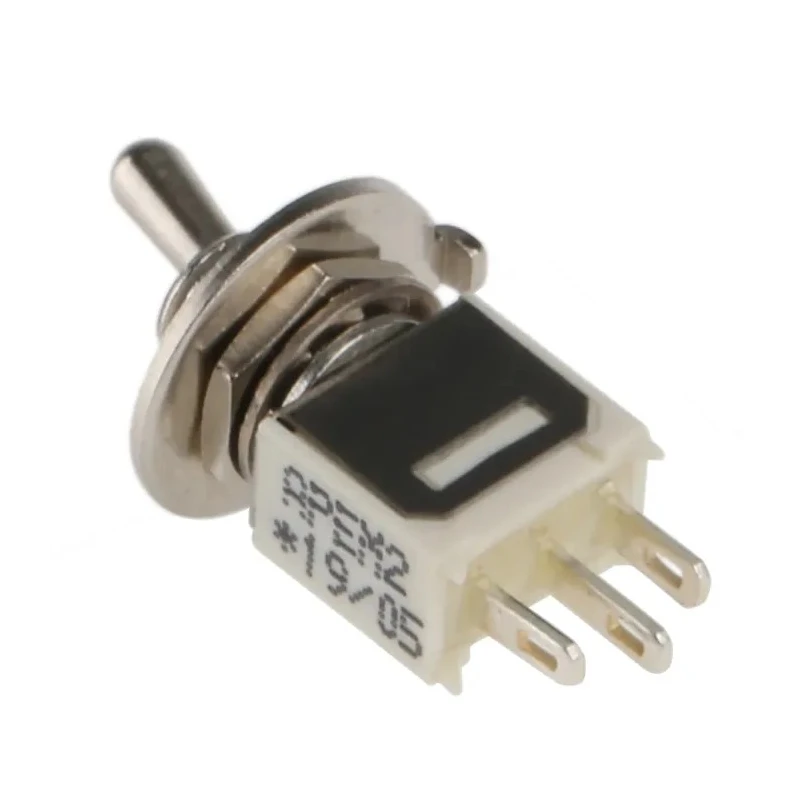

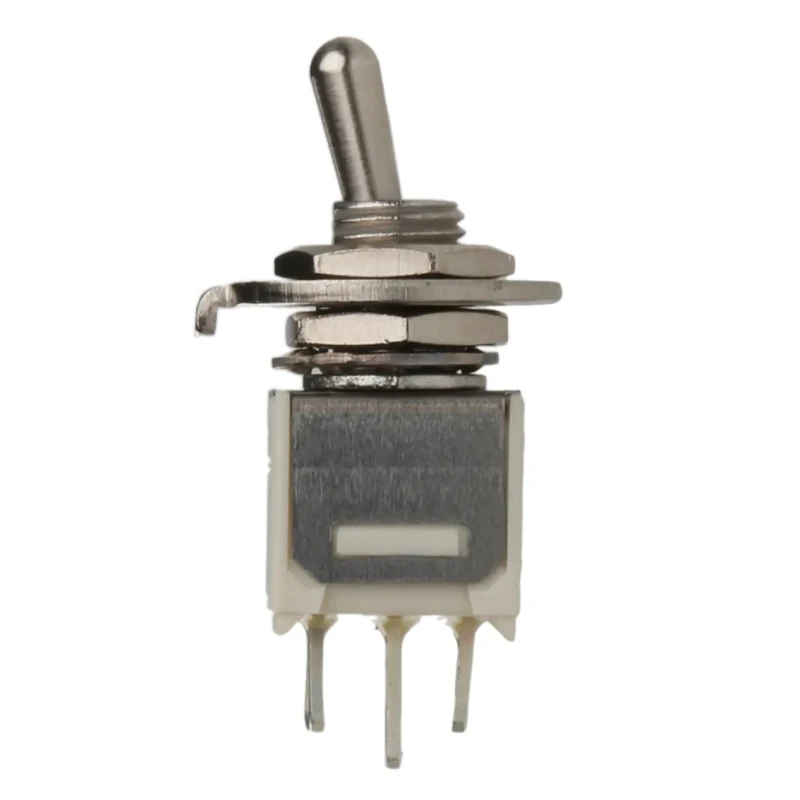

APEM Toggle Switch Panel Mount On-On SPST Solder Terminal 48 V DC 48 V AC ZL36S0101
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 23.7mm |
| Length | 8.1mm |
| Model | ZL36S0101 |
| Width | 5mm |
| Mount Type | Panel |
| Series | ZL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 4.9 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 5.5mm |
| Contact DC Voltage | 48V dc |
| Switch Contact Current | 500mA |
| Contact AC Voltage | 48V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch features a single pole single throw (SPST) contact configuration.
- It operates with an On-On switch action providing two active positions.
- Current rating of 500mA supports low power switching applications.
- Solder lug terminals enable secure electrical connections.
- The actuator is made from brass and measures 5.5 mm in length.
- The panel cutout size required is 4.9 mm, suitable for compact mounting.
- It is designed for panel mounting with a compact size of 23.7 mm height and 8.1 mm length.
- Operating temperature ranges from -30°C to 85°C ensuring reliable function under varied conditions.
Product Description
The APEM ZL36S0101 toggle switch is an ultra miniature panel mount switch designed for space-constrained electrical and automation applications. Featuring a Single Pole Single Throw (SPST) On-On operation and rated for 48 V DC and 48 V AC, it is suitable for low current control circuits up to 500mA.
The switch includes solder lug terminals with epoxy-sealed terminals to prevent flux ingress, ensuring durability and consistent electrical performance. The brass actuator provides mechanical robustness and precise operation, while the thermoplastic case offers insulation and protection.
The compact dimensions - 23.7 mm in height, 8.1 mm in length, and a 4.9 mm panel cutout - allow easy integration into electronic panels or control boards.
Operating temperature ranges from -30°C to 85°C, enabling use in a variety of industrial, electrical, and automation environments, including HVAC control panels, instrumentation, and compact equipment controls.
The switch meets RoHS and UL quality standards and is manufactured in France, ensuring compliance with international regulations and reliability requirements. This toggle switch features a single pole single throw (SPST) contact configuration.
It operates with an On-On switch action providing two active positions. Current rating of 500mA supports low power switching applications. Solder lug terminals enable secure electrical connections. The actuator is made from brass and measures 5.5 mm in length.
The panel cutout size required is 4.9 mm, suitable for compact mounting. It is designed for panel mounting with a compact size of 23.7 mm height and 8.1 mm length. Operating temperature ranges from -30°C to 85°C ensuring reliable function under varied conditions.
The switch complies with RoHS and UL standards and is made in France.
This Toggle Switch is ideal for industrial automation, electrical panels, laboratory equipment, and manufacturing controls where precise ON-ON switching and compact size are critical.
Explore the Electronics & Electricals category on EnvMart for high-quality switches and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a current rating of 500mA, making it suitable for low power switching applications.
This model has a height of 23.7 mm, a length of 8.1 mm, and a width of 5 mm.
The required panel cutout size for this toggle switch is 4.9 mm.
It features solder lug terminals, which enable secure electrical connections.
The operating temperature range is from -30°C to 85°C, allowing for use in various environments.
The switch has a Single Pole Single Throw (SPST) contact configuration.
It is rated for 48 V DC and 48 V AC, suitable for low current control circuits.
The actuator is made from brass, which provides mechanical robustness.
This model complies with RoHS and UL standards, ensuring it meets international regulations.
It operates with an On-On switch action, providing two active positions.
The toggle switch is manufactured in France, ensuring quality and reliability.
This switch is suitable for industrial automation, electrical panels, laboratory equipment, and manufacturing controls.
