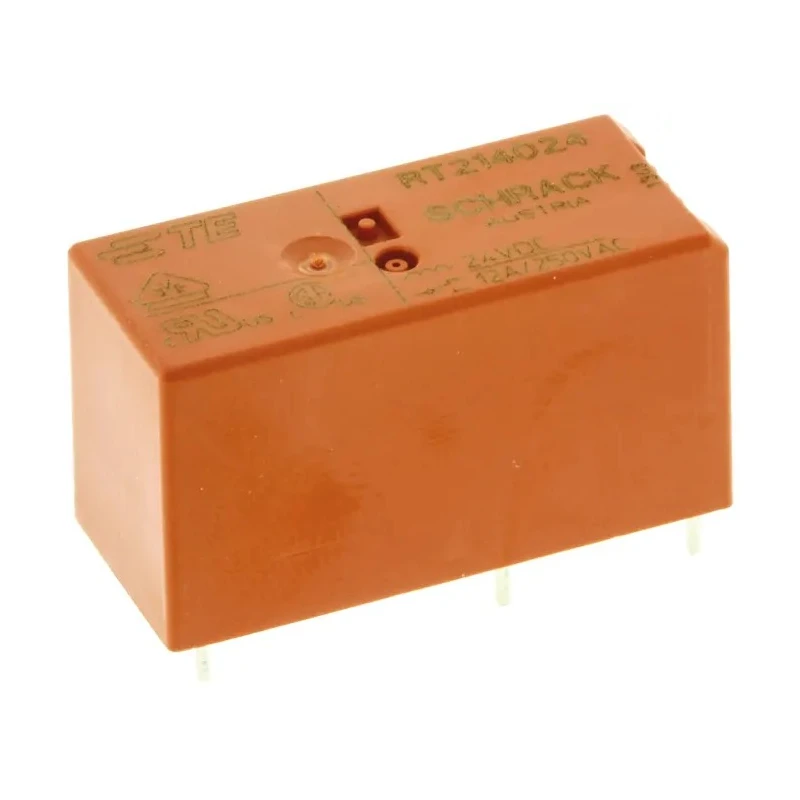

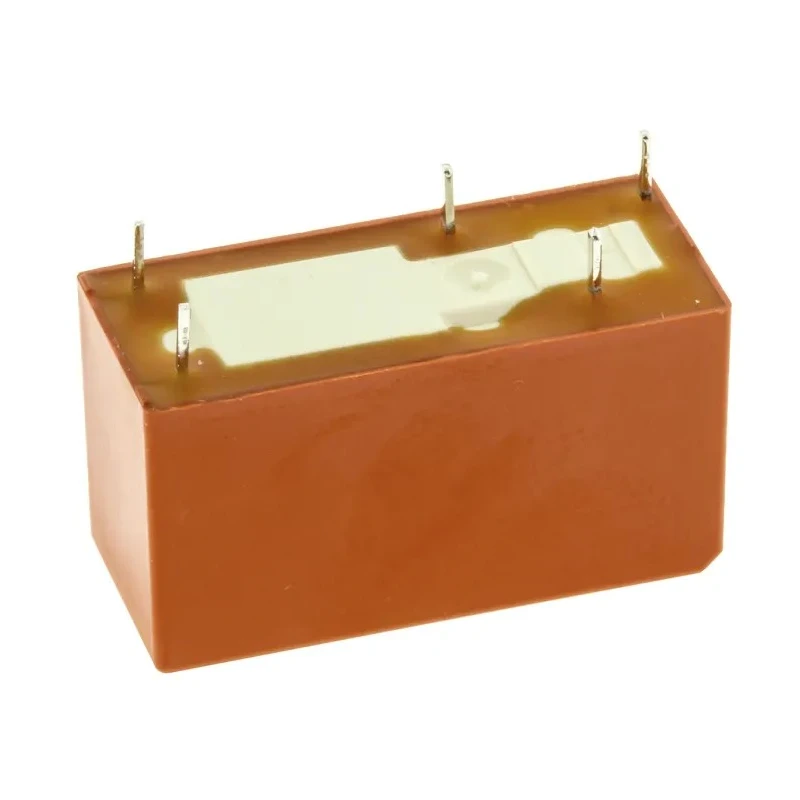

TE Connectivity PCB Power Relay 24V dc Coil 12A Switching Current SPDT 5-1393239-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |

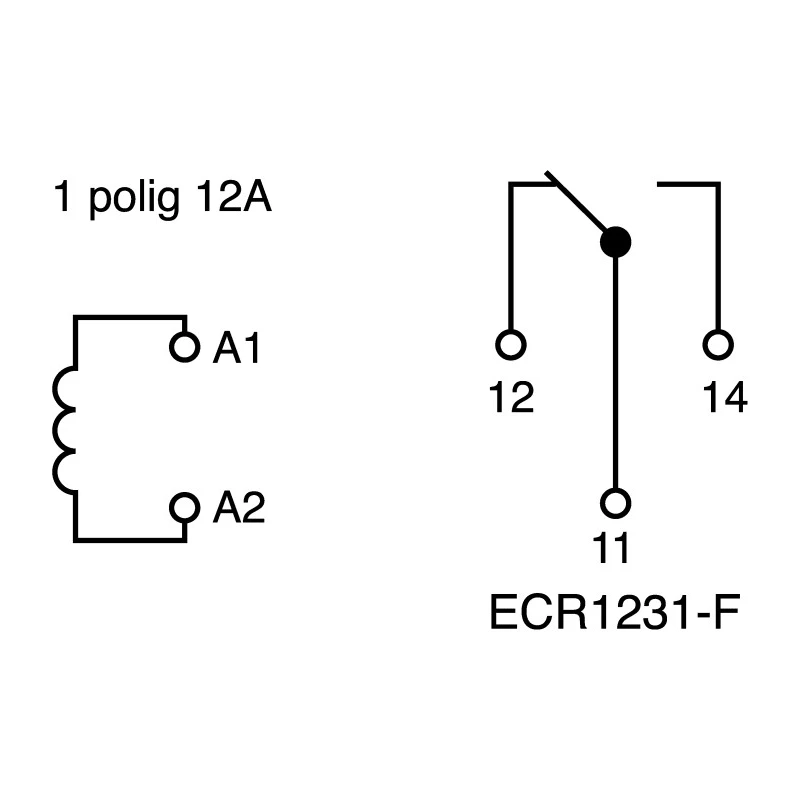

| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type ensuring secure electrical connections.
- Supports switching AC voltage up to 400V ac and switching power of 3kVA for robust performance.
- Operates within a wide temperature range from -40°C to 85°C, suitable for various industrial applications.
- Features silver alloy contact material for enhanced conductivity and durability.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height enable space-efficient installations.
- Coil resistance of 1.4kΩ and coil power of 400mW optimize energy consumption efficiency.
- Meets RoHS standards ensuring compliance with environmental safety regulations.

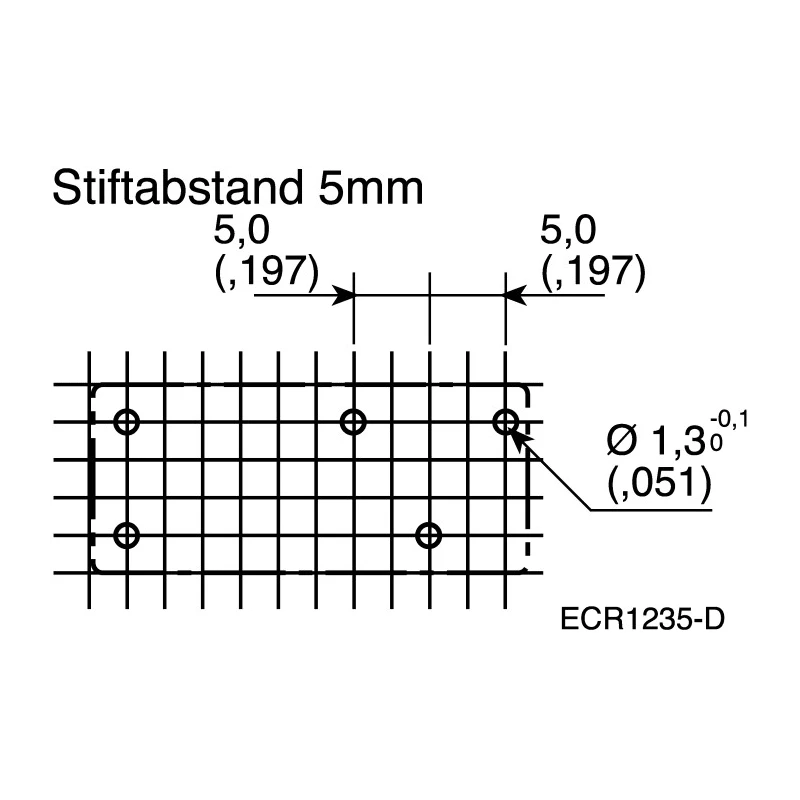

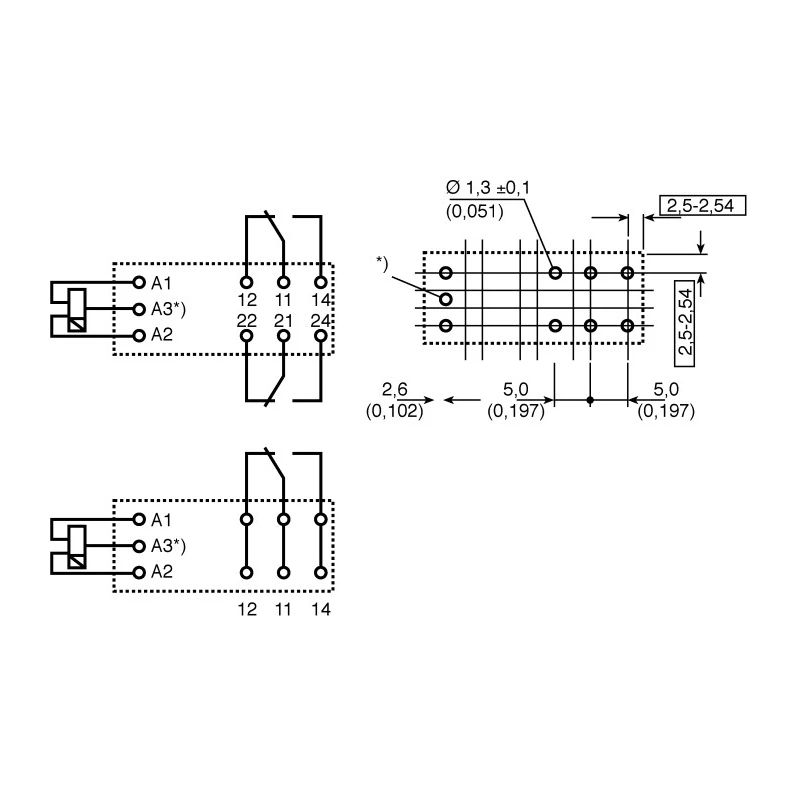

- Part of the SCHRACK series, providing standard and sensitive relay designs with soldering line proof and 3.5 or 5 mm print pattern options.
Product Description
TE Connectivity 5-1393239-5 PCB Power Relay is a high-performance relay featuring a 24V dc coil voltage and a switching current of 12A with SPDT (Single Pole Double Throw) contact configuration. This relay is specifically designed for printed circuit board (PCB) mounting, with reliable solder terminal connections ensuring operational stability.
It supports a maximum switching AC voltage of 400V ac and switching power of up to 3kVA, catering to a wide range of electrical and automation applications. The relay operates efficiently within temperatures ranging from -40°C to 85°C, making it suitable for industrial, manufacturing, and automation environments that demand durable and dependable components.
Constructed with silver alloy contacts, this relay guarantees excellent conductivity and long service life. The compact size, measuring 29mm in length, 12.7mm in width, and 15.7mm in height, facilitates easy integration into PCB layouts without sacrificing performance. Its coil specifications include a resistance of 1.4kΩ and power consumption of 400mW, optimized for energy-efficient operation.
This product adheres to RoHS environmental standards, ensuring compliance with material safety regulations. As part of the SCHRACK series, it offers both standard and sensitive relay designs, including soldering line proof features and options for 3.5 or 5 mm print patterns for versatile PCB compatibility.
PCB mounting relay with solder terminal type for secure connections. 24V dc coil voltage with 12A SPDT switching current. Supports 400V ac switching voltage and 3kVA switching power. Wide operating temperature range from -40°C to 85°C.
Silver alloy contacts for enhanced durability and conductivity. Compact dimensions suitable for space-limited applications. Energy-efficient coil with 1.4kΩ resistance and 400mW power. RoHS compliant and part of standardized SCHRACK relay series.
This TE Connectivity PCB Power Relay is ideal for industrial automation, electrical control systems, HVAC, manufacturing processes, and laboratory applications requiring reliable switching components. Browse the broader category of Power Relays on EnvMart for related electrical components and advanced relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This relay can handle a maximum switching current of 12A.
It supports a maximum switching AC voltage of 400V AC.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance of this model is 1.4kΩ.
The coil power consumption is 400mW.
It operates efficiently within a temperature range of -40°C to 85°C.
The contacts are made of silver alloy, enhancing conductivity and durability.
Yes, this relay meets RoHS standards for environmental safety.
This relay is designed for PCB mounting with solder terminal type for secure connections.
This relay is part of the SCHRACK series, which includes standard and sensitive relay designs.
