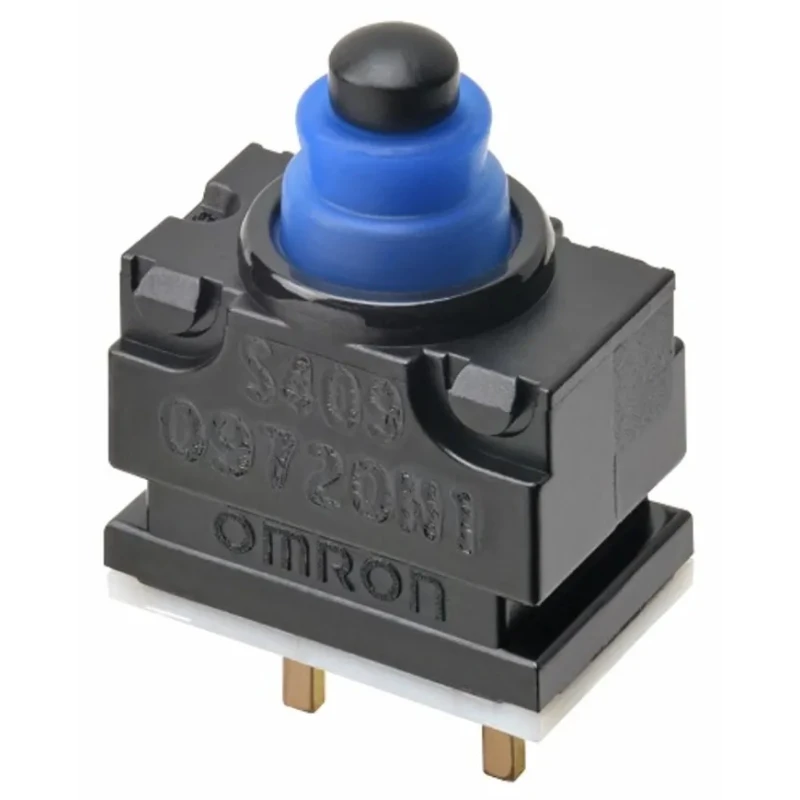

Omron Pin Plunger Subminiature Micro Switch PCB Terminal 1mA, 13.5 V dc, SPST-NC, IP67 D2GW-A02H

Free Delivery in India | Lowest Global Shipping Charges

Omron Pin Plunger Subminiature Micro Switch PCB Terminal 1mA, 13.5 V dc, SPST-NC, IP67 D2GW-A02H

Name: Omron Pin Plunger Subminiature Micro Switch PCB Terminal 1mA, 13.5 V dc, SPST-NC, IP67 D2GW-A02H
Brand: Omron
SKU: 309995
Price: 4.07 USD
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Model	D2GW-A02H
IP Rating	IP67
Series	D2GW
Maximum Operating Temperature	85°C
Contact Configuration	SPST-NC
Actuator Type	Pin Plunger
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Contact DC Voltage	13.5V dc
Switch Contact Current	1mA

Key Features

Features a pin plunger actuator for precise switching operation.
Rated for switch contact current of 1mA and contact DC voltage of 13.5 V.
Configured as single pole single throw normally closed (SPST-NC) contact.
Offers IP67 ingress protection rating for dust and water resistance.
Operates reliably between -40°C and 85°C temperature range.
Compact and sealed subminiature design suitable for various industrial applications.
Compliant with RoHS standards, ensuring environmentally friendly manufacturing.
Press-fit terminals enable solder-less contact for easy PCB mounting.

Product Description

Omron D2GW-A02H pin plunger subminiature micro switch is a highly reliable component designed for precision electrical switching in industrial, automation, and electronic applications. This sealed ultra subminiature switch features a pin plunger actuator, making it suitable for integration into compact assemblies requiring dependable switching performance.

The switch is rated for a contact current of 1mA at 13.5 V dc, with a contact configuration of SPST-NC, ensuring controlled circuit interruption or connection in sensitive low power circuits. The IP67-rated enclosure protects the device from dust ingress and water immersion, allowing its use in demanding environments.

Operating within a temperature range of -40°C to 85°C, this switch maintains consistent performance across various industrial conditions. Its symmetrical, compact design supports multiple actuator variations and simplifies product design integration. Press-fit terminals on the PCB terminal type allow for solder-less mounting, enhancing assembly efficiency.

The sliding structure incorporated in the design ensures quiet operation, beneficial for noise-sensitive environments. Compliance with RoHS standards guarantees environmentally conscious manufacture without hazardous substances.

This subminiature micro switch is ideal for use in electrical automation systems, instrumentation, and other applications requiring reliable, miniature switch components. Package contents include a single Omron D2GW-A02H micro switch ready for PCB integration and testing.

Features a pin plunger actuator for precise switching operation. Rated for switch contact current of 1mA and contact DC voltage of 13.5 V. Configured as single pole single throw normally closed (SPST-NC) contact. Offers IP67 ingress protection rating for dust and water resistance.

Operates reliably between -40°C and 85°C temperature range. Compact and sealed subminiature design suitable for various industrial applications. Compliant with RoHS standards, ensuring environmentally friendly manufacturing.

Press-fit terminals enable solder-less contact for easy PCB mounting. Symmetrical shape supports versatile actuator variations and design simplification. Sliding structure delivers quiet operation with high contact reliability.

Explore Omron products and similar Micro Switches in the EnvMart Electrical & Electronics category for quality circuit control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a single pole single throw normally closed (SPST-NC) contact configuration, allowing for controlled circuit interruption in low power applications.

The maximum operating temperature for the D2GW-A02H is 85°C, ensuring reliable performance in a variety of industrial conditions.

This micro switch has an IP67 ingress protection rating, which means it is protected against dust ingress and can withstand water immersion.

The D2GW-A02H is rated for a switch contact current of 1mA, making it suitable for sensitive low power circuits.

This micro switch utilizes a pin plunger actuator, which allows for precise switching operations in compact assemblies.

The minimum operating temperature for the D2GW-A02H is -40°C, allowing it to function in extreme cold environments.

This model features press-fit terminals that enable solder-less contact for easy and efficient PCB mounting.

Yes, it is compliant with RoHS standards, ensuring that it is manufactured without hazardous substances.

The contact DC voltage rating for the D2GW-A02H is 13.5V, making it suitable for low voltage applications.

Specific dimensions are not provided, but it is noted for its compact and sealed subminiature design, suitable for integration into tight spaces.

The D2GW-A02H is suitable for various industrial applications, including electrical automation systems and instrumentation that require reliable switching components.

The country of origin for the D2GW-A02H is China, where it is produced under strict manufacturing standards.
