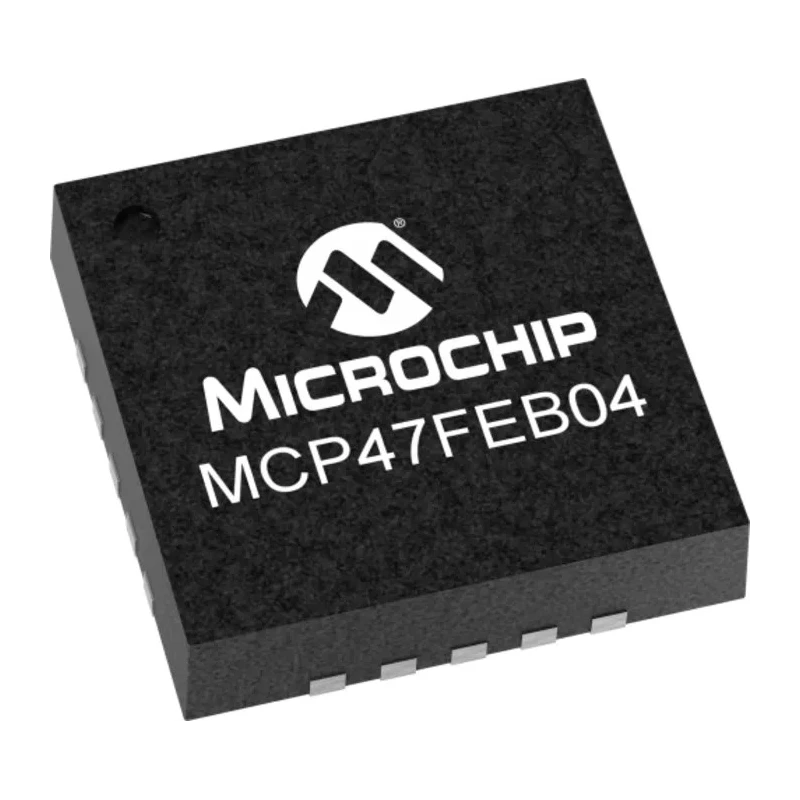

Microchip Digital to Analogue Converter DAC 8 bit 4-Channel Serial-I2C 20-Pin QFN MCP47FEB04-E/MQ
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Microchip |
| Height | 1mm |
| Length | 5mm |
| Model | MCP47FEB04-E/MQ |
| Width | 5mm |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 4 |
| Interface Type | Serial-I2C |
| Architecture | Resistor Ladder |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features an 8-bit resolution with resistor ladder architecture.
- Includes 4 analogue voltage output channels.
- Operates over a supply voltage range of 2.7V to 5.5V.
- Utilizes a Serial-I2C interface for communication.
- Compact 5mm x 5mm x 1mm QFN package with 20 pins.
- Provides a fast settling time of 7.8 microseconds.
- Wide operating temperature range from -55°C to 125°C.
- Includes non-volatile EEPROM memory for data retention.
Product Description
Microchip MCP47FEB04-E/MQ is a high-performance 8-bit Digital to Analogue Converter (DAC) featuring four output channels, designed for precision analogue voltage generation in embedded and industrial electronic applications. Packaged in a compact 20-pin QFN form factor measuring 5mm by 5mm by 1mm, it offers a resistor ladder architecture with integrated EEPROM for persistent settings.
Operating over a broad supply voltage range of 2.7V to 5.5V and featuring a fast settling time of 7.8 microseconds, this DAC supports efficient, low-latency conversion with high stability. The device communicates via a widely supported Serial-I2C interface, simplifying integration in microcontroller-based systems.
Its operational temperature range from -55°C to 125°C enables reliable performance in demanding environments, making it suitable for automotive, industrial control, instrumentation, and consumer electronics.
The four analogue voltage output channels allow multi-signal generation and control for complex systems. The non-volatile EEPROM memory retains channel configurations and calibration data, ensuring consistent operation after power cycles.
Typical use cases include sensor calibration, waveform generation, audio applications, and precision control systems in manufacturing and laboratory equipment. Its small footprint and robust electrical specifications make it ideal for space-constrained designs requiring dependable digital-to-analogue signal conversion.
Features an 8-bit resolution with resistor ladder architecture. Includes 4 analogue voltage output channels. Operates over a supply voltage range of 2.7V to 5.5V. Utilizes a Serial-I2C interface for communication. Compact 5mm x 5mm x 1mm QFN package with 20 pins.
Provides a fast settling time of 7.8 microseconds. Wide operating temperature range from -55°C to 125°C. Includes non-volatile EEPROM memory for data retention. Designed for a variety of industrial and electronic applications.
Compatible with systems requiring stable analogue voltage outputs. Explore more Digital to Analogue Converters and Microchip components on EnvMart for diverse electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an 8-bit resolution, allowing for precise analogue voltage generation.
It includes 4 analogue voltage output channels for multi-signal generation.
The device operates over a supply voltage range of 2.7V to 5.5V.
It utilizes a Serial-I2C interface, simplifying integration with microcontroller-based systems.
The compact QFN package measures 5mm x 5mm x 1mm.
It provides a fast settling time of 7.8 microseconds, ensuring low-latency conversion.
The operating temperature range is from -55°C to 125°C, enabling reliable performance in demanding environments.
Yes, it includes non-volatile EEPROM memory for data retention, allowing consistent operation after power cycles.
It features a resistor ladder architecture, which is typical for DACs to convert digital signals to analogue.
Typical use cases include sensor calibration, waveform generation, and precision control systems in manufacturing and laboratory equipment.
This model has a total of 20 pins in its QFN package.
The maximum operating temperature is 125°C, allowing it to function in high-temperature environments.
