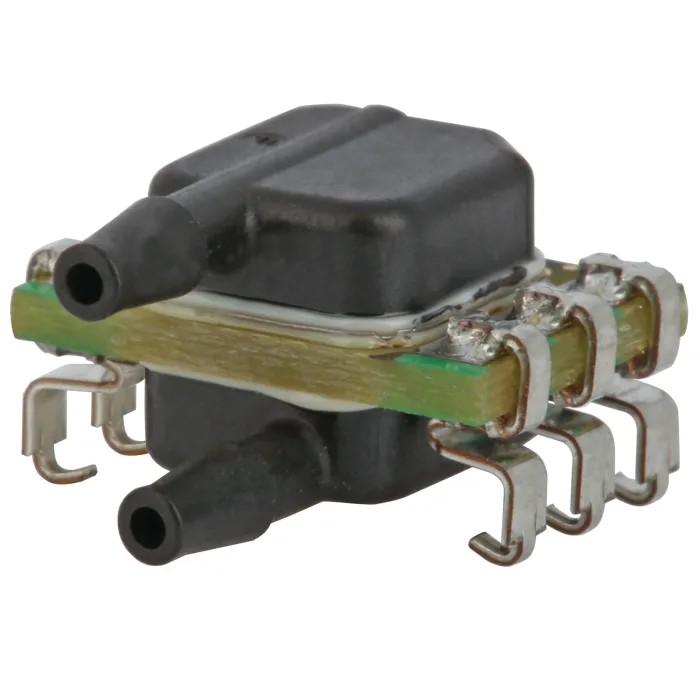

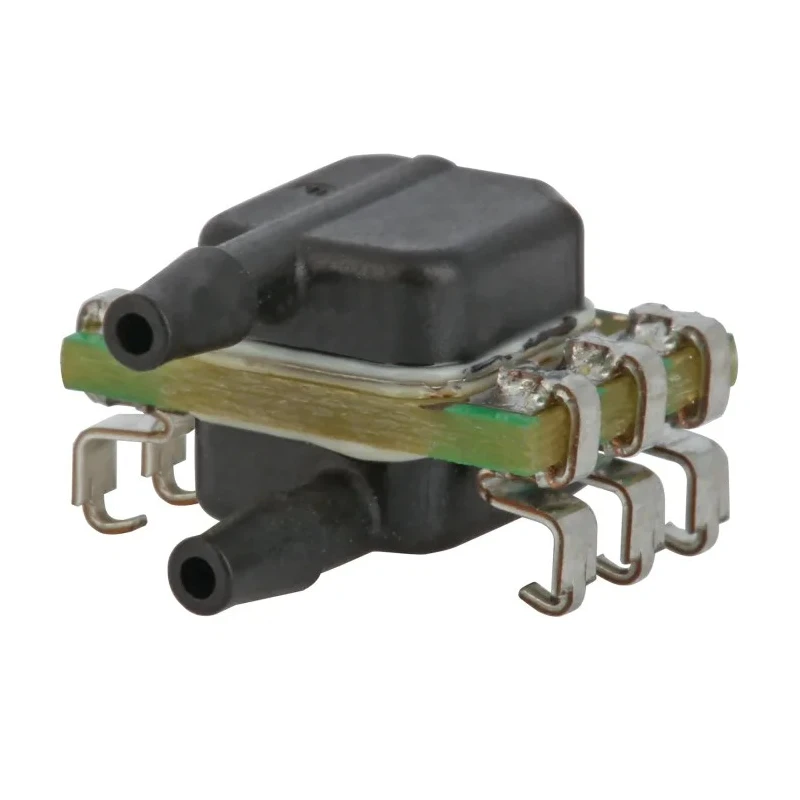

Honeywell Piezoresistive Pressure Sensor Through Hole DIP Package 6 Pin 1.8-3.6V Accuracy ±0.25% ABP2DRRT001PDAA3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 100 kPa |
| Height | 7mm |
| Length | 7.3mm |
| Model | ABP2DRRT001PDAA3XX |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 16bar |
Key Features
- This sensor provides an accuracy of ±0.25% over its full scale.
- Compatible with supply voltages ranging from 1.8V to 3.6V.
- Measures pressures up to 100 kPa with a maximum overload pressure of 16 bar.
- Operating temperature range extends from -40°C to 110°C ensuring versatility.
- Features dual radial barbed ports for easy pressure input connections.
- A compact form factor with dimensions approximately 7.3mm length, 6.3mm width, and 7mm height.
- Designed for robust long-term stability with minimal signal drift.
- Compliant with RoHS standards for environmental safety.
Product Description
Honeywell ABP2DRRT001PDAA3XX is a piezoresistive silicon pressure sensor designed for accurate pressure measurement within a compact through-hole DIP 6-pin package. Operating at supply voltages from 1.8V to 3.6V, it supports a maximum operating pressure of 100 kPa and can withstand overload pressures up to 16 bar. The sensor's accuracy is tightly controlled at ±0.25%, making it suitable for precise industrial and laboratory applications.
Engineered with dual radial barbed ports, this sensor facilitates reliable and easy connection to pressure sources. Its compact dimensions of 7.3mm (L) x 6.3mm (W) x 7mm (H) allow integration into dense PCB layouts, optimizing space utilization.
The device operates reliably over a wide temperature range from -40°C to 110°C, with long-term stability rated as low as ±0.2% full scale span. These attributes make it suitable for use in industrial instrumentation, HVAC systems, and process control environments where accurate pressure monitoring is critical.
Compliance with RoHS directives ensures environmentally responsible manufacturing, promoting safer disposal and handling. This sensor features ±0.25% accuracy for precise pressure readings. Wide operating temperature range from -40°C to 110°C supports varied environments.
Dual radial barbed ports enable secure pressure connections. Compact DIP package suitable for dense PCB designs. Robust long-term stability for consistent performance over time. Maximum supply voltage up to 3.6V ensures compatibility with common power sources.
Overload pressure of 16 bar protects against pressure spikes. Environmentally compliant with RoHS standards.
This pressure sensor is ideal for applications in industrial measurement, laboratory instrumentation, HVAC systems, and other environments requiring reliable and precise pressure sensing.
Explore more Pressure Sensor ICs and related Honeywell products within the EnvMart industrial electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 100 kPa, with a maximum overload pressure of 16 bar.
This model provides an accuracy of ±0.25% over its full scale.
It operates over a temperature range from -40°C to 110°C.
The sensor has dimensions of approximately 7.3mm in length, 6.3mm in width, and 7mm in height.
It is equipped with dual radial barbed ports for easy and reliable pressure connections.
The sensor operates with supply voltages ranging from 1.8V to 3.6V.
This model uses a through-hole mounting type.
Yes, it is compliant with RoHS standards for environmental safety.
The minimum operating pressure is 600 Pa.
This sensor has a pin count of 6.
It is suitable for industrial measurement, laboratory instrumentation, HVAC systems, and process control environments.
This model belongs to the ABP2 series of pressure sensors.
