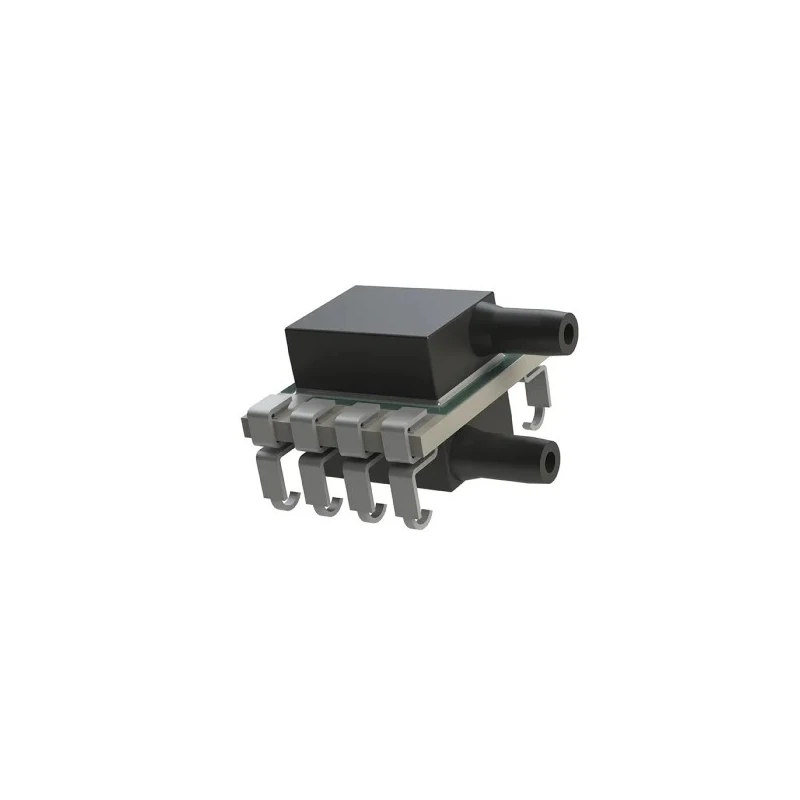

Bourns Analogue Low Pressure Gauge Sensor Surface Mount 8 Pin 0.15 to 1 psi BPS110-AD01P0-2DG
Specifications
| Country of Origin | United States |
|---|---|
| Accuracy | 0.25 %FS |
| Brand | Bourns |
| Height | 3.6mm |
| Length | 12.7mm |
| Model | BPS110-AD01P0-2DG |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Surface |
| Series | BPS110 |
| Maximum Operating Temperature | 85°C |
| Port Type | Horizontal, Dual |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Media Compatibility | non-corrosive dry gases |
| Standards/Approvals | RoHS3 Directive 2015/863 |
| Maximum Output Voltage | 4.5V |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Minimum Output Voltage | 500mV |
| Minimum Operating Pressure | 0.15psi |
| Maximum Overload Pressure | 1psi |
| Extreme sensitivity and stability | Total Error Band of 1.5 % FS over a temperature range of 0 °C to +60 °C (Six-Sigma process) |
| Ultra-low sensing | 0.15 PSI to 1.0 PSI (10 mbar to 70 mbar) |
| Lifetime drift | 0.5 % FS |
Key Features
- The sensor offers ultra-low pressure sensing from 0.15 psi to 1.0 psi for high precision.
- It features a total error band of 1.5% full scale over 0°C to +60°C providing excellent sensitivity and stability.
- Lifetime drift is minimized to 0.5% full scale for long-term reliability.
- Compatible with non-corrosive dry gases ensuring wide applicability.
- Offers analog and digital (I2C) output options, allowing flexible integration.
- Designed with active temperature compensation for stable performance.
- The device has a compact surface mount footprint with 8 pins and a height of 3.6 mm, length 12.7 mm.
- Operating voltage range is 2.7V minimum to 5.5V maximum, with output voltages from 500 mV to 4.5 V.
Product Description
Bourns BPS110-AD01P0-2DG analogue low pressure gauge sensor provides precision measurement capability with a surface mount package and 8 electrical pins. It senses pressures from 0.15 psi to 1 psi with a high accuracy of 0.25% full scale. The sensor’s total error band remains within 1.5% over 0°C to 60°C, ensuring stability for sensitive industrial measurements. Its lifetime drift of 0.5% full scale ensures long-term reliability in monitoring applications.
Designed for non-corrosive dry gases, the sensor supports both analog and I2C digital outputs, offering design flexibility in integration with electronic control systems. Active temperature compensation further enhances measurement fidelity across a broad temperature range from -40°C to 85°C.
Its compact surface mount format (3.6 mm height, 12.7 mm length) and horizontal dual port make it ideal for space-constrained PCB layouts. Compliance with RoHS3 Directive 2015/863 reflects environmental responsibility.
Typical applications include portable oxygen generators, nebulizers, CPAP devices, diagnostic spirometers, gas chromatography equipment, facility ventilation systems, industrial process control, HVAC control, pneumatic instrumentation, and flow calibrators. It is suitable for medical, industrial, laboratory, and HVAC sectors requiring ultra-low pressure sensing.
The sensor provides ultra-low pressure sensing with high accuracy and stability. Designed with lifetime stability and low drift for dependable monitoring. Offers analog and digital output options, enhancing design flexibility.
Compact surface mount package suitable for dense PCB layouts. Compatible with non-corrosive dry gases and operates reliably over -40°C to 85°C. Meets RoHS3 environmental standards. Explore more Pressure Sensor ICs and precision sensing solutions in the Electronics & Electricals category at EnvMart for your industrial and medical instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers an ultra-low pressure sensing range from 0.15 psi to 1.0 psi (10 mbar to 70 mbar).
The accuracy of the BPS110-AD01P0-2DG is 0.25% full scale (FS).
It offers both analog and digital (I2C) output options for flexible integration with electronic systems.
The sensor operates within a temperature range of -40°C to 85°C.
The total error band remains within 1.5% full scale over a temperature range of 0°C to +60°C.
This sensor has a height of 3.6 mm and a length of 12.7 mm, making it suitable for compact PCB layouts.
The maximum supply voltage for the BPS110-AD01P0-2DG is 5.5V.
No, this sensor is designed for use with non-corrosive dry gases only.
The lifetime drift for this model is minimized to 0.5% full scale, ensuring long-term reliability.
This sensor features a total of 8 pins.
It complies with the RoHS3 Directive 2015/863, reflecting environmental responsibility.
Typical applications include portable oxygen generators, nebulizers, CPAP devices, and industrial process control.
