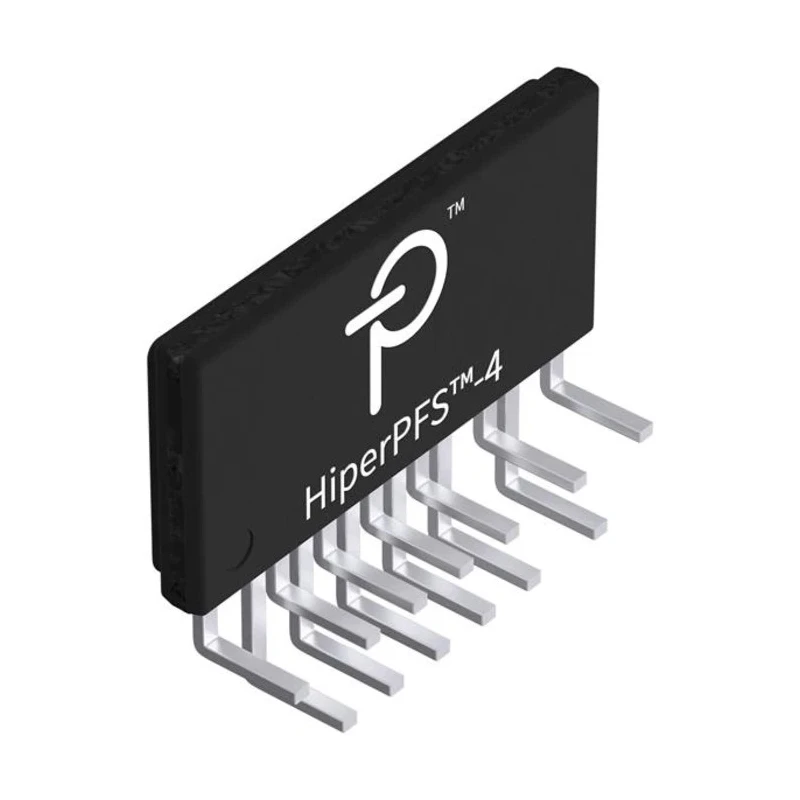

Power Integrations Power Factor Correction Controller 60 kHz 16-Pin eSIP 12V PFS7723H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 1.96mm |
| Length | 16mm |
| Model | PFS7723H |
| Mount Type | Surface |
| Series | PFS7723H |
| Maximum Operating Temperature | 150°C |
| Package Type | eSIP |
| Sub Type | Power Factor Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 60kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 5V |
| Supply Current | 23A |
| Protection features include | UVLO, UV, OV, OTP, brown-in/out, cycleby-cycle current limit and power limiting for overload protection |
Key Features
- Optimized for high power factor and efficiency across load ranges.
- Integrated 600 V MOSFET transistor and diode in a low-profile power package.
- Eliminates need for external current sense resistors, reducing power loss.
- Features programmable Power Good signal and digital line peak detection.
- Offers robust performance even with distorted input voltages from UPS or generators.
- Spread-spectrum operation simplifies EMI filtering across a 60 kHz window.
- Comprehensive protection features including UVLO, overvoltage, undervoltage, over-temperature, and cycle-by-cycle current limiting.
- Withstands steady-state 305 VAC and abnormal 410 VAC input voltages.
Product Description
Power Integrations PFS7723H is a state-of-the-art power factor correction (PFC) controller designed for advanced power management applications. Featuring a switching frequency of 60 kHz and housed in a compact 16-pin eSIP package, this controller supports a supply voltage range of 5V minimum to 12V maximum. The integrated 600 V MOSFET transistor and diode option enable a single low-profile power package ideal for optimizing power factor and efficiency across varying load ranges.
This device eliminates the need for external current sense resistors, significantly reducing associated power loss. Its innovative control technique dynamically adjusts switching frequency based on output load, input line voltage, and line cycle, ensuring efficient power conversion.
Additional functionality includes a programmable Power Good (PG) signal and digital line peak detection mechanism, which maintains robust performance during distorted input voltage conditions typical of UPS systems or generators. The spread-spectrum operation across more than a 60 kHz window eases electromagnetic interference (EMI) filtering requirements.
Optimized high power factor and efficiency across load ranges. Integrated 600 V MOSFET transistor and diode. No external current sense resistors required, reducing power loss. Programmable Power Good output. Digital line peak detection for UPS and generator input robustness.
Spread-spectrum operation simplifies EMI filtering. Protection features including UVLO, overvoltage, undervoltage, over-temperature, cycle-by-cycle current limit, and power limiting for overload protection. High voltage withstand capability: 305 VAC steady-state, 410 VAC abnormal.
This PFC controller is ideal for industrial, commercial, and electronic power supply applications requiring efficient power factor correction and robust system protection. Its compact size and integrated features facilitate advanced power supply designs in electronics manufacturing, HVAC systems, and power management solutions.
Explore more advanced Power Management ICs and controllers in our Power Management IC category to find complementary components for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PFS7723H operates at a switching frequency of 60 kHz.
It supports a supply voltage range from a minimum of 5V to a maximum of 12V.
This model has a height of 1.96 mm and a length of 16 mm.
It is housed in a compact 16-pin eSIP package.
The PFS7723H includes protection features such as UVLO, overvoltage, undervoltage, over-temperature, and cycle-by-cycle current limiting.
The maximum operating temperature is 150°C.
The minimum operating temperature is -40°C.
The supply current for this controller is rated at 23A.
This model is designed for surface mounting.
The programmable Power Good signal helps to indicate the operational status of the power supply, ensuring reliable performance.
It maintains robust performance even with distorted input voltages typically found in UPS systems or generators.
This power factor correction controller is ideal for industrial, commercial, and electronic power supply applications requiring efficient power factor correction.
