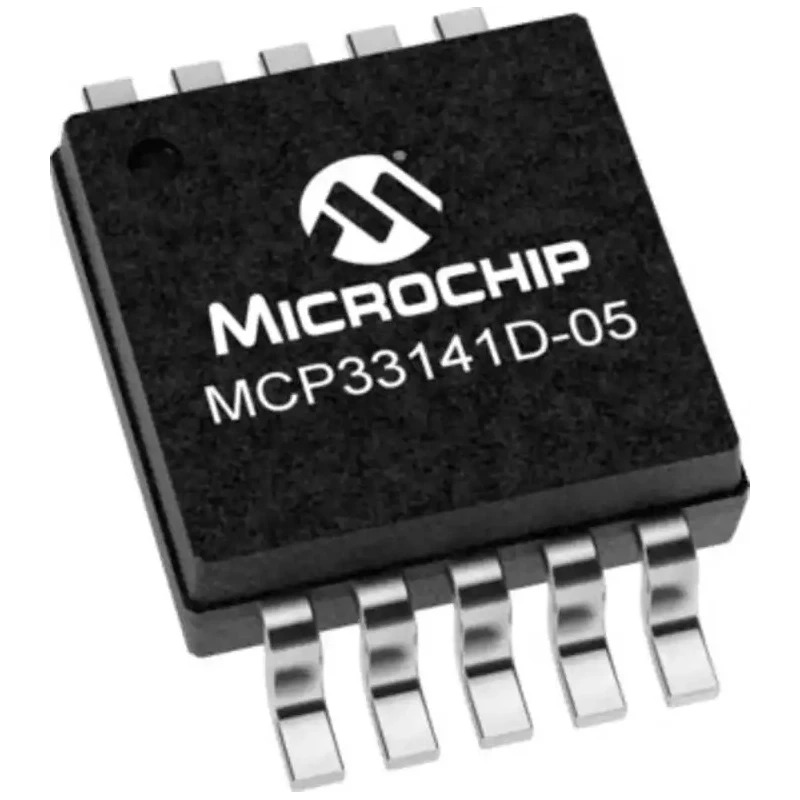

Microchip 14-bit 1-Channel Analog-to-Digital Converter 500ksps Serial Interface 10-Pin Surface Mount MCP33141D-05-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 14 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP33141D-05-E/MS |
| Mount Type | Surface |
| Sampling rate | 500ksps |
| Series | MCP33151/41-XX |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial |
| Architecture | SAR |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 10 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Number of ADCs | 1 |
Key Features
- Features successive approximation register (SAR) architecture for fast and accurate ADC conversion.
- Operates with a single-ended input and supports a serial SPI interface.
- Designed for low power consumption with typical active current of 0.33mA.
- Compact 10-pin surface mount package ideal for space-constrained applications.
- Absolute operating temperature range from -40°C to 125°C for automotive and industrial use.
- Maximum supply voltage of 5.5V with minimum supply voltage of 1.7V.
- Meets automotive standard AEC-Q100 for high reliability in harsh environments.
- Applications include high-precision data acquisition, medical instruments, motor control, and battery management systems.
Product Description
The Microchip MCP33141D-05-E/MS is a 14-bit precision Analog-to-Digital Converter (ADC) featuring a high sampling rate of 500 kilo samples per second (ksps) with a 10-pin surface mount package. It uses a SAR (Successive Approximation Register) architecture that delivers fast and accurate conversions suitable for a variety of demanding applications.
This ADC supports a single-ended input and interfaces via a standard serial SPI, allowing easy integration with PIC® microcontrollers and other digital systems. Its compact size with dimensions 3mm (length) x 1.1mm (height) makes it ideal for applications where PCB real estate is limited.
With an operating temperature range from -40°C to 125°C, this device meets the rigorous automotive AEC-Q100 standard, ensuring reliability in harsh environmental and electromagnetic conditions. The supply voltage range is wide, from 1.7V to 5.5V, accommodating various system power requirements while maintaining low power consumption, drawing only 0.33mA active current and a minimal 1.5μA in standby.
Common industrial applications for the MCP33141D-05-E/MS ADC include medical instrumentation, motor control systems, electric vehicle battery management, and switch-mode power supplies. It excels in both industrial and automotive environments demanding durable, high-performance data acquisition solutions.
Successive Approximation Register (SAR) architecture provides accurate, high-speed ADC conversions. Single-ended input with serial SPI interface for easy system integration. Low power consumption with active current at 0.33mA and standby at 1.5μA.
Compact 10-pin surface mount package suitable for space-saving designs. Wide operating temperature range of -40°C to 125°C for industrial and automotive applications. Complies with automotive standard AEC-Q100 for robust performance.
Supply voltage range from 1.7V to 5.5V. Ideal for high-precision data acquisition, motor control, battery management, and medical devices.
This product is a high-quality data converter designed to meet exacting specifications in industrial and automotive use cases. For more industrial-grade semiconductor devices and components, explore the Electronics category at EnvMart.
Explore more products in our Analogue to Digital Converter category.
