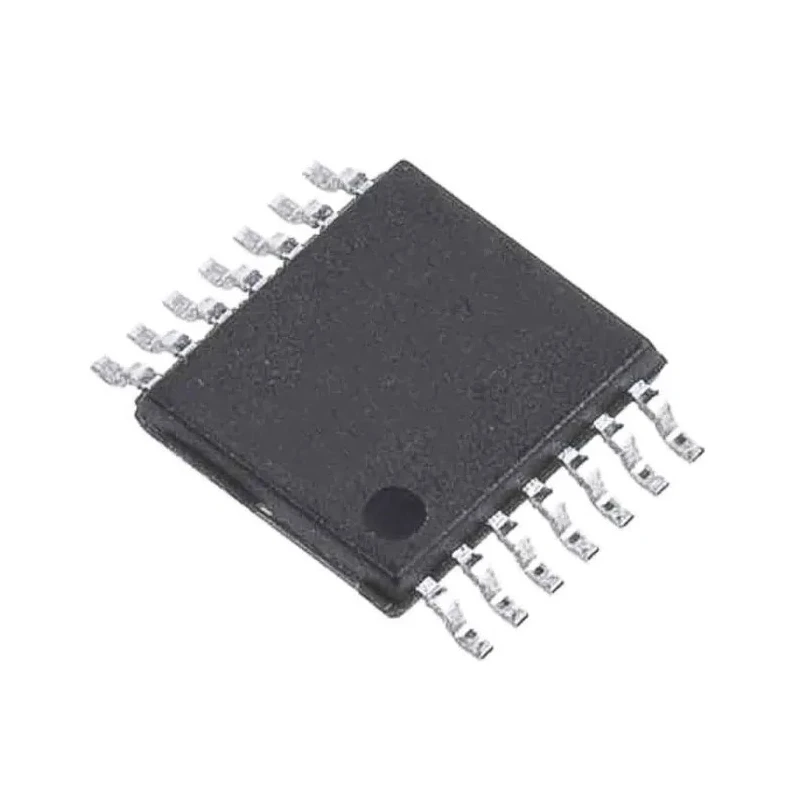

STMicroelectronics Operational Amplifier 14-Pin TSSOP LM2902YPT

STMicroelectronics LM2902YPT Operational Amplifier is a high-performance, quad op amp integrated circuit in a compact 14-pin TSSOP package. It is engineered for automotive and industrial control systems that require reliable operation under wide temperature and voltage ranges.

The device integrates four independent, internally frequency compensated operational amplifiers capable of operation from single power supplies ranging from 3 V to 30 V or split supplies from ±1.5 V to ±15 V. Its wide gain bandwidth of 1.3 MHz and large voltage gain of 100 dB make it suitable for precision amplification tasks. The device features low supply current consumption of only 375 μA per amplifier, ensuring efficient power usage.

Additional electrical characteristics include a low input bias current of 20 nA and offset current of 2 nA, allowing for minimized signal distortion and enhanced accuracy. The input common-mode voltage range extends to include the negative rail, expanding design flexibility within electronic circuits.

Designed to meet the stringent AEC-Q100 automotive standard, LM2902YPT can reliably operate in harsh and varying environmental conditions, supported by an operating temperature range from -40°C to 125°C. The unit’s physical footprint is minimized with a TSSOP package measuring 5.1 mm by 4.5 mm by 1.05 mm, facilitating space-constrained PCB designs.

This Operational Amplifier package contains four independent amplifiers optimized for automotive and industrial control applications. Wide power supply range supports both single and dual supply configurations. High gain bandwidth enables fast and accurate signal processing.

Low power consumption enhances system efficiency. Extensive operating temperature range suits demanding environments. Robust AEC-Q100 certification ensures automotive grade reliability. Compact 14-Pin TSSOP package ideal for modern electronic assemblies.

This product is well suited for industrial automation, automotive electronics, instrumentation, and various control systems requiring reliable amplification. Browse the Electronics & Electricals category on EnvMart to explore similar semiconductor amplifiers and components.
