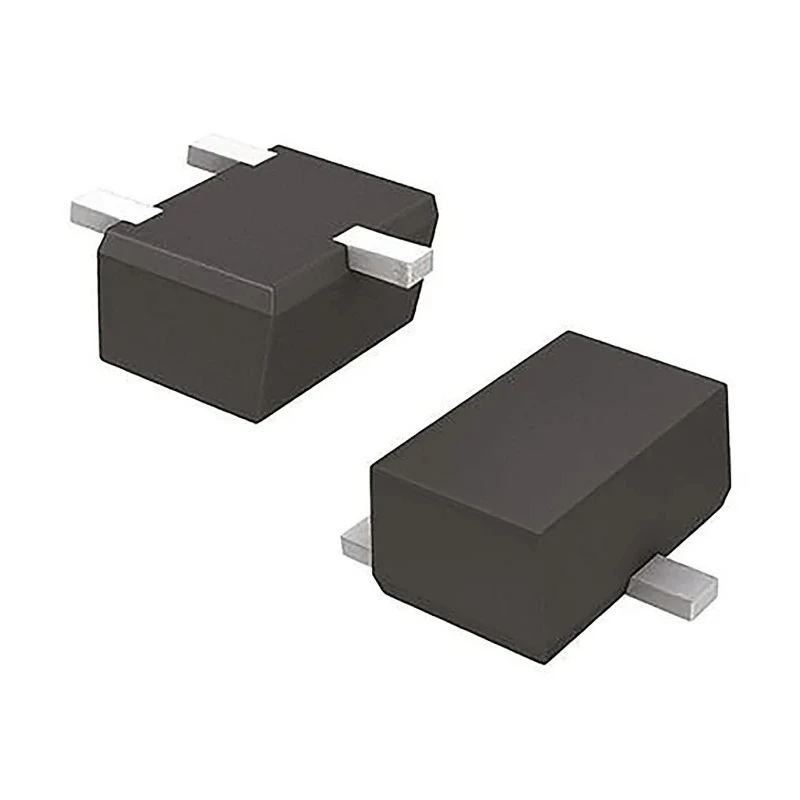

ROHM Digital Transistor 50 V NPN Surface Mount SOT-723 Package 3-Pin DTC014EMT2L

ROHM DTC014EMT2L is a Digital Transistor designed for efficient and direct interfacing with digital circuits, featuring integrated bias resistors to simplify circuit design and reduce component count. Packaged in the compact SOT-723 form factor, this NPN transistor supports a maximum collector-emitter voltage of 50 volts and a maximum power dissipation of 150 milliwatts, making it suitable for low-power switching and amplification tasks.

The transistor provides a minimum DC current gain of 30, ensuring consistent performance in signal control and switching applications. The device configuration is common emitter with NPN polarity, delivering reliable operation in a variety of electronic circuits.

Physical package dimensions of 1.3 mm length, 0.9 mm width, and 0.55 mm height, combined with surface mount technology (SMT) compatibility, make it ideal for compact and automated assembly processes.

This transistor is suitable for industrial, electronic component manufacturing, and consumer electronics applications, often used in signal amplification, digital switching, and interface level conversion circuits. Its operating temperature range up to 150°C allows function in demanding thermal conditions.

The integrated resistor design enhances circuit efficiency by eliminating the need for external base resistors, facilitating direct driving from microcontroller and logic outputs. Compact 3-pin SOT-723 package suitable for surface mounting.

Maximum collector-emitter voltage of 50 V supports robust operation. Minimum DC current gain (hFE) of 30 ensures reliable signal amplification. Maximum power dissipation rating of 150 mW for efficient thermal management.

Integrated resistors allow drive from digital sources without external components. Designed for operation up to 150°C for high-temperature environments. Common emitter configuration with NPN polarity for versatile circuit applications.

Physical dimensions: length 1.3 mm, width 0.9 mm, height 0.55 mm. Explore our electronics and semiconductor category for more related components on EnvMart.
