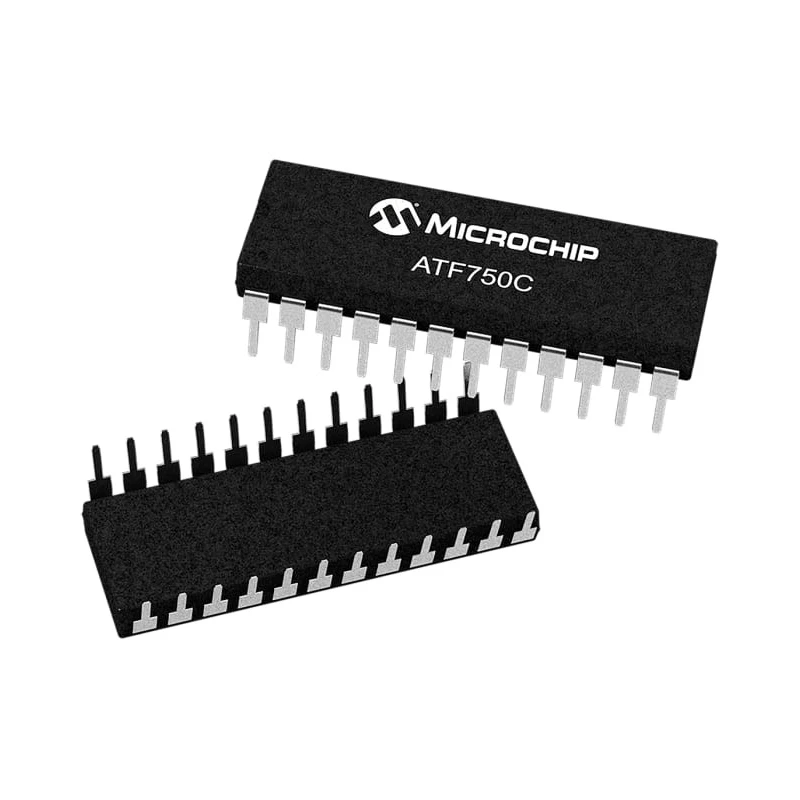

Microchip Complex Programmable Logic Device ATF750C-10PU EEPROM 10 Cells, 10 I/O, 10 ns In System ATF750C-10PU
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 32.13mm |
| Model | ATF750C-10PU |
| Mount Type | Through Hole |
| Memory type | EEPROM |
| Series | ATF750C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 10ns |
| Maximum Operating Frequency | 90MHz |
| Number of Macro Cells | 10 |
| Number of User I/Os | 10 |
Key Features
- This device features EEPROM memory type for reliable data retention.
- Supports through hole mount type for easy PCB integration.
- Operates between supply voltages of 4.5V to 5V.
- Maximum operating temperature is 85 degrees Celsius ensuring stable performance.
- Has a pin count of 24 pins suitable for PDIP package type.
- Individual output enable control is available for flexible configuration.
- Maximum operating frequency is 90 MHz for high-speed logic applications.
- Re-programmability support allows device reuse and updating of logic.
Product Description
Microchip ATF750C-10PU is a Complex Programmable Logic Device (CPLD) featuring 10 macro cells and 10 user input/output pins. It utilizes EEPROM memory type enabling non-volatile storage and in-system programmability to facilitate flexible circuit design modifications. The device is housed in a PDIP package with a pin count of 24, supporting through hole mounting for straightforward integration into printed circuit boards.
Operating within a voltage range of 4.5V to 5V and capable of withstanding temperatures from -40°C to a maximum of 85°C, this CPLD provides reliability under varying environmental conditions. The maximum propagation delay time of 10 nanoseconds and a maximum frequency of 90 MHz make it suitable for time-critical electronic switching and logic functions.
With individual output enable control and re-programmability support, the ATF750C-10PU enables engineers to create adaptable custom logic designs, ideal for industrial, commercial, and laboratory electronic applications. Its compliance with no specific automotive standards indicates its targeted use in general electronic device manufacturing rather than automotive systems.
This device features EEPROM memory type for reliable data retention. Supports through hole mount type for easy PCB integration. Operates between supply voltages of 4.5V to 5V. Maximum operating temperature is 85 degrees Celsius ensuring stable performance.
Has a pin count of 24 pins suitable for PDIP package type. Individual output enable control is available for flexible configuration. Maximum operating frequency is 90 MHz for high-speed logic applications. Re-programmability support allows device reuse and updating of logic.
Designed for industrial and electronic applications requiring programmable logic. It serves a wide range of electronic design and manufacturing purposes, including prototyping and development of programmable logic circuits.
Explore our comprehensive Electronics & Electricals category on EnvMart for additional semiconductor and programmable logic IC solutions from trusted brands.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 90 MHz, making it suitable for high-speed logic applications.
It operates within a supply voltage range of 4.5V to 5V.
This device features 10 macro cells, allowing for flexible logic design configurations.
It utilizes EEPROM memory type, which provides reliable data retention and supports in-system programmability.
The ATF750C-10PU has a pin count of 24 and is housed in a PDIP package type.
The operating temperature range is from -40°C to a maximum of 85°C, ensuring stable performance under varying conditions.
Yes, it features individual output enable control for flexible configuration of the device.
The maximum propagation delay time is 10 nanoseconds, suitable for time-critical applications.
This model supports through hole mounting, facilitating easy integration into printed circuit boards.
It is designed for industrial and electronic applications requiring programmable logic, including prototyping and development of circuits.
The country of origin for this device is Taiwan.
The device has 10 user input/output pins, allowing for versatile connections in circuit designs.
