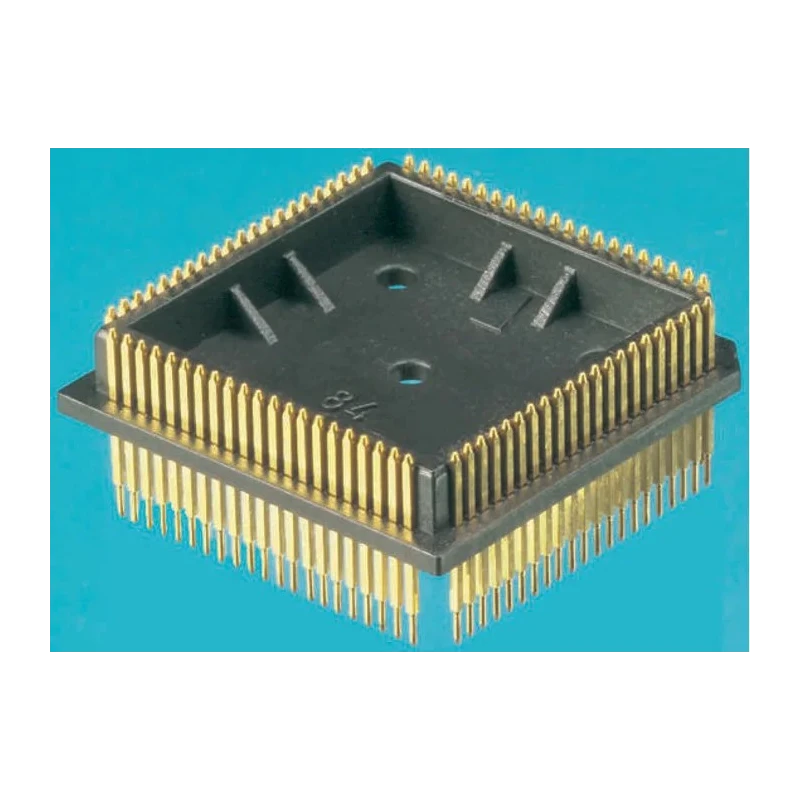

Winslow 1.27 mm Pitch 84 Way Through Hole PLCC Socket W9306

Winslow W9306 is a premium quality PLCC socket featuring 84 contact points spaced at a 1.27 mm pitch, making it ideal for precision electronic applications requiring through hole mounting. Constructed with phosphor contacts plated with gold over nickel, it provides high durability and excellent electrical conductivity. The straight orientation design aids in easy assembly and integration with printed circuit boards, ensuring reliable interconnections.

The socket’s fibreglass housing ensures mechanical robustness while maintaining electrical insulation, suitable for demanding operating environments ranging from -55°C to 105°C. Termination is designed for soldering, facilitating secure and lasting connections on the board.

This PLCC socket supports device mount type surface technology and socket mount type through hole, enabling versatility in PCB configurations. Its robust design supports up to 500 mating cycles, ideal for testing, emulation modules, and daughter board applications in industrial, laboratory, manufacturing, and electronic assembly use cases.

Manufactured in the United Kingdom, this component adheres to high quality standards, although it does not feature additional certifications. The socket is typically used for IC socketing applications, supporting complex integrated circuit packaging and debugging tasks with consistency and durability.

Equipped with phosphor contact material and gold plating for enhanced conductivity and longevity. Fibreglass housing ensures solid mechanical structure and electrical insulation. Designed for through hole mounting with a 1.27 mm contact pitch.

Suitable for applications requiring operation in a wide temperature range from -55°C to 105°C. Compatible with PLCC plugs for building daughter boards or test modules. This product is listed under the IC Socket category at EnvMart for engineers and technicians sourcing reliable electronic components for assembly and prototyping.
