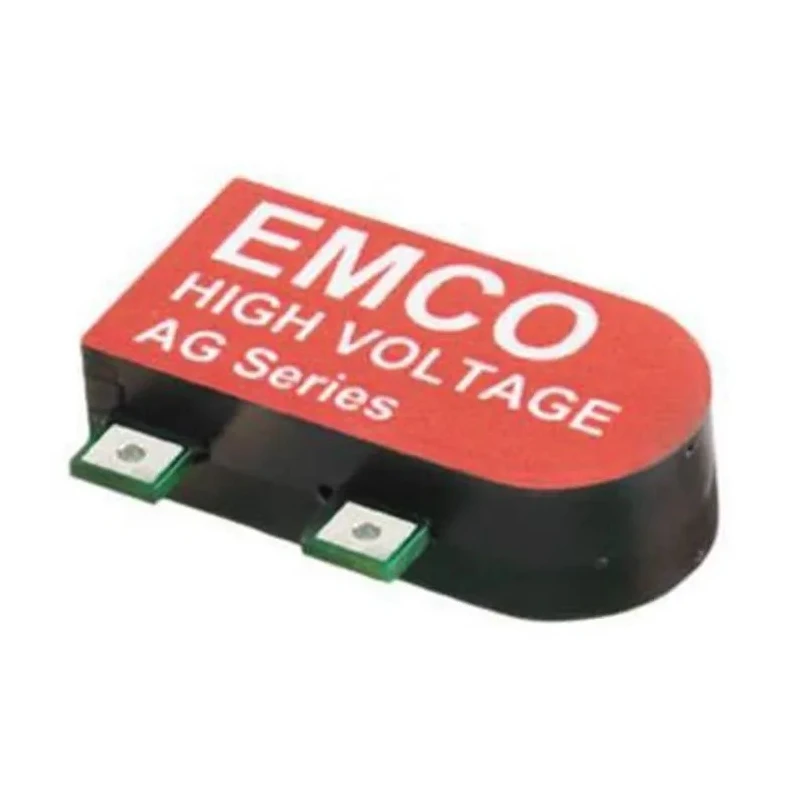

XP Power AG Series Surface Mount DC/DC Converter, 5V DC Input, 500V DC Output, 2mA Output Current, 1W Power, -25°C AG05P-5

XP Power AG05P-5 is a high-voltage, surface mount DC/DC converter designed for precise, compact power conversion applications. It features a 5V DC input with a 500V DC output capable of delivering 2mA output current at 1W power rating. Operating reliably over a temperature range from -25°C to 75°C, this converter suits diverse industrial, laboratory, and electronic component applications requiring galvanic isolation and low noise.

The AG series offers galvanic input to output isolation with a minimum rating of 500V, ensuring electrical separation and safety. The ultra-miniature surface mount package measuring 23.37mm length, 17.53mm width, and 6.35mm depth makes it ideal for high-density PCBs and size-restricted environments.

This DC/DC converter incorporates a quasi-sinewave oscillator, low output/input capacitance, and low leakage current control pin, enhancing efficiency and reducing interference. It requires no external components and provides one minute minimum short circuit protection, as well as no minimum load requirement, simplifying design integration.

Applications for the AG05P-5 include avalanche photodiodes, capacitor charging, electrophoresis, photomultiplier tubes, piezo devices, mass spectrometry, sustaining ion pumps, and other high-voltage sensitive instrumentation in industrial, scientific, and medical fields.

With a mean time between failure (MTBF) of over 1.8 million hours and a weight of only 5.7 grams, the AG05P-5 offers a reliable and lightweight solution. Manufactured in the United States, it meets RoHS and UL standards ensuring compliance and quality assurance.

Compact surface mount package ideal for space-constrained designs. High isolation voltage of 500V ensures reliable galvanic isolation. Low ripple and noise rated at 0.5% peak-to-peak for stable output. Extended operating temperature range from -25°C to 75°C for versatile applications.

Single output providing 2mA current suitable for precision electronics. Built-in short circuit protection supports robust performance. No minimum load required facilitating easy integration. High mean time between failures (MTBF) of approximately 1.86 million hours.
