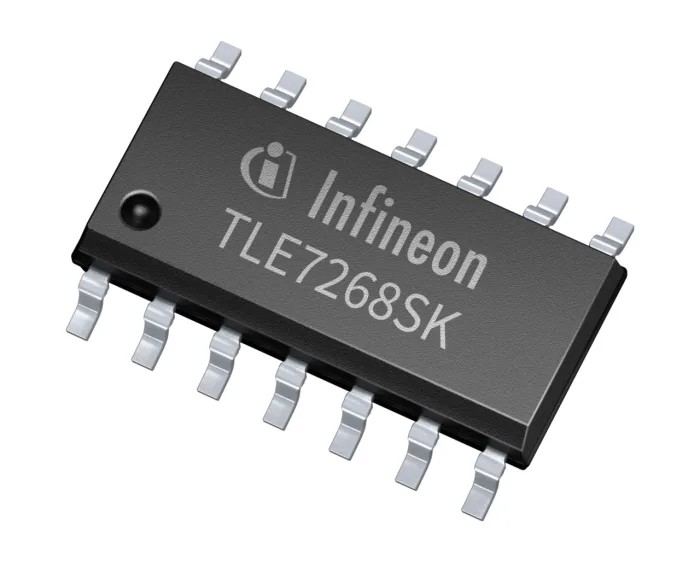

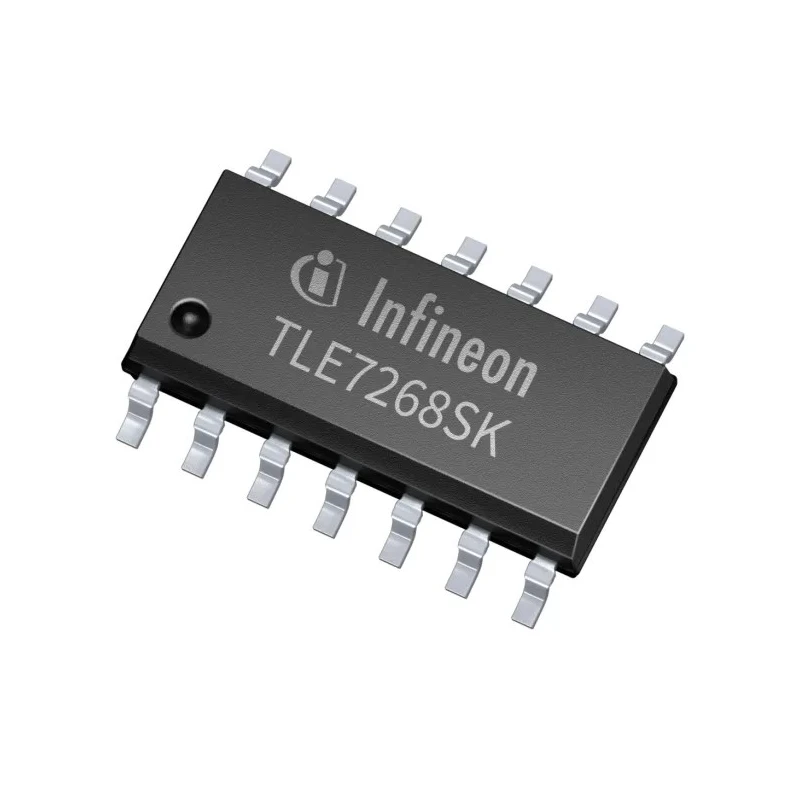

Infineon Dual LIN 2.2 / SAE J2602 Transceiver, 14-Pin DSO, Dual Channel, 5.5V - 18V Supply, 15mA Supply Current TLE7268SKXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 4.5mm |
| Model | TLE7268SKXUMA1 |
| Width | 3mm |
| Series | TLE7268 |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Sub Type | LIN Transceiver IC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SAE J2602, LIN |
| Pin Count | 14 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 5.5V |
| Supply Current | 15mA |
| Number of Transceivers | 2 |
Key Features
- Supports data transmission rates up to 20 kbps for reliable communication.
- Includes two independent transceivers operating as bus drivers for LIN physical networks.
- Operates with supply voltage range from 5.5V to 18V and low supply current of 15mA.
- Features multiple power down modes including normal, standby, and sleep to minimize ECU current consumption.
- Provides excellent electromagnetic compliance and ESD robustness based on BiCMOS technology.
- Equipped with overtemperature protection and undervoltage detection for enhanced reliability.
- AEC qualified and RoHS compliant automotive standard component.
- Compact 14-pin DSO package measuring 4.5mm x 3mm x 1.75mm.
Product Description
The Infineon TLE7268SKXUMA1 is a dual LIN 2.2 / SAE J2602 transceiver designed for automotive Local Interconnect Network (LIN) applications requiring data rates up to 20 kbps. It integrates two independent transceivers, each capable of acting as a bus driver between the protocol controller and physical LIN bus.
This transceiver supports power saving modes with normal, standby, and sleep modes, in sleep mode drawing a quiescent current below 10 µA while remaining responsive to wake-up signals on the LIN bus. It features a common INH output for external circuitry control such as voltage regulators.
Engineered using Infineon's BiCMOS technology, the device provides robust ESD protection and excellent electromagnetic compliance (EMC) performance, ensuring reliability in harsh automotive electrical environments.
Key protective features include overtemperature shutdown and undervoltage detection to safeguard against abnormal operating conditions. The component comes in a 14-pin DSO package with compact dimensions (4.5 mm length, 3 mm width, and 1.75 mm height), suitable for space-efficient PCB designs.
This device complies with automotive standards including AEC qualification and meets IEC 61000-4-2, RoHS, and ISO 17987-4 standards, making it suitable for automotive industry applications requiring reliable and low-power LIN transceivers.
Supports 20 kbps data rate suitable for in-vehicle network communication. Dual independent transceivers for two LIN channels. Low supply current of 15 mA ensures efficient power usage. Multiple power modes minimize ECU consumption.
Robust BiCMOS technology with strong ESD and EMC immunity. Integrated overtemperature and undervoltage protections. Compact DSO 14-pin package for automotive electronics. AEC automotive qualified and RoHS compliant.
This LIN transceiver by Infineon is ideal for automotive, industrial, and electronic applications requiring a high-integrity interface between LIN protocol controllers and physical networks. It enhances communication reliability while reducing power consumption in embedded control units. Explore the full range of CAN and LIN Interface ICs available on EnvMart to support your automotive and industrial electronics projects.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 5.5V to 18V.
It supports data transmission rates up to 20 kbps for reliable communication in LIN networks.
This unit integrates two independent transceivers, allowing it to operate as a dual channel device.
The supply current for this model is 15mA, ensuring efficient power usage.
The package measures 4.5mm in length, 3mm in width, and 1.75mm in height.
It is AEC qualified and complies with RoHS and IEC 61000-4-2 standards, suitable for automotive applications.
The maximum operating temperature is 150°C, while the minimum is -40°C.
It includes multiple power modes: normal, standby, and sleep, which help minimize ECU current consumption.
It supports SAE J2602 and LIN interface types for communication.
Key protective features include overtemperature shutdown and undervoltage detection for enhanced reliability.
This transceiver is suitable for automotive, industrial, and electronic applications requiring reliable LIN communication.
