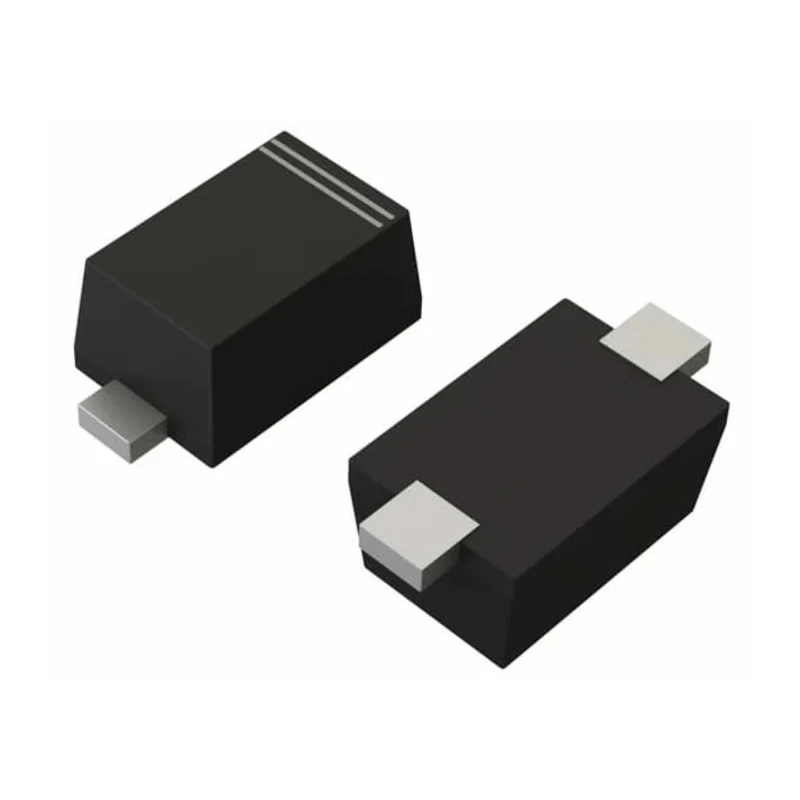

ROHM 60 V 200 mA Schottky Barrier Diode Surface Mount SOD-523-2 RB521SM-60FHT2R
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB521SM-60FHT2R |
| Mount Type | Surface |
| Series | RB521 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-523-2 |
| Minimum Operating Temperature | -55°C |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- This Schottky barrier diode offers a maximum continuous forward current of 200 mA.
- The diode package type is SOD-523-2 suitable for surface mounting.
- It has a peak reverse repetitive voltage rating of 60 V.
- Maximum forward voltage is 0.6 V ensuring efficient rectification.
- The operating temperature range spans from -55°C to 125°C to suit various industrial applications.
- Diode configuration is single, optimized for automotive and general purpose rectification.
- Peak non-repetitive forward surge current reaches up to 1 A for transient conditions.
- Complies with automotive-grade standards but does not have specific certifications or approvals.
Product Description
ROHM RB521SM-60FHT2R is a surface mount Schottky Barrier Diode in the compact SOD-523-2 package, designed to deliver excellent performance with a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 60 V. This diode's low forward voltage drop of 0.6 V ensures reduced power loss and increased efficiency for applications requiring reliable rectification.
The diode is suitable for use in automotive and general industrial environments, operating reliably across a broad temperature range of -55°C to 125°C. Its single diode configuration supports various rectification tasks in electronic circuits and power supplies. The diode also withstands transient conditions with a peak non-repetitive forward surge current of 1 A.
Packaged in SOD-523-2, the diode is designed for surface mounting, making it ideal for high-density PCB layouts in compact electronic assemblies. Although the device does not carry specific regulatory approvals, it meets automotive-grade quality requirements.
This Schottky barrier diode is widely used in industrial, automotive, power supply, and communication equipment applications where efficient, high-speed switching and low forward voltage characteristics are essential. Its rugged design and stable electrical characteristics enhance the performance and longevity of electronic systems.
This Schottky Barrier Diode offers a maximum continuous forward current of 200 mA. The diode package type is SOD-523-2 suitable for surface mounting. It has a peak reverse repetitive voltage rating of 60 V. Maximum forward voltage is 0.6 V ensuring efficient rectification.
The operating temperature range spans from -55°C to 125°C to suit various industrial applications. Diode configuration is single, optimized for automotive and general purpose rectification. Peak non-repetitive forward surge current reaches up to 1 A for transient conditions.
Complies with automotive-grade standards but does not have specific certifications or approvals. Explore similar components and detailed technical resources available for electronic design and manufacturing at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 200 mA.
It has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop is 0.6 V, ensuring efficient rectification.
The operating temperature range spans from -55°C to 125°C.
This diode is packaged in a SOD-523-2 type, suitable for surface mounting.
The peak non-repetitive forward surge current can reach up to 1 A.
It has a single diode configuration, optimized for various rectification tasks.
It is commonly used in automotive, industrial, power supply, and communication equipment applications.
The country of origin for this diode is India.
This diode belongs to the RB521 series.
This model is a Schottky rectifier, known for its low forward voltage drop and fast switching capabilities.
Key features include a maximum continuous forward current of 200 mA, a peak reverse voltage of 60 V, and an operating temperature range of -55°C to 125°C.
