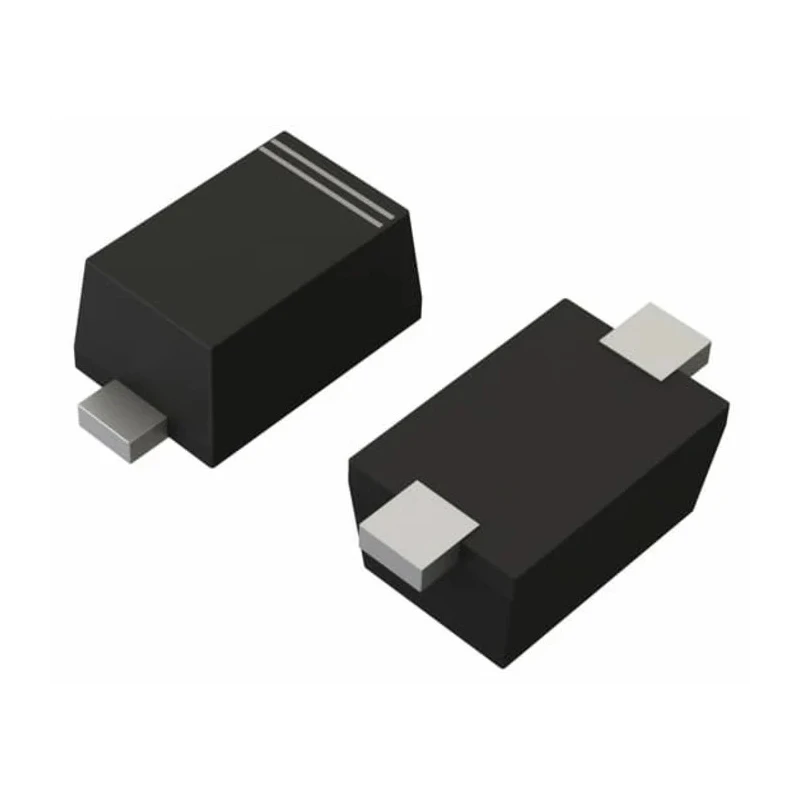

ROHM 60 V 200 mA Schottky Barrier Diode Surface Mount SOD-523-2 RB521SM-60FHT2R
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB521SM-60FHT2R |
| Mount Type | Surface |
| Series | RB521 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-523-2 |
| Minimum Operating Temperature | -55°C |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- The diode features a maximum continuous forward current of 200 mA.
- It has a peak reverse repetitive voltage rating of 60 V.
- The maximum forward voltage drop is rated at 0.6 V for high efficiency.
- Operating temperature ranges from -55°C to 125°C ensuring durability under harsh conditions.
- Peak non-repetitive forward surge current capability up to 1 A.
- Compact surface-mount SOD-523-2 package for space-saving PCB design.
- Single diode configuration tailored for Schottky barrier applications.
- Does not adhere to specific automotive or other certification standards but designed to reliable industrial quality.
Product Description
ROHM RB521SM-60FHT2R is a high reliability Schottky Barrier Diode designed for surface mount applications. Featuring a maximum forward voltage of 0.6 V and capable of handling a continuous forward current of 200 mA, this diode is ideal for automotive and general rectification tasks requiring efficient switching and low power loss.
The diode is housed in a compact SOD-523-2 package, making it suitable for compact and space-constrained printed circuit boards in industrial electronic assemblies. Its operating temperature range from -55°C to 125°C supports use in environments with wide temperature variations, ensuring stable performance in automotive and industrial HVAC, manufacturing, and power supply circuits.
This single diode Schottky device withstands peak reverse repetitive voltages up to 60 V and non-repetitive forward surge currents of 1 A, making it robust against transient load conditions. Although it is not classified under specific automotive standards or certifications, it upholds ROHM’s standard for high-quality semiconductor components.
The diode features a maximum continuous forward current of 200 mA. It has a peak reverse repetitive voltage rating of 60 V. The maximum forward voltage drop is rated at 0.6 V for high efficiency. Operating temperature ranges from -55°C to 125°C ensuring durability under harsh conditions.
Peak non-repetitive forward surge current capability up to 1 A. Compact surface-mount SOD-523-2 package for space-saving PCB design. Single diode configuration tailored for Schottky barrier applications. Does not adhere to specific automotive or other certification standards but designed to reliable industrial quality.
This Schottky Barrier Diode from ROHM is suitable for multiple industrial sectors including electronics manufacturing, power electronics, automotive electronics, and general purpose semiconductor applications. It is ideal for designers needing a low forward voltage drop diode with robust thermal performance in a miniature package.
Explore more semiconductor components and Schottky diodes on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 200 mA.
It has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop is rated at 0.6 V.
The operating temperature range is from -55°C to 125°C.
This diode is housed in a compact SOD-523-2 package.
It can handle a peak non-repetitive forward surge current of up to 1 A.
It uses a single diode configuration tailored for Schottky barrier applications.
This diode belongs to the RB521 series.
It is suitable for multiple industries including electronics manufacturing, power electronics, and automotive electronics.
The country of origin for this diode is India.
This model is a Schottky rectifier type.
It does not adhere to specific automotive or other certification standards but is designed to reliable industrial quality.
