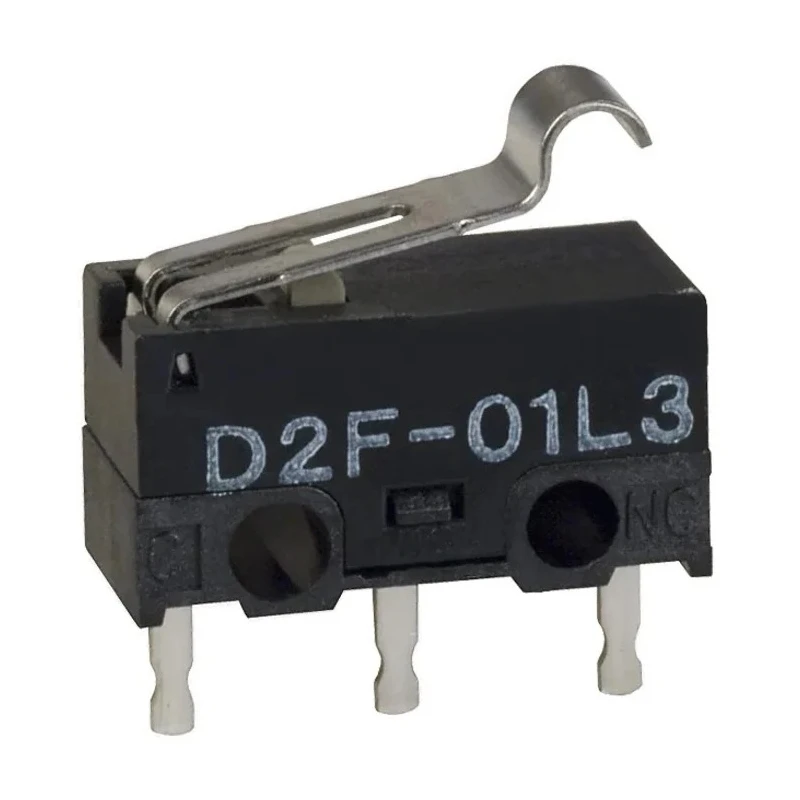

Omron Simulated Roller Lever Micro Switch, PCB Terminal, 100mA, SPDT, IP40 D2F-01L3

Omron D2F-01L3 Simulated Roller Lever Micro Switch is an ultra subminiature switch specifically designed for high load industrial and electronic applications. This micro switch integrates a simulated roller lever actuator and PCB terminal type, optimized for precise switch control and reliability. Rated for a 100mA contact current at 30V DC, it supports SPDT (Single Pole Double Throw) switching with ON-(OFF), OFF-(ON) operation modes.

Its IP40 rating protects against solid foreign objects larger than 1 millimeter, ensuring durability in manufacturing, industrial automation, and electrical projects. The switch employs a snapping mechanism constructed with two high precision split springs to guarantee a long operational life and consistent performance.

Insertion molded terminals prevent flux penetration during soldering, thus maintaining the switch’s reliability in PCB mounting environments. The D2F series offers various terminal options including self-clinching PCB, left-angled, right-angled, and soldering terminals, giving versatility for different circuit board designs.

Common applications include industrial automation systems, control panels, home appliances, HVAC systems, and machinery requiring precise and reliable mechanical switch inputs. Its compact 3mm depth and effective micro-switching capabilities suit dense electronic assemblies and sensitive detection tasks.

Features a simulated roller lever actuator for reliable operation. PCB terminal type ensures secure and stable connection. Switch contact current is rated at 100mA for low power switching. Single Pole Double Throw (SPDT) contact configuration offers versatile switching.

IP40 rating provides protection against solid objects larger than 1mm. Ultra subminiature basic switch series designed for durability and long life. Operates with a snapping mechanism utilizing two precise split springs.

Insertion molded terminals prevent flux penetration, maintaining switch integrity. Available in different terminal types including self-clinching, left-angled, right-angled, and soldering terminals.

The package contains one Omron D2F-01L3 micro switch with PCB terminal and simulated roller lever actuator. This product is made in Japan and supplied new for immediate integration in electrical and electronic projects.
