STMicroelectronics Operational Amplifier Dual Channel 560 MHz Gain Bandwidth SOIC-8 5.5V TSV7722IDT

STMicroelectronics TSV7722IDT is a high-performance operational amplifier designed for industrial and automotive applications requiring high bandwidth and precision. This dual-channel (2-channel) amplifier boasts a gain bandwidth product of 560 MHz, suitable for fast and accurate analog signal amplification.

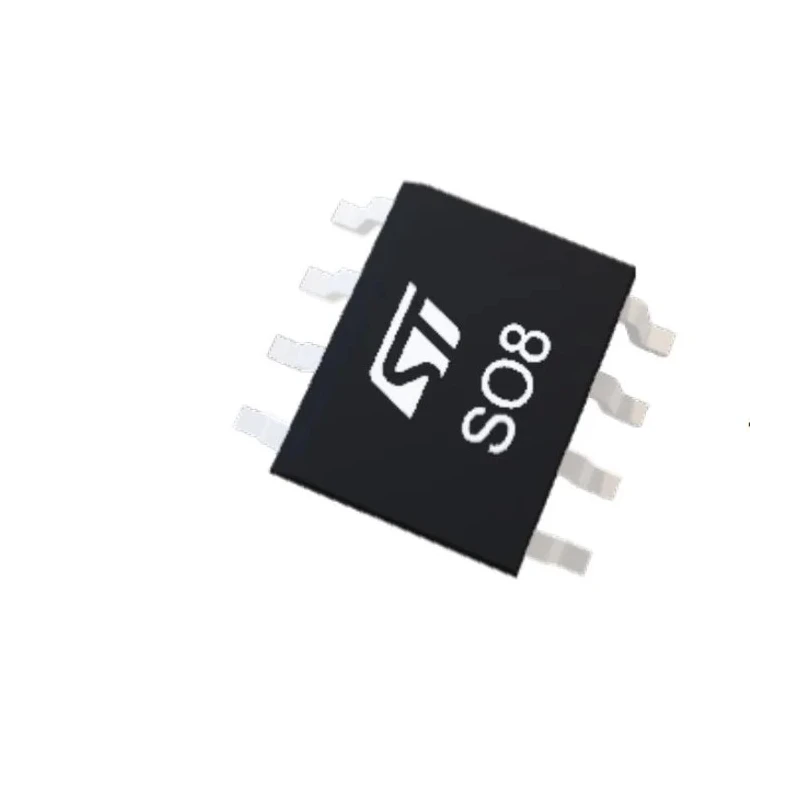

Packaged in an SOIC-8 surface mount device with 8 pins, the TSV7722IDT supports supply voltages ranging from 1.8 V to 5.5 V, allowing versatile usage in battery-powered and industrial power environments. It is optimized for low voltage operation and offers a rail-to-rail output stage, facilitating maximum output voltage swing.

The amplifier features an ultra-low input bias current of 75 pA and a low input offset voltage capped at 200 μV (typical 50 μV), making it ideal for precision sensor interfaces like photodiodes and current sensing circuits. This makes the device well-suited for applications in measurement instrumentation, data acquisition, and automotive electronics.

The device operates reliably in wider temperature ranges from -40 °C to 125 °C, conforming to automotive reliability standards AEC-Q3 and AEC-Q100, thereby ensuring robustness in harsh environments.

With a fast slew rate of 11 V/μs, the TSV7722IDT supports applications that require rapid signal changes without distortion. It is an ideal choice for driving high-speed sensors, data communications, and filtering tasks in industrial automation and HVAC systems.

Wide power supply range (1.8V to 5.5V) enhances application flexibility. Surface mount SOIC-8 package ensures easy PCB integration with a small form factor. Low input bias current is suitable for high-accuracy photodiode and sensor interfaces.

Meets stringent automotive standards providing reliability in vehicle electronics. High slew rate permits accurate signal reproduction of fast transient signals. Rail-to-rail outputs maximize dynamic range in low voltage systems.

Dual channel operation reduces board space and cost in multichannel designs.

This operational amplifier series is extensively used across electronics manufacturing, automotive systems, industrial measurement, and control equipment sectors. Its combination of precision, bandwidth, and ruggedness makes it suitable for demanding applications including medical devices, instrumentation, and sensor signal conditioning.
