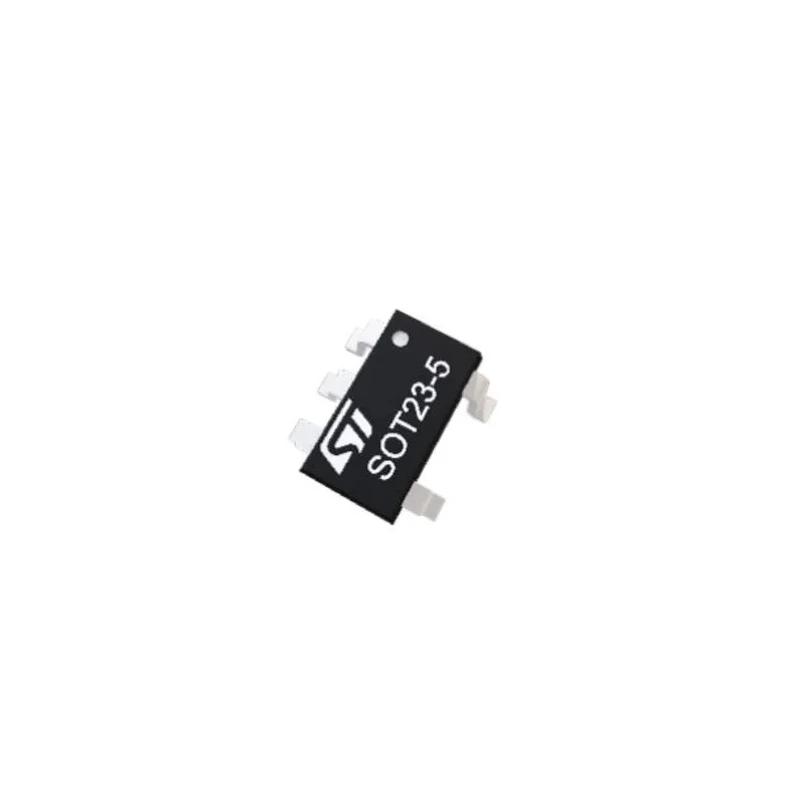

STMicroelectronics Operational Amplifier, 50 MHz Bandwidth, Single Channel, 5-Pin Surface Mount SOT-23, 2.2 to TSV791IYLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSV791IYLT |
| Width | 1.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100, AEC-Q2 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.2V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 20 pA |
Key Features
- The device operates from a single supply voltage range of 2.2 to 5.5 volts.
- It features a 5-pin SOT-23 surface mount package for compact PCB integration.
- Low input bias current and low input offset current improve measurement accuracy.
- High slew rate of 30 V/μs supports rapid signal changes for dynamic applications.
- Engineered for extended temperature range from -40°C to 125°C for reliability under harsh conditions.
- Rail-to-rail input and output stages enable maximum signal swing within supply limits.
- Automotive standards AEC-Q100 and AEC-Q2 compliant ensuring quality and reliability in automotive environments.
- Compact physical dimensions 3 mm length, 1.75 mm width, and 1.45 mm height facilitate space-saving designs.
Product Description
STMicroelectronics TSV791IYLT operational amplifier is a high-performance, single-channel device designed for precision amplification across diverse industrial, automotive, and electronic applications.
With a fixed bandwidth of 50 MHz and a gain bandwidth product that supports rapid signal processing, this amplifier integrates a low input offset voltage of ±700 μV, low input bias current of 75 pA, and a low input offset current of 20 pA, ensuring high accuracy in measurements.
The device is packaged in a compact 5-pin SOT-23 surface mount format, measuring 3 mm in length, 1.75 mm in width, and 1.45 mm in height, making it ideal for dense PCB layouts.
Operating on a single supply voltage from 2.2 V to 5.5 V, the TSV791IYLT features rail-to-rail input and output stages, allowing maximized input and output voltage swings within the supply limits. Its high slew rate of 30 V/μs ensures excellent transient response for fast-changing signals.
Certified to automotive standards AEC-Q100 and AEC-Q2, the amplifier performs reliably over an extended temperature range of -40°C to 125°C, making it suitable for rigorous automotive and industrial environments.
The amplifier is well-suited for applications such as low-side current sensing and buffering analog-to-digital converters. The device supports capacitive loads up to 1 nF and maintains stability with 22 pF loads to facilitate integration.
Compliance with RoHS standards ensures environmental safety. This Operational Amplifier is a dependable solution for precision signal conditioning in industrial electronics, automotive systems, instrumentation, and control equipment.
Discover more electronics components and comprehensive semiconductor solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV791IYLT operational amplifier has a fixed bandwidth of 50 MHz, allowing for rapid signal processing.
It operates from a single supply voltage range of 2.2 V to 5.5 V.
This operational amplifier measures 3 mm in length, 1.75 mm in width, and 1.45 mm in height, making it suitable for compact PCB designs.
The input bias current is 75 pA, which contributes to its measurement accuracy.
The maximum operating temperature is 125°C, allowing it to function reliably in harsh environments.
It complies with automotive standards AEC-Q100 and AEC-Q2, ensuring quality and reliability in automotive applications.
The slew rate is 30 V/μs, which supports rapid signal changes for dynamic applications.
The TSV791IYLT is a single-channel operational amplifier.
The input offset current is 20 pA, which enhances its performance in precision applications.
It comes in a 5-pin SOT-23 surface mount package, suitable for compact PCB integration.
The gain bandwidth product (GBP) is 50 MHz, indicating its capability for high-speed signal processing.
Yes, this operational amplifier complies with RoHS standards, ensuring environmental safety.
