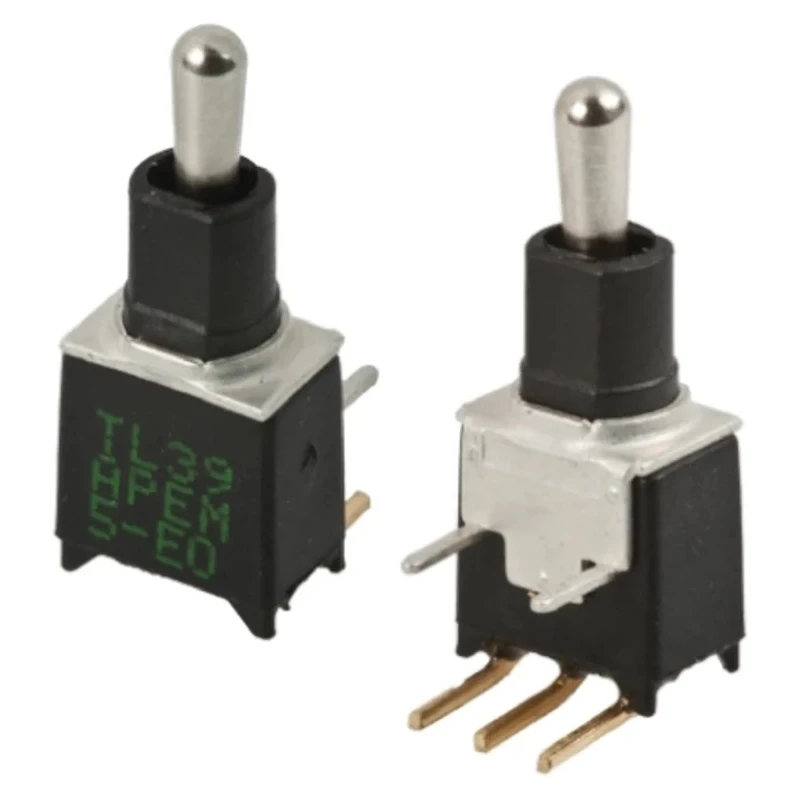

APEM Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 20V dc 20V ac TL39W0050
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 19.58mm |
| Length | 9.6mm |
| Model | TL39W0050 |
| Width | 8.1mm |
| Mount Type | PCB |
| Series | TL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Number of Operations | 60000 (2 pos), 30000 (3 pos) |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 5.3mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
| Minimum load current | 10mA at 50mV - 10μA at 5Vdc |
Key Features
- The toggle switch features a brass actuator with a 5.3mm length.
- It is designed for PCB mounting with through hole gold plated brass terminals.
- Switch configuration is On-Off-On with SPDT contact.
- Sealed construction suitable for immersion cleaning and wave soldering.
- Operating temperature range from -30°C to 85°C.

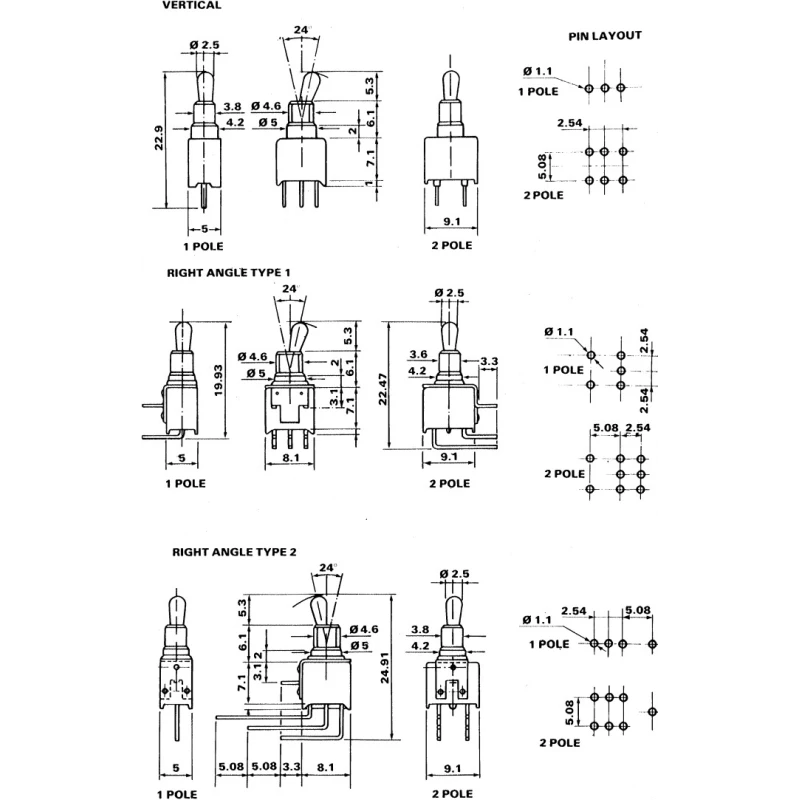

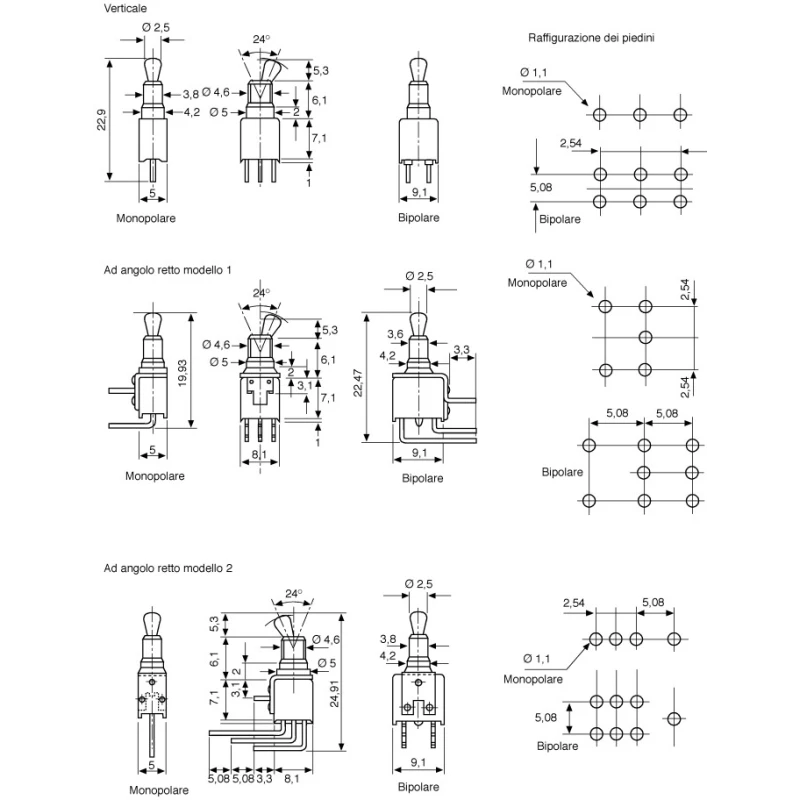

- Compact dimensions of 19.58mm height, 9.6mm length, and 8.1mm width.
- Switch contact current rated at 400mA for low level switching.
- Durability supporting up to 60000 operations for two-position use.
Product Description
APEM TL39W0050 Toggle Switch is a high-quality, ultra-miniature switch designed for PCB mounting in industrial and automation applications. It features an On-Off-On operation with SPDT contact configuration and is suitable for both DC and AC voltage up to 20 volts. The switch is equipped with a brass actuator and gold plated brass terminals for superior electrical performance and mechanical durability.
Ideal for low level switching, the toggle switch has a compact form factor with dimensions of 19.58mm height, 9.6mm length, and 8.1mm width. Its sealed design allows it to withstand immersion cleaning and wave soldering processes, making it highly suitable for manufacturing environments requiring stringent quality assurance.
Capable of handling a switch contact current of 400mA, the switch operates reliably between -30°C and 85°C, supporting a wide range of industrial, laboratory, and electronic assembly conditions. Its extended lifecycle includes 60000 operations for two-position and 30000 operations for three-position uses, ensuring longevity in demanding applications.
The TL39W0050 series meets RoHS standards, assuring compliance with environmental regulations while being manufactured in France to strict quality guidelines. This toggle switch is engineered for precise, reliable control in electrical automation, consumer electronics, and instrumentation industries.
The toggle switch features a brass actuator with a 5.3mm length. It is mounted on PCB with through hole terminals for robust connection. The switch configuration is On-Off-On for versatile control. Completely sealed design resistant to immersion cleaning and wave soldering.
Gold plated brass terminals provide excellent electrical conductivity. Operational temperature range from -30°C to 85°C for industrial use. Compact dimensions maximize PCB space efficiency. RoHS compliant and manufactured in France.
Switch contact current rated at 400mA suitable for low power circuits. Durable switch lifecycle with 60000 operations for two-position use.
This toggle switch is perfect for electronics design requiring a durable and compact SPDT switch solution. Explore more in the Toggle Switch category at EnvMart for related products and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
The contact configuration of this toggle switch is SPDT (Single Pole Double Throw).
The switch contact current is rated at 400mA for low level switching applications.
This toggle switch has dimensions of 19.58mm in height, 9.6mm in length, and 8.1mm in width.
The minimum operating temperature for this toggle switch is -30°C.
It features through hole terminals made of gold plated brass for robust electrical connections.
This toggle switch supports up to 60,000 operations for two-position use and 30,000 operations for three-position use.
Yes, this model is RoHS compliant, ensuring it meets environmental regulations.
The actuator length of this toggle switch is 5.3mm.
The switch configuration is On-Off-On, allowing for versatile control.
The minimum load current is 10mA at 50mV and 10μA at 5Vdc.
This toggle switch is manufactured in France.
