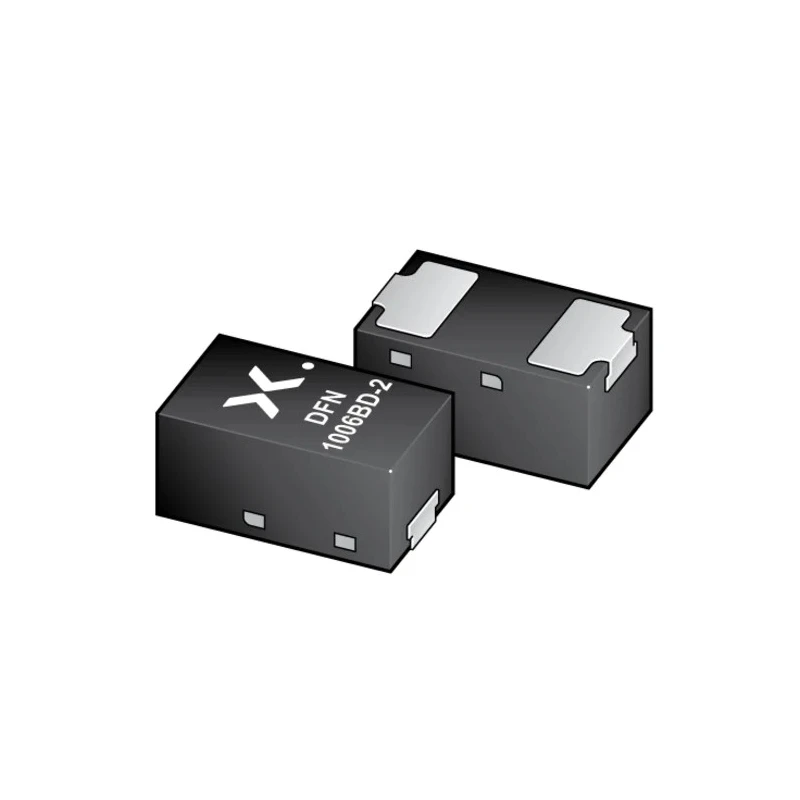

Nexperia 1.56 V General Purpose Zener Diode 365 mW Surface Mount DFN1006BD-2 BZX884S-C56-QYL

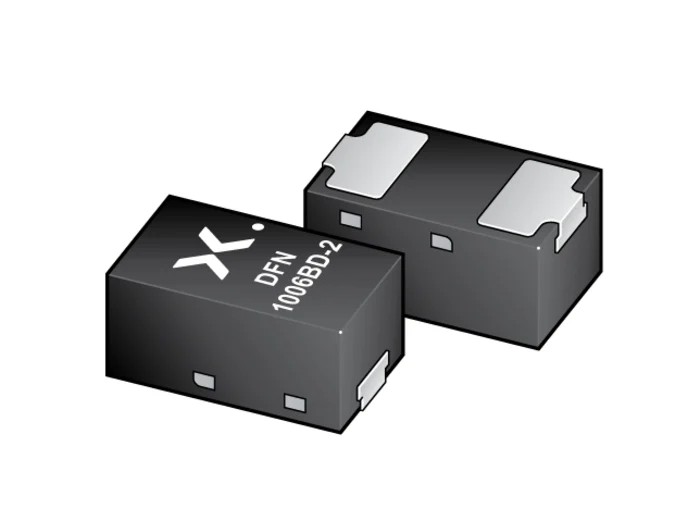

The Nexperia BZX884S-C56-QYL is a 1.56 V general purpose Zener diode designed for use in a variety of electronic and automotive applications. It is housed in an ultra-small leadless DFN1006BD-2 surface mount package with 2 pins, providing compact and reliable circuit protection and voltage regulation. The diode supports a maximum power dissipation of 365 mW while maintaining a nominal Zener voltage of 56 V with a tight tolerance of ±2%.

This high-quality diode offers excellent performance with a maximum reverse leakage current of just 50 nA and a maximum Zener impedance of 425 Ω, ensuring signal stability and protection under varying electrical conditions. The device complies with stringent automotive standards, including AEC-Q101, guaranteeing durability and enhanced reliability for automotive system integration.

The temperature operating range from -55°C to 150°C makes this diode suitable for a broad range of harsh environments. Its typical voltage temperature coefficient of 52.2 mV/K supports applications requiring precise voltage control. With a height of only 0.47 mm and a length of 1 mm, it is ideal for compact circuit board layouts.

The diode's surface mount configuration in the DFN1006BD-2 package ensures ease of automated assembly for high volume production. This product conforms to RoHS directives, underscoring its environmental compliance. It is particularly recommended for use in automotive electronics, industrial electronics, instrumentation, and other demanding applications requiring dependable voltage regulation and protection.

Offers nominal Zener voltage of 56 V with ±2% tolerance. Delivers maximum power dissipation of 365 mW and test current of 5 mA. Features a compact DFN1006BD-2 2-pin surface mount package. Specifically designed for robust automotive standards with AEC-Q101 qualification.

Operates reliably between -55°C and 150°C temperature range. Exhibits low maximum reverse leakage current of 50 nA for efficient operation. Has maximum Zener impedance of 425 Ω ensuring voltage stability. Typical voltage temperature coefficient is 52.2 mV/K, suitable for precise applications.

Ultra-small 0.47mm height and 1mm length package for space-constrained designs. Compliant with RoHS and AEC-Q101 standards for quality assurance. Explore more products in the Zener Diodes category and trusted Nexperia components on EnvMart for reliable and high-performance semiconductor devices suitable for your designs.
