| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C20-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 20V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 225Ω |
| Typical Voltage Temperature Coefficient | 14.4mV/K |
The Nexperia BZX884S-C20-QYL is a general purpose Zener diode designed for reliable voltage regulation in electronic circuits. It features a nominal Zener voltage of 20 volts and a power dissipation rating of 365 milliwatts.

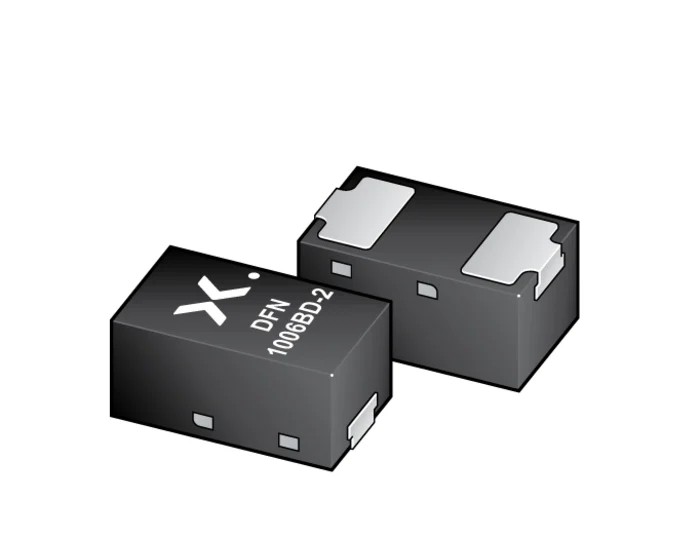

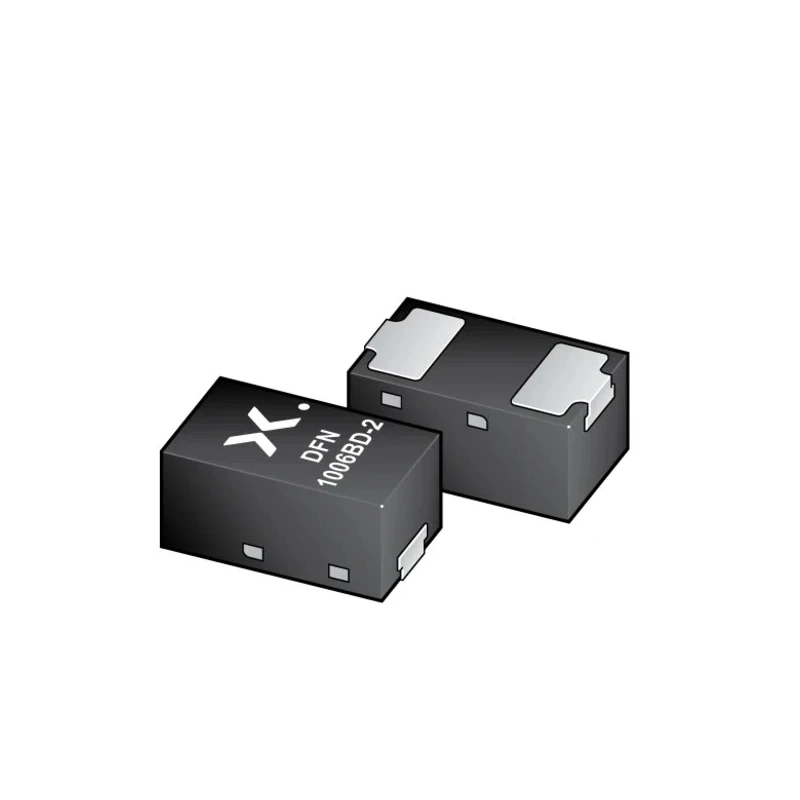

Housed in the ultra-small, surface mount leadless DFN1006BD-2 package with wettable flanks, this diode is ideal for compact, high-density circuit board designs. The diode offers a ±2% voltage tolerance ensuring precise voltage regulation and has a maximum reverse leakage current of 50 nanoamperes for minimal power loss.
Operating over a wide temperature range from -55°C to 150°C, it is suitable for use in harsh environments including automotive applications as it meets the AEC-Q101 standard. The package dimensions are compact with a height of 0.47mm and length of 1mm, enabling efficient PCB space utilization.
This device is RoHS compliant, assuring environmental sustainability. Single diode configuration with 2 pins. Maximum power dissipation of 365mW for robust performance. Designed for surface mount applications using DFN1006BD-2 package.
±2% Zener voltage tolerance for accurate voltage regulation. Low leakage current and stable performance over temperature. Qualified to AEC-Q101 automotive standard for reliability. Typical voltage temperature coefficient of 14.4 mV/K for temperature stability.
This Zener Diode is commonly used in industrial, consumer electronics, and automotive voltage regulation circuits, power management, and voltage reference implementations. Its small form factor and robust electrical characteristics make it suitable for modern electronic device assemblies and manufacturing.
