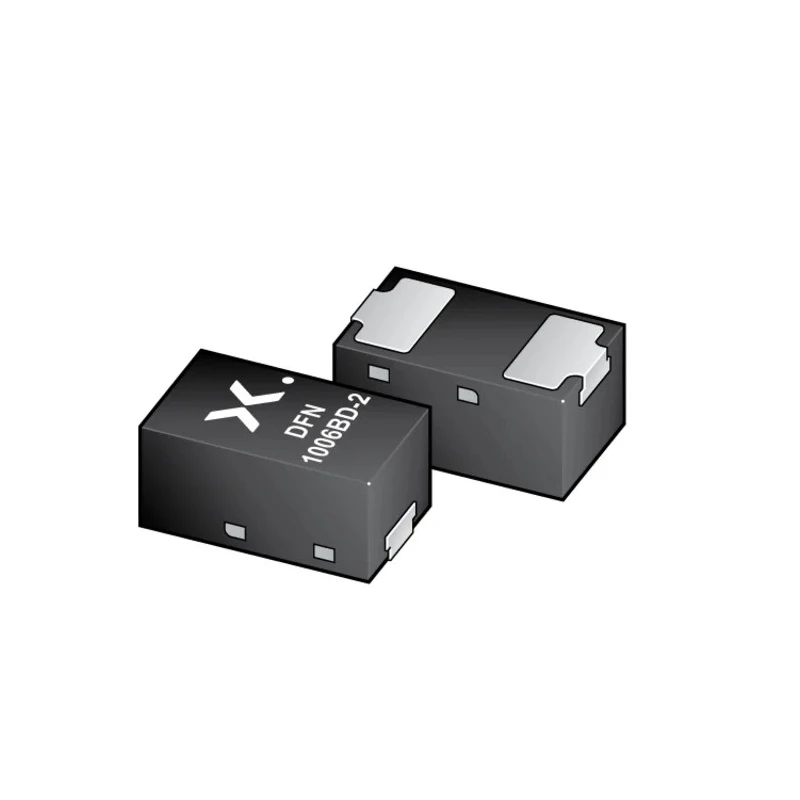

Nexperia 1.56 V General Purpose Zener Diode Single 365 mW 2% Surface Mount 2-Pin DFN1006BD-2 BZX884S-B56-QYL

Nexperia BZX884S-B56-QYL is a high-reliability general-purpose Zener diode designed for voltage regulation in electronic assemblies. Packaged in the ultra-small DFN1006BD-2 2-pin surface mount package, it delivers a nominal zener voltage of 1.56 V and power dissipation of 365 mW. The device features a single diode configuration optimized for stable voltage reference and surge protection in sensitive electronic circuits.

This Zener diode offers a voltage tolerance of ±2%, ensuring precise voltage stabilization crucial in automotive and industrial controls. It is tested at 5 mA current with a maximum zener impedance of 425 Ω, providing reliable performance under varying load conditions. The device also supports a wide operating temperature range from -55°C up to 150°C, making it suitable for harsh environmental conditions encountered in automotive and industrial applications.

With its compact size (height 0.47 mm and length 1 mm), the BZX884S-B56-QYL saves PCB space, allowing efficient use in dense circuit boards. The leadless DFN1006BD-2 package includes side-wettable flanks for excellent solder joint reliability during automated PCB assembly processes.

The diode meets the AEC-Q101 automotive standard, assuring quality and durability demanded by automotive electronics. Its compliance with RoHS confirms adherence to environmental regulations restricting hazardous substances.

Typical applications of the Nexperia BZX884S-B56-QYL include voltage reference stabilization, overvoltage protection, surge suppression circuits, and general-purpose electronic components in industrial, automotive, and commercial electronics manufacturing. This device is ideal for designers requiring a compact, reliable voltage regulation component with automotive-grade certification.

Single diode configuration in a compact DFN1006BD-2 2-pin package. Rated for a maximum power dissipation of 365 mW and tested at 5 mA current. Voltage tolerance is ±2% for precise voltage regulation. Operates reliably between -55°C and 150°C operating temperature.

Maximum reverse leakage current is low at 50 nA, enhancing stability. Package features side-wettable flanks for surface mounting applications. AEC-Q101 qualified for automotive applications ensuring robust performance. Typical voltage temperature coefficient is 52.2 mV/K for stable operation with temperature changes.

Compact dimensions with height 0.47 mm and length 1 mm, suitable for dense PCB layouts. Complies with RoHS standards, ensuring environmental compliance. Explore more in our Electronics & Electricals section under Discrete Semiconductors for high-quality Zener Diodes and related components.
