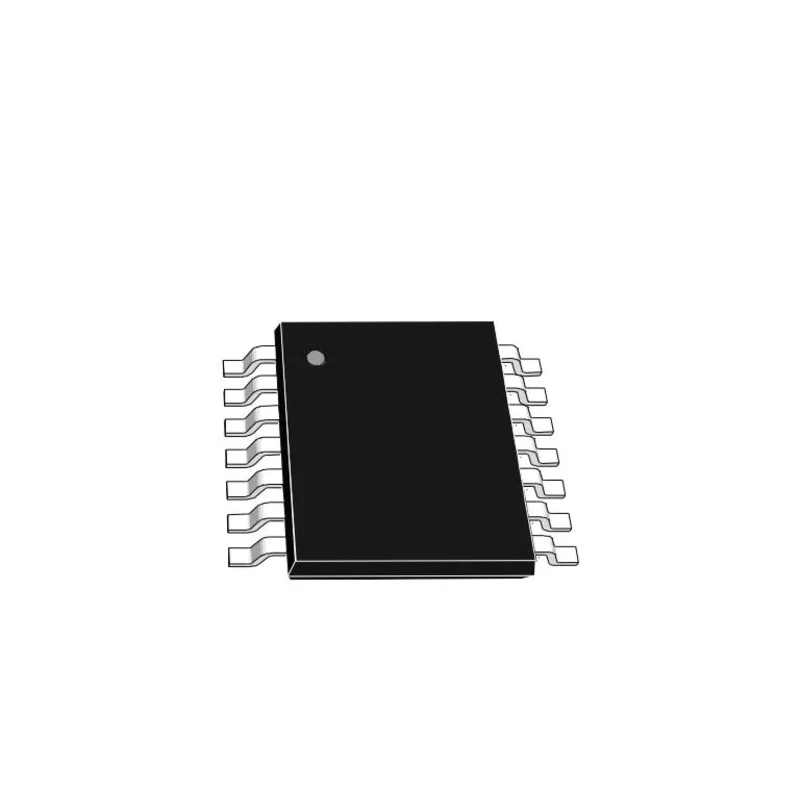

STMicroelectronics Operational Amplifier 6 MHz 14-Pin TSSOP, 2.7 to 36 V Single Supply, 3 V/μs Slew Rate TSB514IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | TSB514IPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Low Noise | 12 nV/√Hz |
| Series | TSB514 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 6MHz |
| Input Bias Current | 0 nA |
| Vos - Input Offset Voltage | ±1.5 mV |
| Slew Rate | 3V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | 2.7 V to 36 V |
| Low offset voltage | 1.5 mV maximum |
Key Features
- Rail-to-rail input and output allow operation close to supply limits.
- Wide supply voltage range from 2.7 V to 36 V supports versatile applications.
- Low input offset voltage of 1.5 mV maximum enhances precision.
- Slew rate of 3 V/μs ensures fast signal response.
- Low noise characteristic of 12 nV/√Hz contributes to signal integrity.
- High ESD tolerance with 2 kV Human Body Model protection.
- Integrated EMI filter reduces electromagnetic interference effects.
- Automotive-grade robustness compliant with AEC-Q100 and AEC-Q3 standards.
Product Description
STMicroelectronics TSB514IPT is a high-performance operational amplifier suited for diverse industrial and automotive applications. Featuring rail-to-rail inputs and outputs, it achieves a gain bandwidth of 6 MHz, supporting precise amplification across a wide supply voltage from 2.7 to 36 V single supply or ±1.35 V to ±18 V dual supplies. This versatility allows seamless integration in low-voltage battery-powered devices as well as robust automotive electronics.
The amplifier benefits from a low input offset voltage of ±1.5 mV maximum and a low input bias current of 0 nA, delivering high accuracy in sensitive analog signal processing. Its slew rate of 3 V/μs ensures swift response times necessary for dynamic signal applications.
The device also includes an integrated EMI filter that enhances noise immunity and robust ESD protection capable of withstanding 2 kV Human Body Model events, safeguarding circuit integrity in harsh environments.
Automotive qualification to AEC-Q100 and AEC-Q3 standards underscores reliability for use in demanding automotive and industrial systems. The operating temperature range between -40°C and 125°C further supports rugged performance.
The 14-pin TSSOP surface mount package, measuring 5.1 mm by 4.5 mm by 1.2 mm, facilitates compact PCB designs. Typical use cases include signal conditioning, sensor interface circuitry, instrumentation applications, automotive control systems, and general-purpose amplification in manufacturing and laboratory environments.
Rail-to-rail input and output design for maximized signal range. Wide supply voltage range from 2.7 V to 36 V single supply operation. Low offset voltage supports precise analog amplification. 3 V/μs slew rate for fast transient response.
Low noise figure assures signal integrity. Integrated EMI filter and 2 kV HBM ESD protection enhance reliability. Automotive standard compliances AEC-Q100 and AEC-Q3 ensure ruggedness. Extended operating temperature range of -40°C to 125°C.
Compact 14-pin TSSOP form factor surface mount package.
Explore the STMicroelectronics Operational Amplifiers category for more high-performance semiconductor solutions tailored to industrial, automotive, laboratory, and manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 6 MHz, allowing for effective amplification in various applications.
It operates with a wide supply voltage range from 2.7 V to 36 V for single supply applications, and ±1.35 V to ±18 V for dual supplies.
The maximum input offset voltage for this operational amplifier is ±1.5 mV, which enhances precision in analog signal processing.
The slew rate of the TSB514IPT is 3 V/μs, ensuring fast signal response suitable for dynamic applications.
This model comes in a 14-pin TSSOP package, measuring 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
The input bias current for the TSB514IPT is 0 nA, contributing to its high accuracy in sensitive applications.
It complies with automotive standards AEC-Q100 and AEC-Q3, ensuring reliability for automotive and industrial applications.
This operational amplifier features a low noise characteristic of 12 nV/√Hz, which helps maintain signal integrity.
The operating temperature range for the TSB514IPT is between -40°C and 125°C, supporting rugged performance in various environments.
This operational amplifier is designed for surface mounting, facilitating compact PCB designs.
It includes integrated EMI filtering to reduce electromagnetic interference and has ESD protection rated at 2 kV Human Body Model.
This model features 4 channels, making it suitable for multi-channel applications in various electronic systems.
