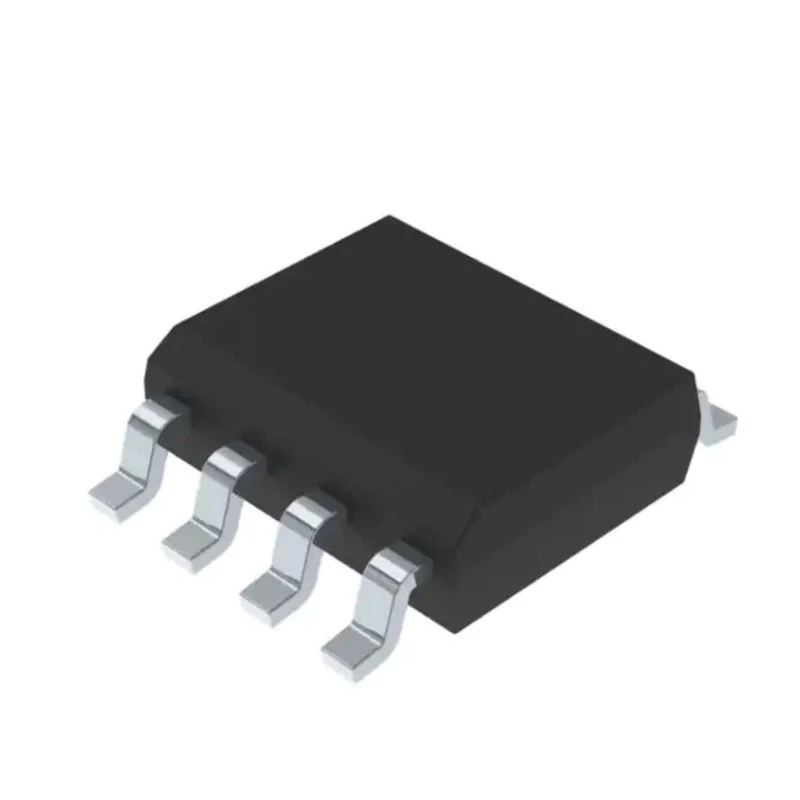

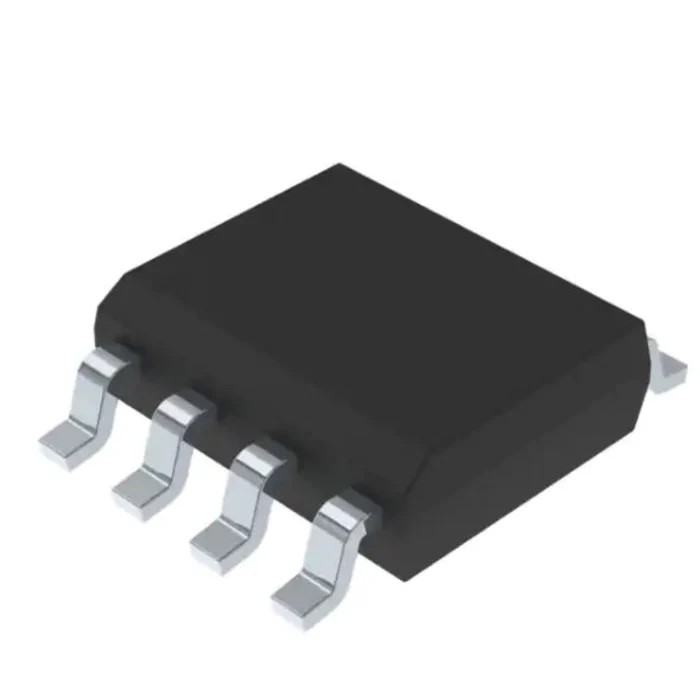

STMicroelectronics Operational Amplifier 4 MHz 36V 8-Pin SO-8 Dual JFET Input TL072ACDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TL072ACDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL072A |
| Maximum Operating Temperature | 70°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100, AEC-Q2 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 100 pA |
Key Features
- Features a high-speed JFET input stage for low noise and high input impedance.
- Dual channel device suitable for various amplification needs.
- Wide common-mode input voltage range up to the supply voltage.
- Low input bias current of 200 picoamperes ensures precision.
- High slew rate of 16 V/μs enables fast signal response.
- Internal frequency compensation for stable operation without external components.
- Includes output short-circuit protection for enhanced reliability.
- RoHS compliant for environmentally safe applications.
Product Description
STMicroelectronics TL072ACDT is a high-speed dual operational amplifier designed for general-purpose amplification, featuring a JFET input stage that provides low noise, low bias currents, and high input impedance. The device operates with a supply voltage range from 6V up to 36V, making it versatile for industrial and automotive applications.
This operational amplifier offers a gain bandwidth product of 4 MHz and a high slew rate of 16 V/μs, suitable for fast and accurate signal processing in analog circuits. The low input bias current of 200 pA and low input offset voltage of 6 mV ensure precision in sensitive measurement and control systems.
Its compact 8-pin SO-8 surface mount package with a height of 1.75 mm and footprint of 5 mm by 4 mm helps optimize PCB space. RoHS compliance confirms adherence to environmental safety standards. The device also meets automotive quality standards AEC-Q100 and AEC-Q2, making it ideal for reliable use in automotive electronics.
Key features include wide common-mode voltage range extending near supply rails, low harmonic distortion of 0.01%, and internal frequency compensation that eliminates the need for external components, enabling straightforward circuit design.
The TL072ACDT is suitable for a range of industrial, laboratory, automotive, and commercial electronics applications such as signal conditioning, filtering, and sensor interfacing. Its robust protection features include output short-circuit protection to enhance device longevity and system safety.
High-speed dual JFET input operational amplifier. Wide supply voltage range from 6V to 36V. Gain bandwidth product of 4 MHz for rapid signal processing. Low input bias current and offset voltage for precision applications.
Slew rate of 16 V/μs ensures fast response. Compact SO-8 surface mount package saves PCB space. Complies with RoHS and automotive standards AEC-Q100/AEC-Q2. Internal frequency compensation for stable operation. Output short-circuit protection enhances reliability.
Explore more Operational Amplifiers and semiconductor products at EnvMart to meet your electronic design requirements with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 4 MHz, which allows for rapid signal processing in analog circuits.
The TL072ACDT operates with a supply voltage range from 6V to 36V, making it versatile for various applications.
This model features a low input bias current of 200 picoamperes, ensuring precision in sensitive applications.
The maximum operating temperature for this operational amplifier is 70°C, suitable for many industrial and automotive environments.
The dimensions of this operational amplifier are 1.75 mm in height, 5 mm in length, and 4 mm in width, packaged in an 8-pin SO-8 format.
The slew rate of this operational amplifier is 16 V/μs, enabling fast signal response for various applications.
Yes, it includes output short-circuit protection to enhance reliability and device longevity.
The input offset voltage for the TL072ACDT is 6 mV, contributing to its precision in measurement applications.
This operational amplifier complies with automotive standards AEC-Q100 and AEC-Q2, ensuring quality for automotive electronics.
The common-mode input voltage range extends up to the supply voltage, allowing for flexibility in circuit design.
It is suitable for a range of applications including signal conditioning, filtering, and sensor interfacing in industrial and automotive contexts.
This operational amplifier comes in an 8-pin SO-8 surface mount package, which helps optimize PCB space.
