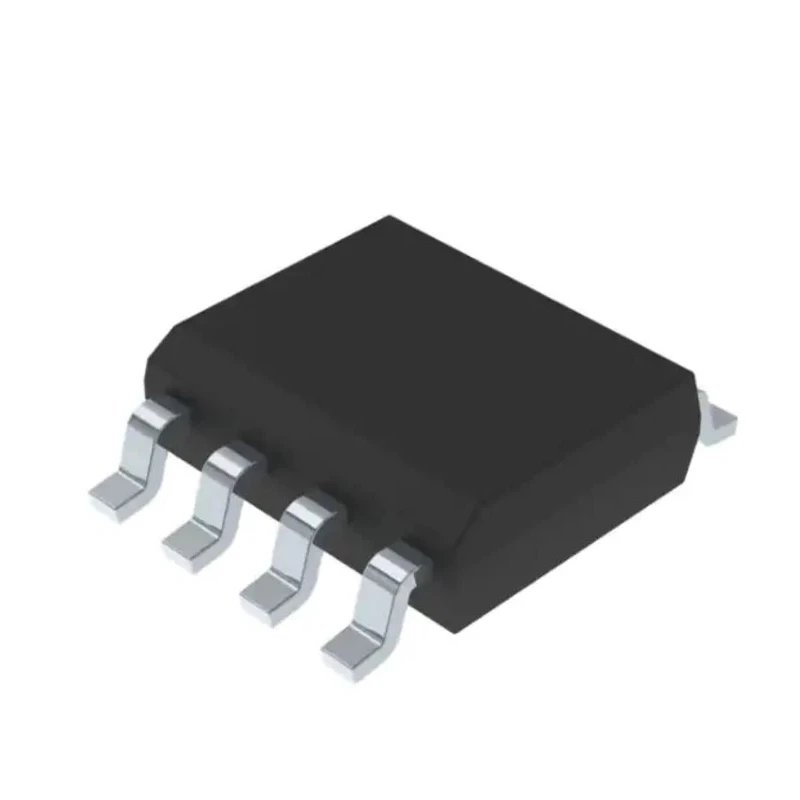

STMicroelectronics Operational Amplifier 4 MHz 8-Pin SO-8 36V Dual Channel TL072ACDT

STMicroelectronics TL072ACDT is a dual channel operational amplifier packaged in an 8-pin SO-8 surface-mount package. It features a high gain bandwidth product of 4 MHz and is rated for operation from 6 V minimum up to 36 V maximum supply voltage, making it suitable for a wide array of precision analog applications in industrial, automotive, and electronic systems.

The device uses high-voltage JFET input stages paired with bipolar transistors integrated monolithically to deliver high speed and low noise performance, including a low input bias current of 200 pA and low input offset current of 100 pA. It exhibits low input offset voltage of 6 mV and a high slew rate of 16 V/μs for accurate and fast signal amplification with minimal distortion.

Designed with internal frequency compensation and output short-circuit protection, the TL072ACDT ensures reliable operation and stability under various load and signal conditions. The low harmonic distortion of approximately 0.01% makes it ideal for audio and instrumentation amplification.

Compact physical dimensions of 5 mm length, 4 mm width, and 1.75 mm height facilitate integration into densely packed PCB designs. The device meets RoHS environmental compliance and automotive quality standards AEC-Q100 and AEC-Q2, confirming its suitability for automotive electronics and other demanding environments.

Operating temperature range from 0°C to 70°C supports a wide range of industrial and commercial applications. The TL072ACDT's dual-channel architecture enables use in applications requiring two operational amplifiers within a single package, reducing component count and improving circuit compactness.

High speed JFET input dual operational amplifiers offering precision performance. Wide common-mode voltage range enhances circuit flexibility. Low input bias and offset currents reduce signal errors. High slew rate ensures rapid transient response.

Internal frequency compensation for stable operation. Output short-circuit protection for enhanced device safety. Low harmonic distortion for high-fidelity signal processing. Compact SO-8 package suitable for surface mounting.

RoHS compliant and meets automotive standards AEC-Q100, AEC-Q2. Operates reliably from 0°C to 70°C ambient temperature.

This operational amplifier is widely used in industrial control systems, audio processing, instrumentation, automotive electronics, and other applications demanding precise analog signal amplification. For more semiconductor and operational amplifier options, browse the Electronics & Electricals > Semiconductor > Operational Amplifier category on EnvMart.
