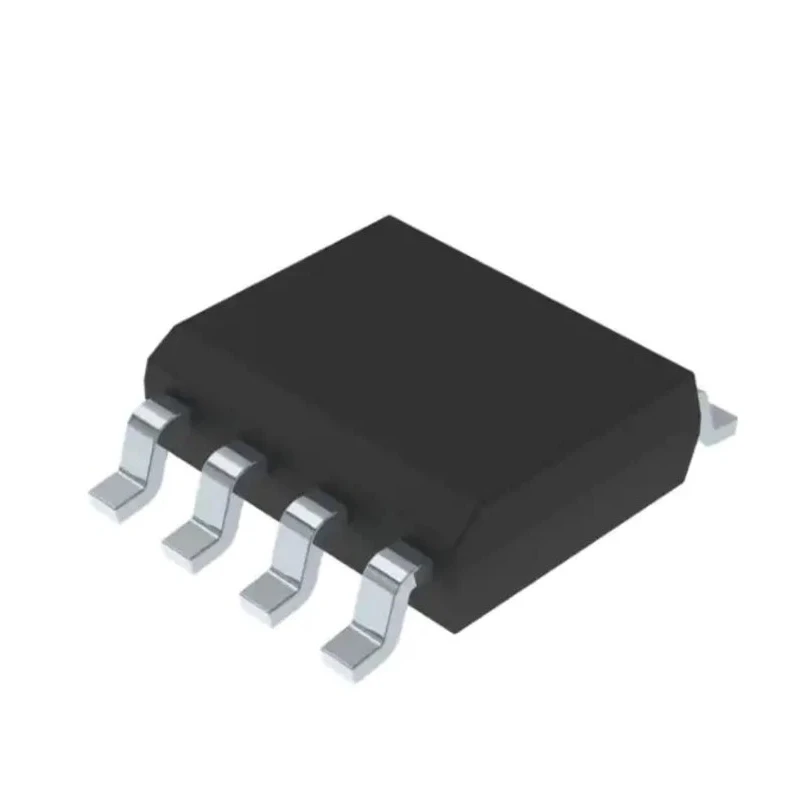

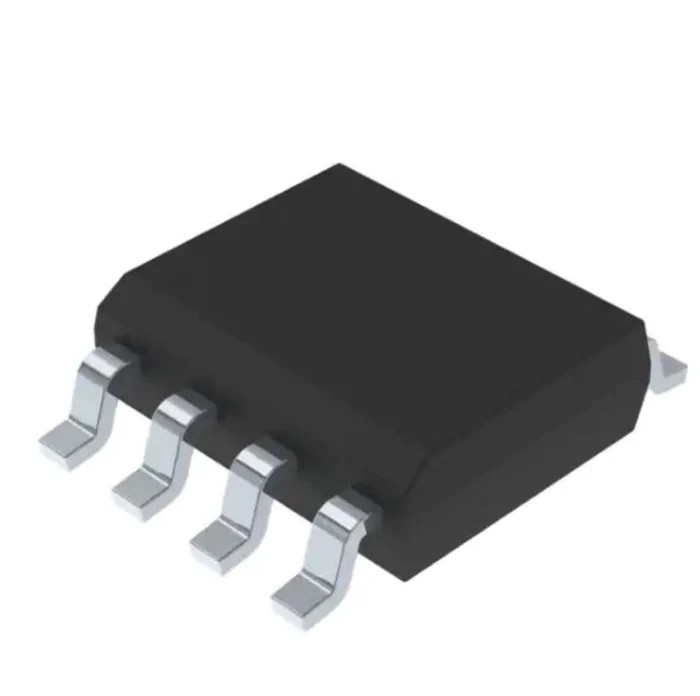

STMicroelectronics Operational Amplifier 4 MHz 8-Pin SO-8 36V TL072ACDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TL072ACDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL072A |
| Maximum Operating Temperature | 70°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100, AEC-Q2 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 100 pA |
Key Features
- High-speed JFET input dual operational amplifiers in a monolithic integrated circuit.
- Wide common-mode voltage range up to VCC+ and differential voltage range.
- Low input bias current of 200 pA and low offset current of 100 pA.
- High slew rate of 16 V/μs and low noise typical at 15 nV/√Hz.
- Includes output short-circuit protection and internal frequency compensation.
- Features low harmonic distortion of 0.01% typical for precision applications.
- Operates within a temperature range of 0°C to 70°C.
- Complies with RoHS and automotive standards AEC-Q100 and AEC-Q2.
Product Description
STMicroelectronics TL072ACDT is a high-speed JFET input dual operational amplifier designed for precision analog signal processing. It delivers a gain bandwidth product (GBP) of 4 MHz, supporting wide bandwidth for various industrial and electronic applications.
The device features low input bias current at 200 pA and ultra-low input offset current of 100 pA, enabling high accuracy in instrumentation circuits. It has a high slew rate of 16 V/μs and low noise characteristics, making it suitable for audio, sensor, and control systems that require fast and low-distortion signal amplification.
Its wide operating voltage range from 6 V minimum to 36 V maximum and operation across 0°C to 70°C temperature enables robustness in diverse environments. The SO-8 surface mount package (5x4x1.75 mm) facilitates space-saving PCB designs with reliable soldering and thermal performance.
Protection features include output short-circuit protection and internal frequency compensation, ensuring stable operation without latch-up even under demanding conditions.
This operational amplifier is RoHS compliant and meets automotive industry standards AEC-Q100 and AEC-Q2, making it ideal for automotive electronics, instrumentation, and industrial control applications.
High-speed JFET input dual-op-amp in monolithic IC. Wide voltage and temperature operating range. Low noise and distortion with high slew rate. Short-circuit protection and frequency compensation. Compact SO-8 surface mount package.
STMicroelectronics Operational Amplifiers are used extensively in electronic component assemblies, instrumentation, laboratory equipment, automotive systems, and signal processing industries. Their reliable performance and adherence to industry standards enhance product longevity and efficiency.
Explore other amplifiers and semiconductor components on EnvMart for comprehensive electronic system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL072ACDT has a gain bandwidth product (GBP) of 4 MHz, making it suitable for various industrial and electronic applications that require wide bandwidth.
This model operates within a voltage range of 6 V minimum to 36 V maximum, allowing flexibility in different circuit designs.
The SO-8 package of the TL072ACDT measures 5 mm in length, 4 mm in width, and 1.75 mm in height, facilitating compact PCB designs.
The maximum operating temperature for this operational amplifier is 70°C, ensuring reliability in various environments.
The input bias current for the TL072ACDT is 200 pA, which contributes to its high accuracy in instrumentation applications.
This model features 2 channels, making it a dual operational amplifier suitable for various applications.
The TL072ACDT has a high slew rate of 16 V/μs, allowing for fast signal processing in audio and control systems.
It complies with automotive standards AEC-Q100 and AEC-Q2, making it suitable for automotive electronics applications.
The input offset voltage (Vos) for the TL072ACDT is 6 mV, which is essential for precision applications.
This operational amplifier includes output short-circuit protection and internal frequency compensation, ensuring stable operation under demanding conditions.
The TL072ACDT has a low noise characteristic, typical at 15 nV/√Hz, making it suitable for applications requiring minimal signal distortion.
This operational amplifier uses a surface mount type (SO-8), which allows for efficient use of space on printed circuit boards.
