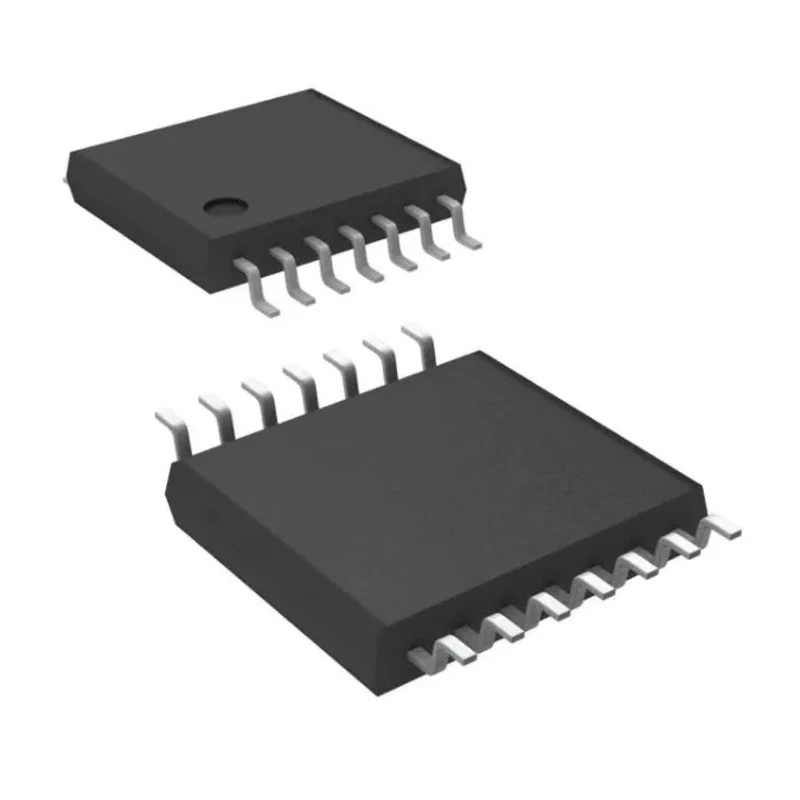

STMicroelectronics Operational Amplifier Quad 1.3 MHz Gain Bandwidth 3-30V TSSOP-14 LM224PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | LM224PT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LM224x |
| Output Current | 40mA |
| Maximum Operating Temperature | 105°C |
| Package Type | TSSOP-14 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 2 nA |
Key Features
- Operates with a wide supply voltage range from 3V to 30V.
- Features low input bias current of 20 nA with minimal offset voltage of 5 mV maximum.
- Quad channel configuration supports multiple applications simultaneously.
- Compact TSSOP-14 surface mount package with dimensions 5.1 mm length and 4.5 mm width.
- Maximum operating temperature up to 105°C ensures reliability in harsh conditions.
- Slew rate of 0.4 V/μs suitable for moderate speed signal processing.
- Output current capability of 40 mA per amplifier channel.
- Designed RoHS compliant for environmental safety.
Product Description
STMicroelectronics LM224PT is a low-power quad operational amplifier designed to operate from a single power supply over a wide voltage range of 3V to 30V. It provides a gain bandwidth product of 1.3 MHz and comes in a compact TSSOP-14 surface mount package with 16 pins, measuring 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
This operational amplifier features low input bias current of 20 nA, a maximum input offset voltage of 5 mV, and a low input offset current of 2 nA, making it highly suitable for precision analog signal processing applications.
With a slew rate of 0.4 V/μs and an output current capacity of 40 mA per channel, the LM224PT supports reliable performance in a variety of industrial, laboratory, automotive, and electronics manufacturing use cases. The device operates reliably in temperature ranges from -40°C to 105°C and is RoHS compliant, ensuring compliance with environmental standards.
The quad-channel configuration enables the management of multiple analog signals in compact circuit designs. Its surface mount TSSOP-14 packaging aids in automated PCB assembly and space-efficient layouts.
Operates with supply voltages from 3V to 30V. Low input bias current reduces measurement errors. High gain bandwidth product of 1.3 MHz enables moderate frequency applications. Compact and low-profile TSSOP-14 package for surface mounting in dense circuit boards.
Wide operating temperature range supports harsh environments. Industry compliant with RoHS directives. 4 channels in one package improve design efficiency. High output current capability supports various loads. Precision input offset and offset current characteristics.
This STMicroelectronics LM224PT operational amplifier is well suited for amplifiers in audio, instrumentation, signal conditioning, and control systems within electronics manufacturing, automotive electronics, instrumentation labs, and industrial controls.
Explore more semiconductor amplifiers and Operational Amplifier solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 3V to 30V.
The gain bandwidth product of the LM224PT is 1.3 MHz.
It features a quad-channel configuration, providing four channels in one package.
The maximum operating temperature for the LM224PT is 105°C.
This operational amplifier can deliver an output current of 40 mA per channel.
It comes in a TSSOP-14 package type, which is suitable for surface mounting.
The LM224PT has a low input bias current of 20 nA.
The slew rate for this model is 0.4 V/μs, which is suitable for moderate speed signal processing.
The height of the TSSOP-14 package for the LM224PT is 1.2 mm.
The minimum operating temperature is -40°C.
This operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
The maximum input offset voltage for this model is 5 mV.
