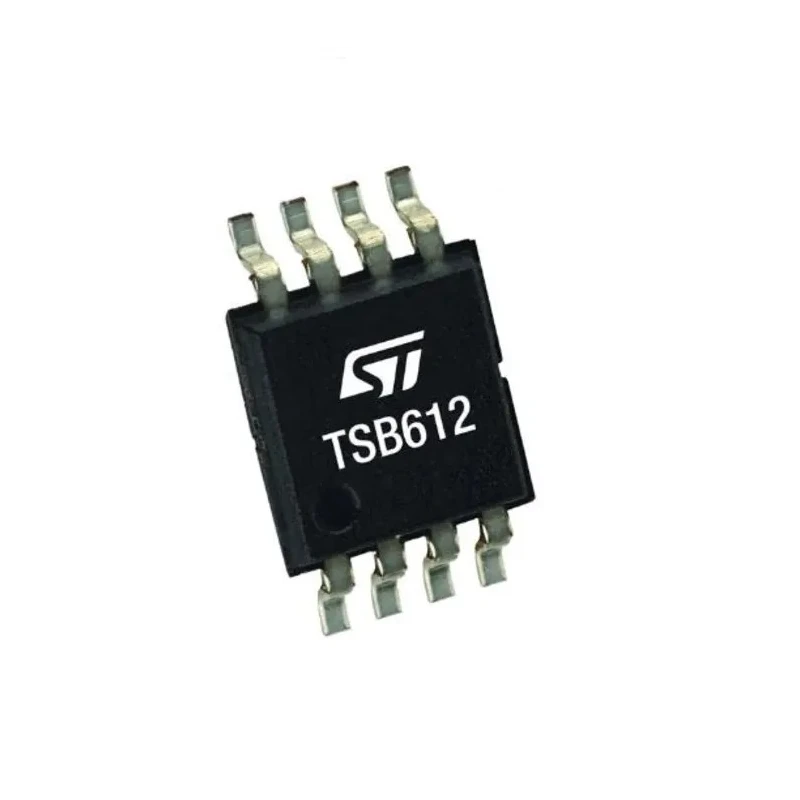

STMicroelectronics Operational Amplifier 560 kHz Gain Bandwidth Product 36V SO8 TSB612IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSB612IDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSB12 |
| Output Current | 20mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 40V |
| GBP - Gain Bandwidth Product | 560kHz |
| Input Bias Current | 15 nA |
| Vos - Input Offset Voltage | 1.6 mV |
| Slew Rate | 0.19V/μs |
| Input Offset Current | 10 nA |
Key Features
- Offers an extended supply voltage range from 4V to 36V.
- Features rail-to-rail output for full voltage swing.
- Low power consumption of less than 125 µA per amplifier at 36V supply.
- Input bias current of 15 nA and input offset voltage of 1.6 mV.
- High maximum output current up to 20 mA for versatile applications.
- Automotive-grade qualification with AEC-Q100 standard compliance.
- Wide operating temperature range from -40 °C to 125 °C.
- Compact SO8 surface-mount package measuring 5 mm x 4 mm x 1.75 mm.
Product Description
STMicroelectronics TSB612IDT is a high-performance operational amplifier designed for industrial, automotive, and electronic applications requiring high speed and low power consumption. It delivers a 560 kHz gain bandwidth product and supports supply voltages from 4V to 36V, making it suitable for a wide range of power systems.
This operational amplifier features rail-to-rail output to maximize output voltage swing, ensuring optimal signal processing in all operating conditions. With a low input bias current of 15 nA, input offset voltage of 1.6 mV, and a slew rate of 0.19 V/µs, the TSB612IDT provides excellent precision and signal integrity.
The device comes in a compact surface-mount 8-pin SO package measuring 5 mm in length, 4 mm in width, and 1.75 mm in height, enabling space-efficient PCB designs. It supports an output current of up to 20 mA, suitable for driving various loads in applications such as automotive control units, sensor interfaces, and industrial instrumentation.
The TSB612 series is automotive qualified to AEC-Q100 standards and operates reliably in extreme temperature ranges from -40 °C to 125 °C, ensuring robustness in harsh environments.
Extended supply voltage range supports versatile power systems. Rail-to-rail output improves signal amplitude capabilities. Low power consumption enhances energy efficiency. Precision input offset voltage and low bias currents ensure accurate performance.
Compact SO8 package facilitates easy surface mounting on PCBs. Automotive standard AEC-Q100 qualification ensures high reliability.
This Operational Amplifier is essential for applications in automotive electronics, industrial automation, consumer electronics, and other semiconductor-based designs. Explore more STMicroelectronics electronic components and amplifiers on EnvMart for your component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSB612IDT has a gain bandwidth product of 560 kHz, making it suitable for high-speed applications.
This model supports a supply voltage range from 4V to 36V, allowing it to be used in various power systems.
It can deliver a maximum output current of up to 20 mA, making it versatile for driving different loads.
The SO8 package measures 5 mm in length, 4 mm in width, and 1.75 mm in height, facilitating space-efficient PCB designs.
The input bias current is 15 nA, contributing to its precision in signal processing.
This operational amplifier operates reliably within a temperature range of -40 °C to 125 °C, suitable for harsh environments.
The input offset voltage is 1.6 mV, ensuring accurate performance in applications.
It complies with the AEC-Q100 automotive standard, ensuring high reliability for automotive applications.
The slew rate is 0.19 V/μs, which contributes to its performance in fast signal applications.
It utilizes a surface mount type, making it suitable for modern PCB assembly techniques.
The input offset current is 10 nA, which is beneficial for maintaining signal integrity.
This operational amplifier is suitable for automotive control units, sensor interfaces, and industrial instrumentation.
