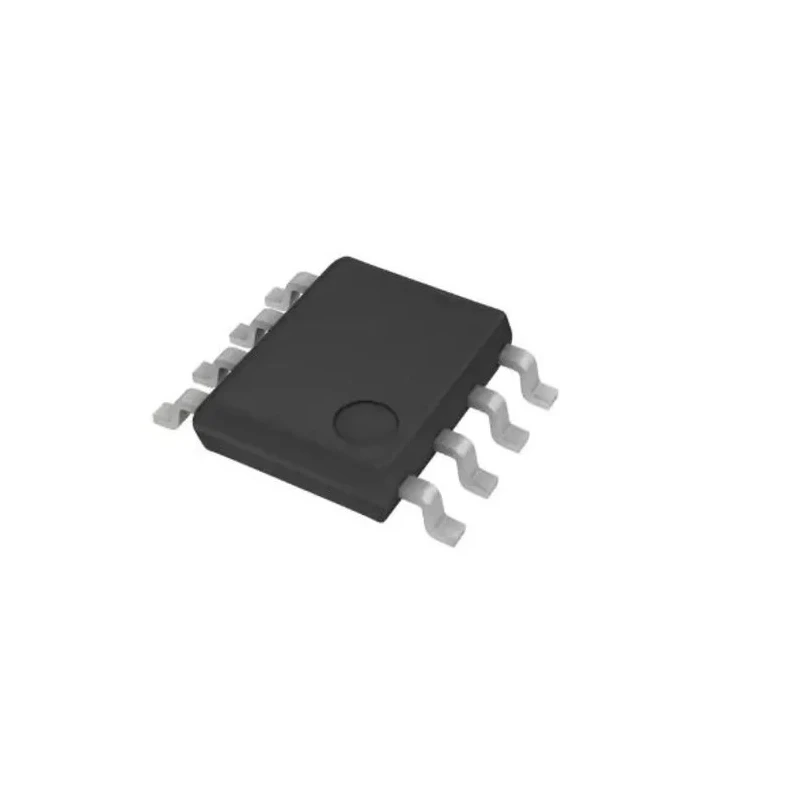

STMicroelectronics Operational Amplifier 1.2 MHz 36V MiniSO 8-Pin Dual Channel LM2904BYST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 3.2mm |
| Model | LM2904BYST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | LM2904B |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniSO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 40 nA |
Key Features
- Features low power consumption suitable for automotive and industrial systems.
- Includes two independent, internally frequency compensated high gain amplifiers.
- Operates from a single power supply voltage up to 36V.
- Low input bias current of 20 nA and input offset current of 40 nA ensures precision performance.
- Supports operating temperature range from -40°C to 125°C for harsh environments.
- Compact 3.2mm length, 3.1mm width, and 1.1mm height MiniSO surface mount package.
- Automotive standard compliant with AEC-Q100 certification.
- Slew rate of 0.6 V/μs and output current capability of 40 mA.
Product Description
STMicroelectronics LM2904BYST is a dual-channel operational amplifier offering a gain bandwidth product of 1.2 MHz and designed to operate from a 36V single power supply. It comes in a compact 8-pin MiniSO surface mount package measuring 3.2mm by 3.1mm by 1.1mm. The device is optimized for precision applications in automotive and industrial control systems with robust operating temperature capability from -40°C up to 125°C.
The op amp integrates two independent amplifiers, each internally frequency compensated for stable operation across a wide voltage range. It features a low input bias current of 20 nA and an input offset current of 40 nA, delivering high accuracy and low noise performance. The input offset voltage is around 5 mV, suitable for sensitive signal conditioning tasks.
Output current capability reaches 40 mA, with a slew rate of 0.6 V/μs supporting moderate speed signal amplification needs. The input common-mode voltage range includes the negative rail, and the differential input voltage range equals the supply voltage, enhancing design flexibility.
Compliant with automotive standard AEC-Q100, LM2904BYST is well suited for demanding environments in automotive electronics and industrial applications requiring reliable, low power, high-performance operational amplifiers.
Low power consumption ideal for automotive and industrial applications. Dual independent high gain operational amplifiers in a single MiniSO package. Wide operating supply voltage up to 36V. Low input bias and offset currents for precision.
Wide temperature range from -40°C to 125°C. Compact surface mount package size (3.2mm x 3.1mm x 1.1mm). Certified to automotive standard AEC-Q100. Slew rate of 0.6 V/μs and 40 mA output current. Input offset voltage approximately 5 mV.
This operational amplifier is ideal for designs requiring reliable, efficient amplification such as automotive sensor interfaces, industrial process control, and general signal conditioning circuits. Explore related products and other Operational Amplifiers in the Electronics category on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz.
It operates from a single power supply voltage of up to 36V.
The output current capability reaches 40 mA.
It supports an operating temperature range from -40°C to 125°C.
The dimensions of the MiniSO package are 3.2 mm in length, 3.1 mm in width, and 1.1 mm in height.
The input offset voltage is approximately 5 mV, suitable for sensitive signal conditioning tasks.
This model features two independent channels.
The slew rate is 0.6 V/μs, supporting moderate speed signal amplification needs.
The input bias current is 20 nA.
Yes, it is compliant with the automotive standard AEC-Q100.
This operational amplifier uses a surface mount type.
The input offset current is 40 nA.
