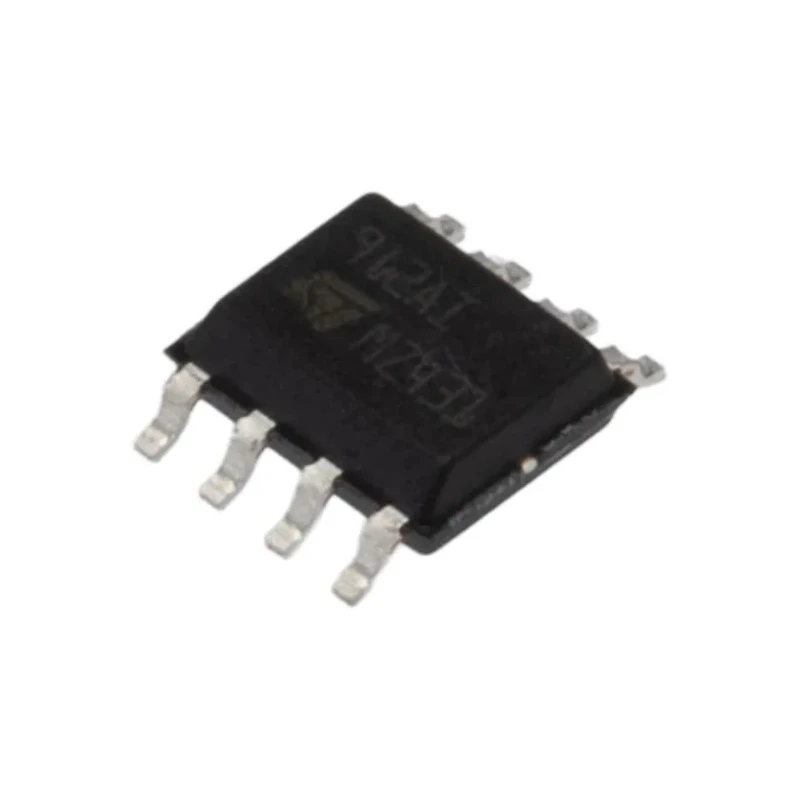

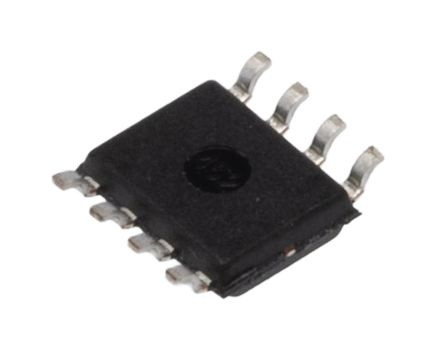

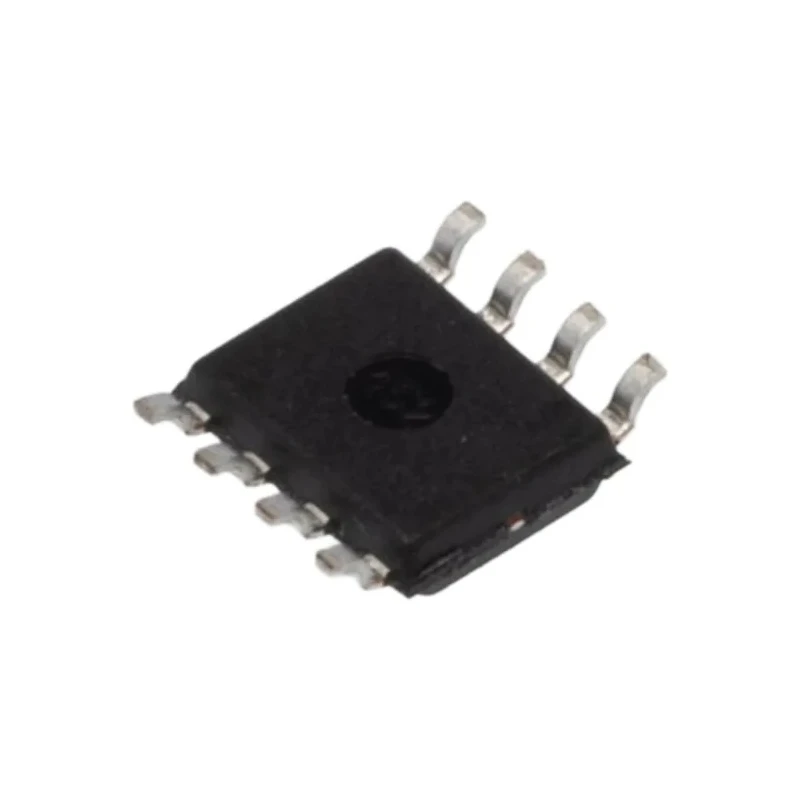

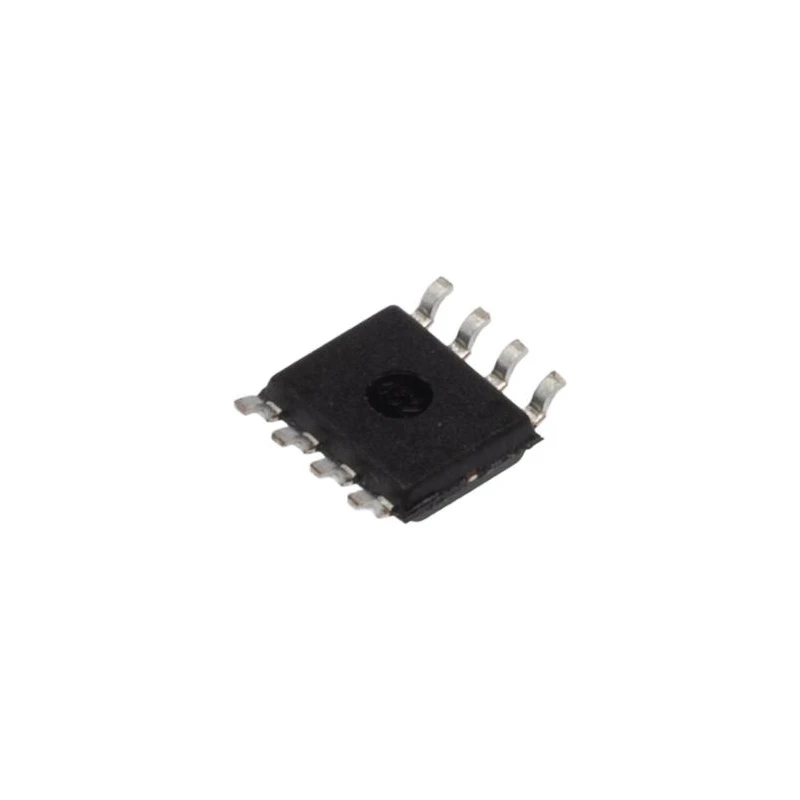

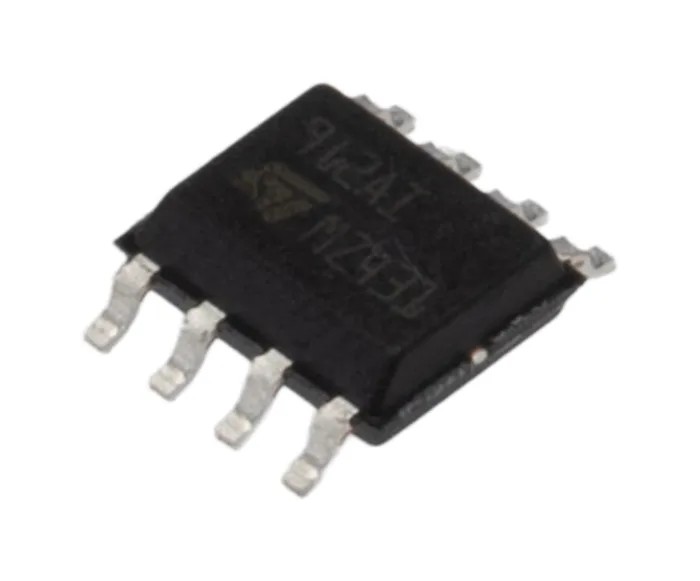

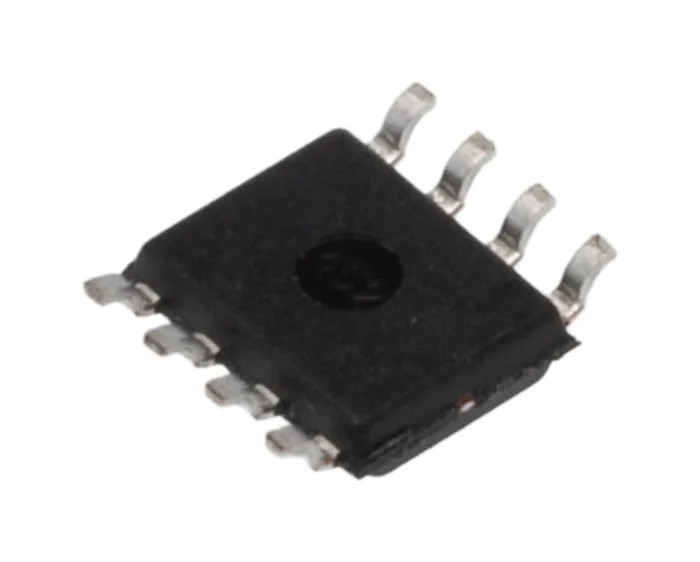

STMicroelectronics Low Power Dual Operational Amplifier 1 MHz Bandwidth 8-Pin SOIC TS912AIDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS912AIDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS912 |
| Output Current | 75mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | Q002, AEC Q100, Q001, ECOPACK, Q003 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q1, AEC-Q3, AEC-Q100, AEC-Q2 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1 to 300 pA |
| Vos - Input Offset Voltage | 2 to 12 mV |
| Slew Rate | 0.8V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 1 to 200 pA |
| Low input bias current | 1 pA typical |
Key Features
- Operates on single or dual supply voltages from 3 V to 16 V.
- Features low input bias current ranging from 1 to 300 pA for high accuracy applications.
- Offers low input offset voltage between 2 mV and 12 mV ensuring precise signal processing.
- Provides a slew rate of 0.8 V/μs supporting moderate frequency responses.
- Includes dual channels with a pin count of 8 in a compact SOIC package.
- Designed for operation across a wide temperature range from -40°C to 125°C.
- Complies with automotive standards including AEC-Q1, AEC-Q2, AEC-Q3, and AEC-Q100.
- Small form factor with dimensions of approximately 4.9 mm length, 3.9 mm width, and 1.25 mm height.
Product Description
STMicroelectronics TS912AIDT is a dual operational amplifier optimized for low power consumption and high precision signal processing. It features a gain bandwidth product of 1 MHz with rail-to-rail input and output voltage ranges, allowing it to function efficiently in a variety of electronic circuits. Housed in an 8-pin SOIC package for surface mounting, its compact design fits well in space-constrained electronic applications.
This amplifier operates on single or dual power supplies, supporting voltages from 3 V to 16 V. It delivers low input bias currents from 1 to 300 pA and low input offset voltages between 2 mV and 12 mV, enabling accurate amplification even for low-level signals. The slew rate of 0.8 V/μs ensures adequate response speed for moderate frequency analog circuits.
Engineered for reliability, the TS912AIDT functions across a broad temperature range from -40°C up to 125°C and meets stringent automotive quality standards including AEC-Q1, AEC-Q2, AEC-Q3, and AEC-Q100. Its output current capability of 75 mA makes it suitable for driving moderate loads in industrial, automotive, and consumer electronics.
The device’s compact dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height, combined with surface mount packaging, make it ideal for automated PCB assembly in high volume manufacturing. Typical applications include sensor interfacing, signal conditioning, and amplification circuits in automotive, industrial, and general-purpose electronics.
Low power dual operational amplifier with 1 MHz bandwidth. Rail-to-rail input and output voltages for maximum signal range. Wide supply voltage range from 3 V to 16 V for versatile power configurations. Low input bias current and offset voltage for enhanced signal accuracy.
Meets automotive standards for durability and quality assurance. Compact SOIC package facilitating surface mount assembly. Wide operating temperature range suitable for harsh environments. Output current capability to drive moderate loads.
Explore the full range of Operational Amplifiers and semiconductor components for your electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is 1 MHz, allowing it to function effectively in various electronic circuits.
It operates on single or dual supply voltages ranging from 3 V to 16 V.
This unit has dimensions of approximately 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
The input bias current ranges from 1 to 300 pA, enabling high accuracy in applications.
It features a low input offset voltage between 2 mV and 12 mV, ensuring precise signal processing.
The slew rate of this operational amplifier is 0.8 V/μs, which supports moderate frequency responses.
This model includes dual channels, making it suitable for various applications.
It complies with automotive standards including AEC-Q1, AEC-Q2, AEC-Q3, and AEC-Q100.
The output current capability is 75 mA, allowing it to drive moderate loads effectively.
This operational amplifier is housed in an 8-pin SOIC package for surface mounting.
Typical applications include sensor interfacing, signal conditioning, and amplification circuits in automotive and industrial electronics.
