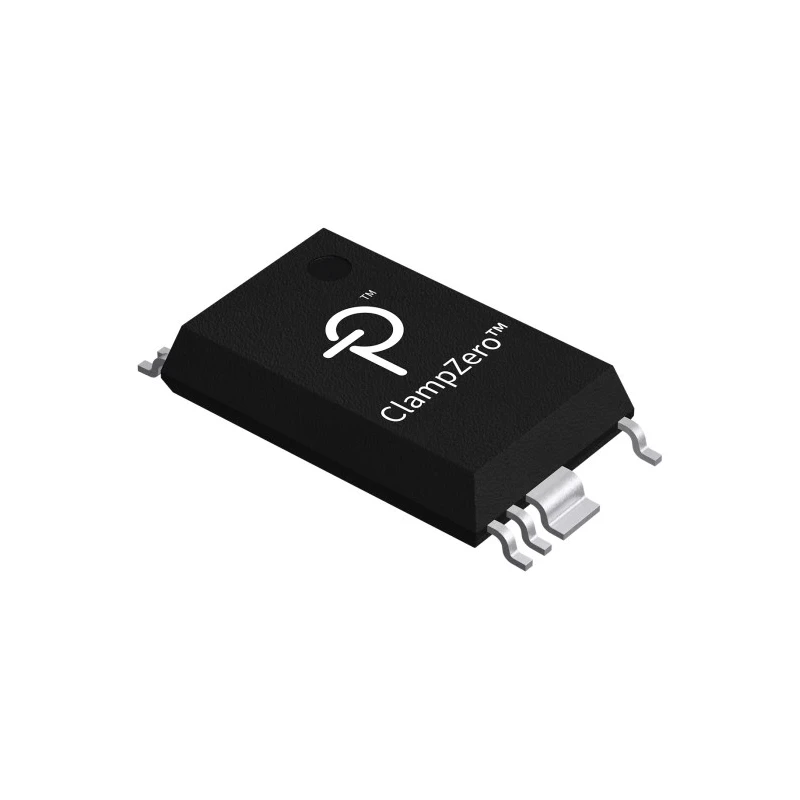

Power Integrations High Voltage Switcher Surface Mount 120W 265V Input 3.87A Output 16-Pin MinSOP CPZ1062M-TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 10.8mm |
| Length | 9.4mm |
| Model | CPZ1062M-TL |
| Width | 1.6mm |
| Output Power | 120W |
| Mount Type | Surface |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | MinSOP |
| Minimum Operating Temperature | -65°C |
| Switching Frequency | 140kHz |
| Maximum Input Voltage | 265V |
| Maximum Output Current | 3.87A |
| Minimum Input Voltage | 85V |
| Pin Count | 16 |
| Supply Current | 30μA |
| Minimum Output Voltage | 5V |
| Minimum Output Current | 3.26A |
Key Features
- Supports maximum input voltage of 265V for robust operation.
- Provides output power up to 120W suitable for high power applications.
- Features 16-pin MinSOP package ensuring compact surface mount placement.
- Offers switching frequency of 140kHz for efficient energy transfer.
- Maximum output current of 3.87A and minimum output current of 3.26A.
- Operates over a wide temperature range from -65°C to 150°C.
- Incorporates flyback topology for optimized power conversion.
- Supply current is ultra-low at 30μA ensuring minimal power loss at idle times.
Product Description
Power Integrations CPZ1062M-TL is a high voltage switcher designed for surface mount applications requiring efficient power conversion. It supports a maximum input voltage of 265V and delivers output power up to 120W, making it ideal for advanced power supply designs.
The IC is packaged in a compact 16-pin MinSOP package measuring 10.8mm in height, 9.4mm in length, and 1.6mm in width. Its switching frequency of 140kHz enables highly efficient energy transfer, greatly improving power supply efficiency well above 95% while maintaining low component counts due to flyback topology.
This device operates across a broad temperature range (-65°C to 150°C) with integrated temperature sensing and hysteretic thermal shutdown for safe operation under extreme conditions. The self-biased controller communicates effectively with the InnoSwitch4 primary controller, optimizing system performance.
The CPZ1062M-TL captures and recycles leakage inductance energy to minimize wasted power, and it features ultra-low supply current of 30μA. It is halogen-free and RoHS compliant, adhering to environmental safety standards.
This power management IC is suitable for industrial, commercial, and laboratory electronics requiring efficient AC-DC conversion. Supports maximum input voltage of 265V for robust operation. Provides output power up to 120W suitable for high power applications.
Features 16-pin MinSOP package ensuring compact surface mount placement. Offers switching frequency of 140kHz for efficient energy transfer. Maximum output current of 3.87A and minimum output current of 3.26A. Operates over a wide temperature range from -65°C to 150°C.
Incorporates flyback topology for optimized power conversion. Supply current is ultra-low at 30μA ensuring minimal power loss at idle times. Includes integrated temperature sensing and thermal shutdown protection. Halogen-free and RoHS compliant, supporting environmental regulations.
Browse Power Integrations Power Management ICs and high voltage switchers at EnvMart for comprehensive industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage supported by this model is 265V, allowing for robust operation in high power applications.
This power management IC provides an output power of up to 120W, making it suitable for high power applications.
It operates with a switching frequency of 140kHz, which enables efficient energy transfer and improved power supply efficiency.
The CPZ1062M-TL is packaged in a 16-pin MinSOP configuration, measuring 10.8mm in height, 9.4mm in length, and 1.6mm in width.
This model operates over a wide temperature range from -65°C to 150°C, accommodating various environmental conditions.
The maximum output current for this device is 3.87A, with a minimum output current of 3.26A.
The supply current is ultra-low at 30μA, ensuring minimal power loss during idle times.
Yes, it is halogen-free and RoHS compliant, adhering to environmental safety standards.
The minimum input voltage supported by this device is 85V, allowing for flexible application in varying conditions.
It includes integrated temperature sensing and hysteretic thermal shutdown protection, ensuring safe operation under extreme conditions.
