Eaton ETR4 Series DIN Rail Timer Relay, 1-Contact, 240 V DC 24-240 V AC, ON Delay, 0.05 s to 60 h, SPDT 031882 ETR4-11-A

Category Timer Relay Brand Eaton Condition New

Specifications

Country of Origin China
Brand Eaton
Height 103mm
Length 82.5mm
Model 031882 ETR4-11-A
IP Rating IP20
Mode ON Delay
Width 22.5mm
Mount Type DIN Rail
Series ETR4
Maximum Operating Temperature 60°C
Contact Configuration SPDT
Minimum Operating Temperature -20°C
Time Range 0.05 s to 60 h
Terminal type Screw
Standards/Approvals IEC, VDE
Number of Contacts 1
Number of Timer Functions 1
Contact Current 3A
Supply DC Voltage 240 V dc
Timing Adjustment Screwdriver Slot
Supply AC Voltage 24, 240V ac

Key Features

  • Suitable for industrial automation and control systems.
  • Operates on 240 V DC and 24 to 240 V AC supply voltages.
  • ON delay mode ensures controlled operation timing.
  • Single contact with SPDT configuration for versatile applications.
  • DIN rail mounting for easy installation.
  • Screw terminal connection for reliable wiring.
  • Wide operating temperature range from -20°C to 60°C.

Product Description

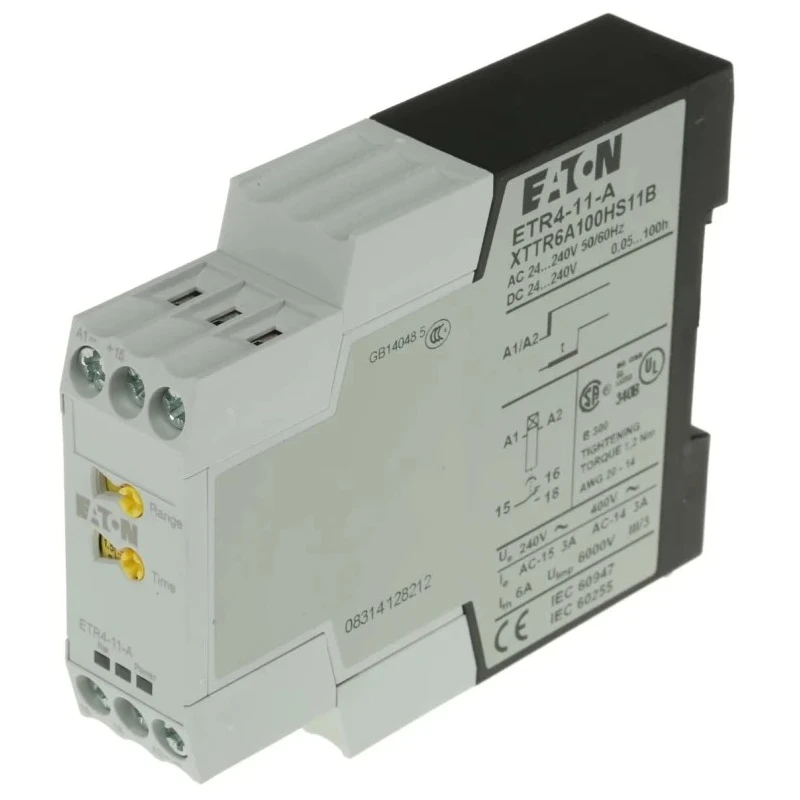

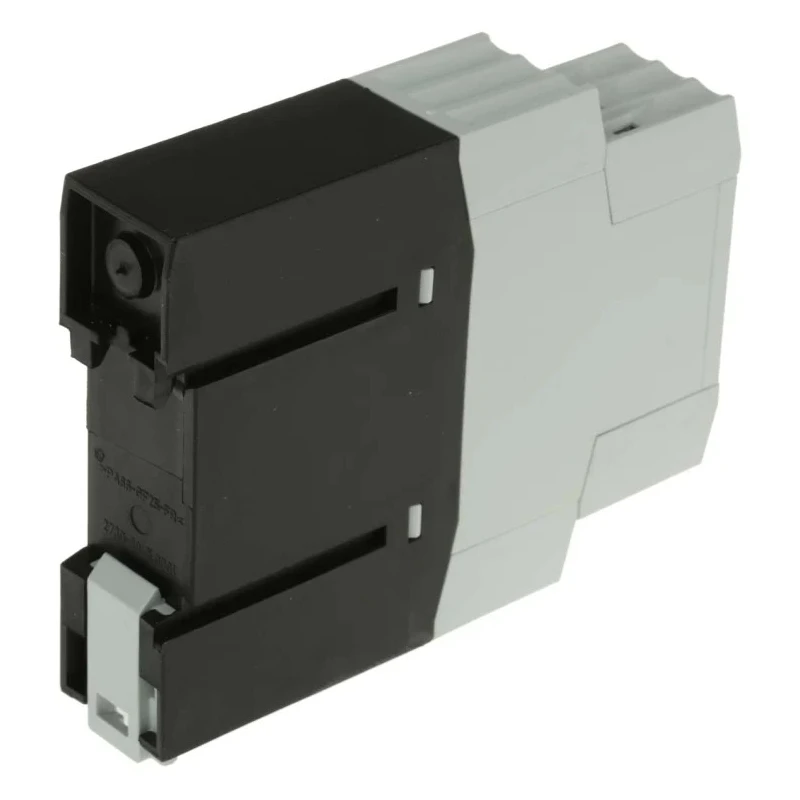

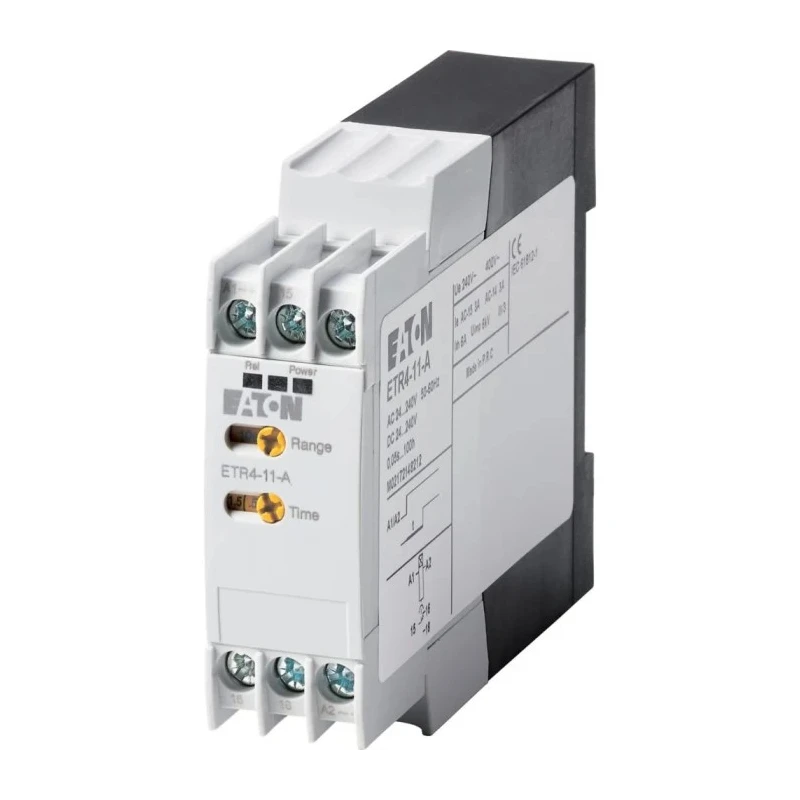

Eaton 031882 ETR4-11-A is an advanced DIN Rail Timer Relay designed for precise timing control in industrial applications. This relay features a single SPDT contact and one timer function, providing flexibility for various timer-based automation tasks.

The relay supports a wide voltage range including 240 V DC and 24 to 240 V AC, accommodating diverse power supply conditions in electrical control systems. Its timing range extends from 0.05 seconds up to 60 hours, suitable for short and long-duration timing requirements.

Designed for DIN rail mounting, the ETR4-11-A allows for quick and secure installation in control panels. The screw terminal type ensures stable electrical connections, contributing to system reliability.

With an ON delay mode of operation, this timer relay initiates timing upon energizing, useful for machinery timing functions and industrial automation processes. It can perform efficiently in temperature ranges from -20°C to 60°C and carries an IP20 rating, protecting against ingress of solid objects.

Compact in size with a height of 103 mm, length of 82.5 mm, and width of 22.5 mm, it fits well in standard electrical enclosures. It complies with IEC and VDE standards, assuring quality and safety in use.

Precise single timer function with wide timing range from 0.05 seconds to 60 hours. SPDT contact configuration offers versatile switching options. Compatible with 240 V DC and 24 to 240 V AC supply voltages. ON delay mode ideal for controlled timing in automation applications.

DIN rail mounting style facilitates easy installation and integration. Screw terminal connection ensures secure wiring. Suitable for industrial automation, HVAC, machinery control, and electrical systems. Compact form factor for space-efficient panel design.

Choose Eaton ETR4-11-A for reliable and accurate timing relay performance in demanding industrial environments. Explore more Timer Relay options and related electrical components on EnvMart for your automation and control needs.

Eaton ETR4 Series DIN Rail Timer Relay, 1-Contact, 240 V DC 24-240 V AC, ON Delay, 0.05 s to 60 h, SPDT 031882 ETR4-11-A
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Eaton ETR4-11-A timer relay has a timing range from 0.05 seconds to 60 hours, allowing for both short and long-duration timing applications.

This model operates on a supply voltage of 240 V DC and 24 to 240 V AC, making it versatile for various electrical control systems.

The ETR4-11-A features a single SPDT (Single Pole Double Throw) contact configuration, providing flexibility for different switching applications.

This timer relay is designed for DIN rail mounting, which allows for easy installation in control panels.

The operating temperature range for the ETR4-11-A is from -20°C to 60°C, suitable for various industrial environments.

The ETR4-11-A has an IP20 rating, which protects against the ingress of solid objects but is not rated for water protection.

This timer relay uses screw terminals for secure and reliable wiring connections.

The ETR4-11-A complies with IEC and VDE standards, ensuring quality and safety in its use.

This model features one timer function, providing precise timing control for automation tasks.

The dimensions of the ETR4-11-A are 103 mm in height, 82.5 mm in length, and 22.5 mm in width, making it compact for standard enclosures.

The contact current rating for the ETR4-11-A is 3A, suitable for various control applications.

This timer relay operates in ON delay mode, meaning it initiates timing upon energizing, which is useful for controlled timing in automation processes.
