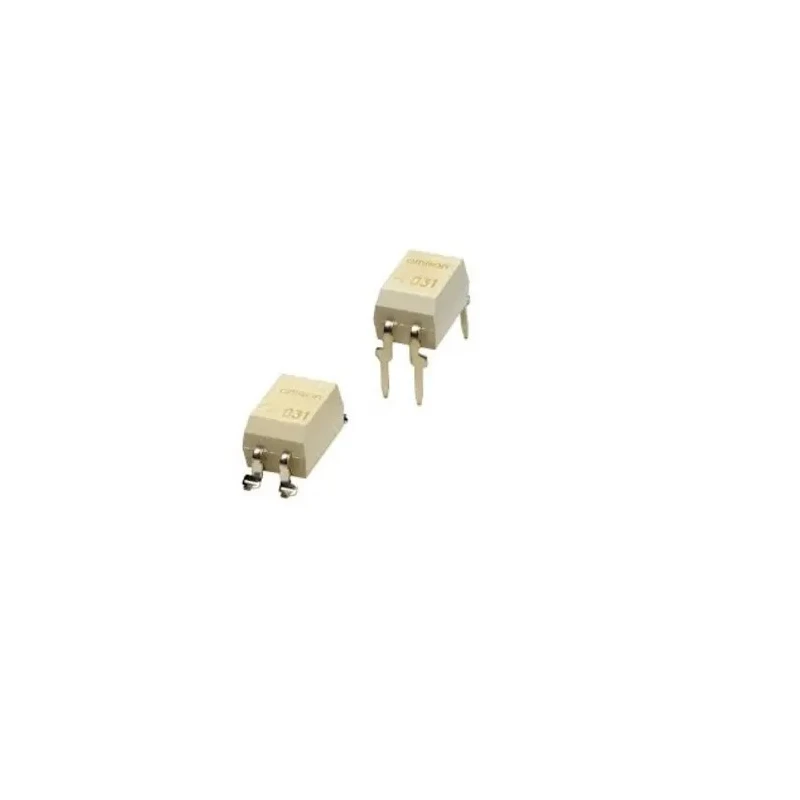

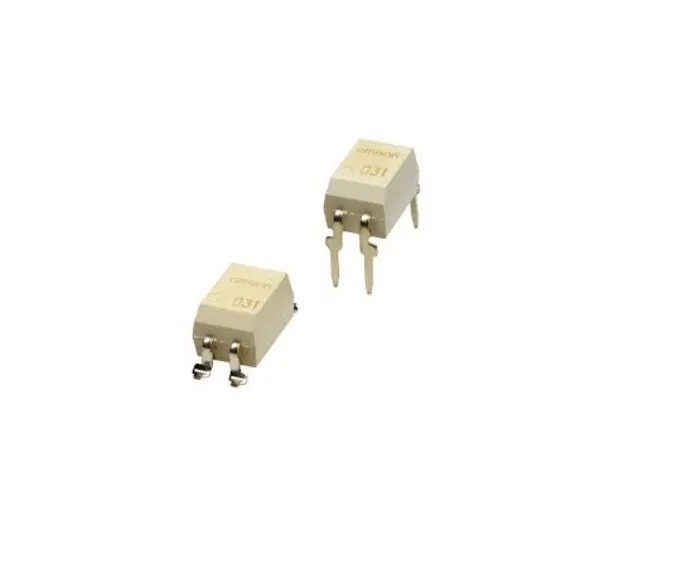

Omron G3VM Series Solid State Relay Surface Mount 0.7 A Load 200 V Load 1.8V Control

Omron G3VM-201DR solid state relay is designed for high switching capacity and low ON resistance using MOSFET output. It is packaged in a compact DIP 4-pin surface mount format optimized for PCB mounting in a wide range of industrial and commercial electronic applications.

The relay supports a maximum load current of 0.7 A and can handle load voltages up to 200 V, suitable for both AC and DC switching operations. Its precise control voltage range between 1.5 V and 1.8 V allows sensitive input control. The contact configuration is SPST providing simple switching outputs.

With an ambient operating temperature range from -40°C to 110°C and soldering tolerance of up to 260°C, the G3VM-201DR ensures durability under harsh environmental conditions. Its low off-state leakage current of 1μA guarantees minimal power loss and high efficiency in signal isolation.

The relay's mechanical dimensions (6.4mm x 4.58mm x 3.65mm) offer a compact footprint, enabling integration in space-constrained PCB designs. Compliance with RoHS and UL safety standards highlights its suitability for industrial and laboratory equipment.

This product is widely used in semiconductor test equipment, communication devices, industrial test and measurement instruments, and data logging systems where reliable and fast switching solid state relays are required.

This solid state relay employs MOSFET output for efficient switching performance. It features a single-pole single-throw (SPST) contact configuration suitable for AC/DC switching. The relay operates reliably within a wide ambient temperature range from -40°C to 110°C.

Compact dimensions of 6.4mm length, 4.58mm width, and 3.65mm height facilitate space-saving PCB mounting. It supports minimum control voltage of 1.5 V and maximum control voltage of 1.8 V for precise operation. The low off state leakage current of 1μA improves energy efficiency.

The relay complies with RoHS and UL standards, ensuring quality and environmental safety. Ideal for semiconductor test equipment, test and measurement instruments, communication devices, and data loggers. Manufactured in Japan, reflecting high reliability and quality standards.
