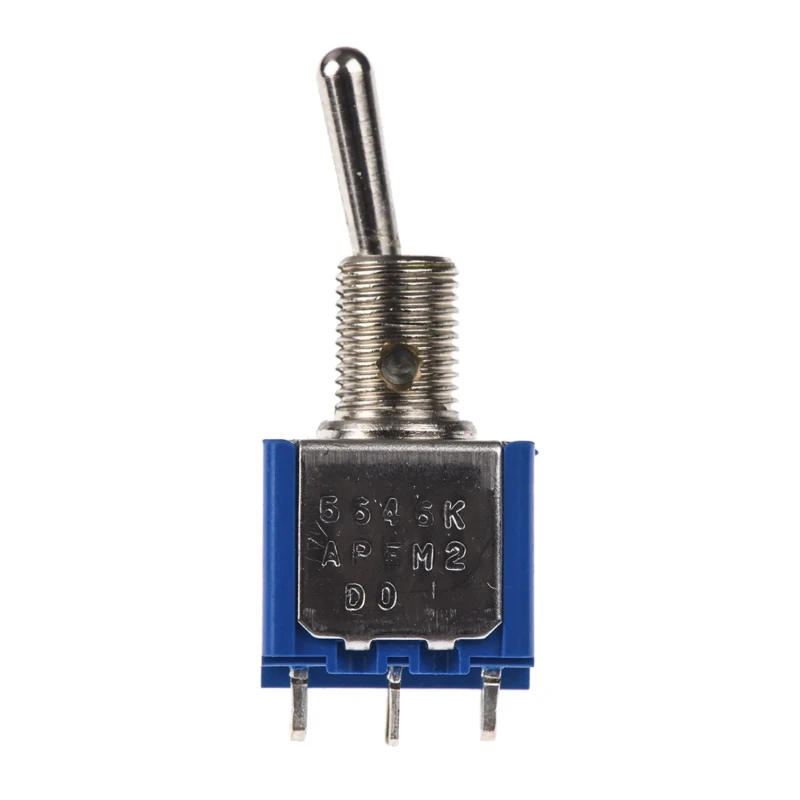

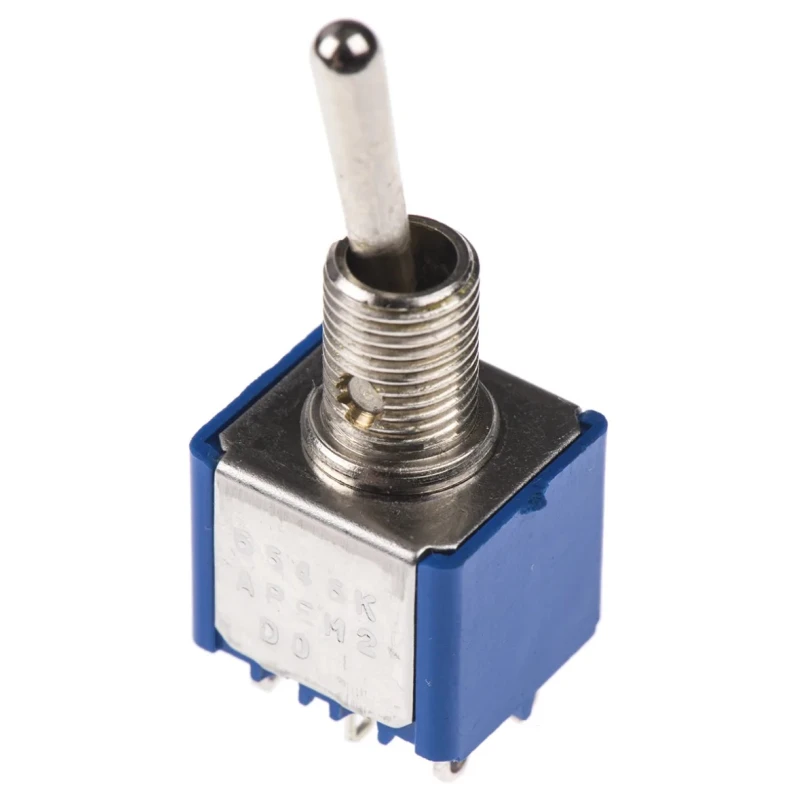

APEM Toggle Switch, Panel Mount, On-On DPST, Solder Terminal, 30 V dc, 250 V ac 5646AK

APEM 5646AK toggle switch is a front panel sealing, panel mount miniature double pole changeover switch designed for reliable electrical switching applications.

It operates with an On-On configuration and features silver contacts with a contact current rating of 4A suitable for industrial and commercial electrical circuitry up to 30 V dc and 250 V ac.

The switch features a brass actuator and a Diallyl Phthalate (UL 94 V-0) case for robustness and electrical safety, complemented by internal and external sealing washers for enhanced protection against environmental ingress.

The panel cutout size is 6.5 mm with a maximum panel thickness of 1 mm, and the actuator length is 10.5 mm, offering convenience in panel assembly.

Designed to endure a mechanical life of 100,000 operations, this toggle switch is ideal for use in electrical automation, control panels, and instrumentation across industrial, laboratory, HVAC, and manufacturing environments.

This toggle switch features a double pole double throw (DPST) contact configuration. The switch operation is On-On, providing two active positions. It has a contact current rating of 4 A suitable for moderate electrical loads.

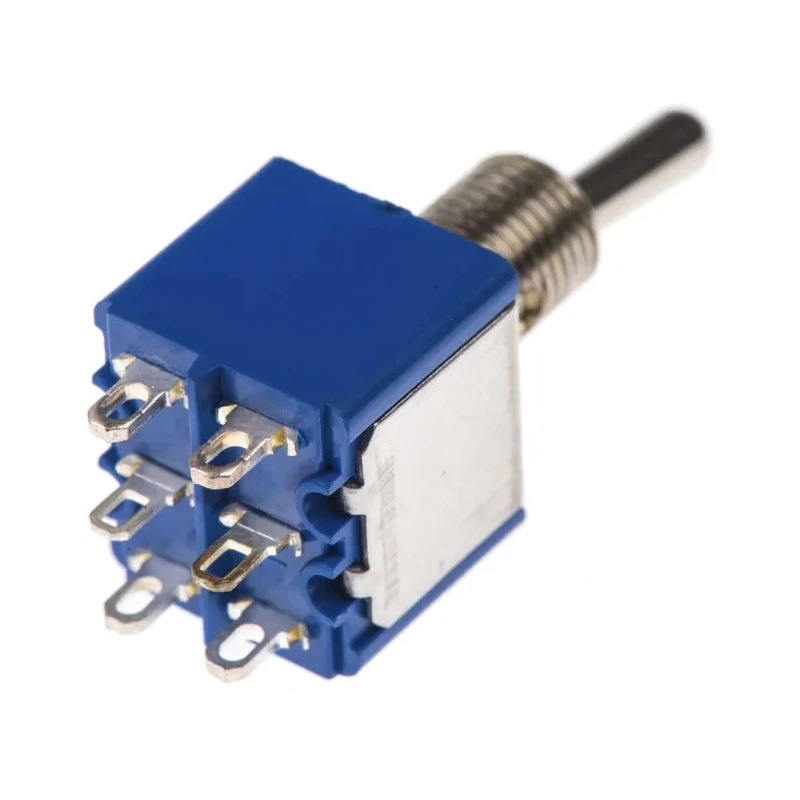

The mounting type is panel mount with a panel cutout size of 6.5 mm. Terminals are solder type ensuring robust electrical connections. The actuator is made of brass and measures 10.5 mm in length. The switch is rated for operation between -40°C and 85°C.

Dimensions are 34.2 mm height, 13.2 mm length, and 12 mm width. It offers a mechanical life of 100,000 operations ensuring durability. This model complies with RoHS, UL, CSA, and CECC standards. Manufactured in France, the APEM 5646AK meets stringent quality and safety standards important for professional-grade electrical components.
