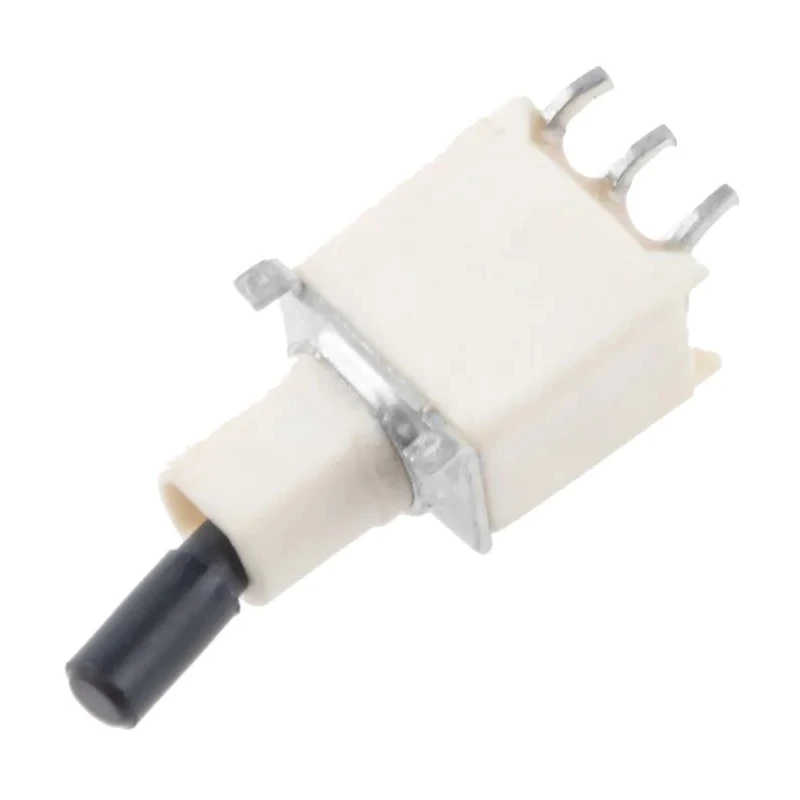

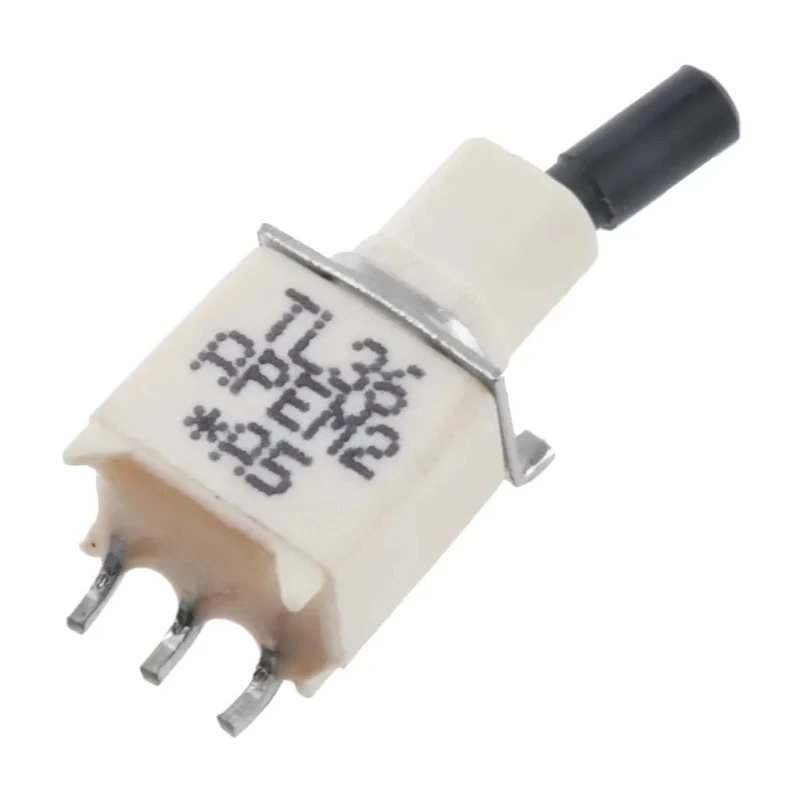

APEM PCB Mount On-On SPDT Toggle Switch Surface Mount Terminal Chrome Plated Brass Actuator 20 V dc 20 V ac TL36WS84

APEM TL36WS84 is a high-quality PCB Mount toggle switch designed for demanding electrical and automation applications. This switch features a reliable On-On SPDT operation and is equipped with surface mount gull-wing terminals suitable for infrared and vapour-phase soldering processes. The gold-plated brass contacts facilitate low resistance and long-term durability, making it ideal for use in industrial, laboratory, and manufacturing control panels.

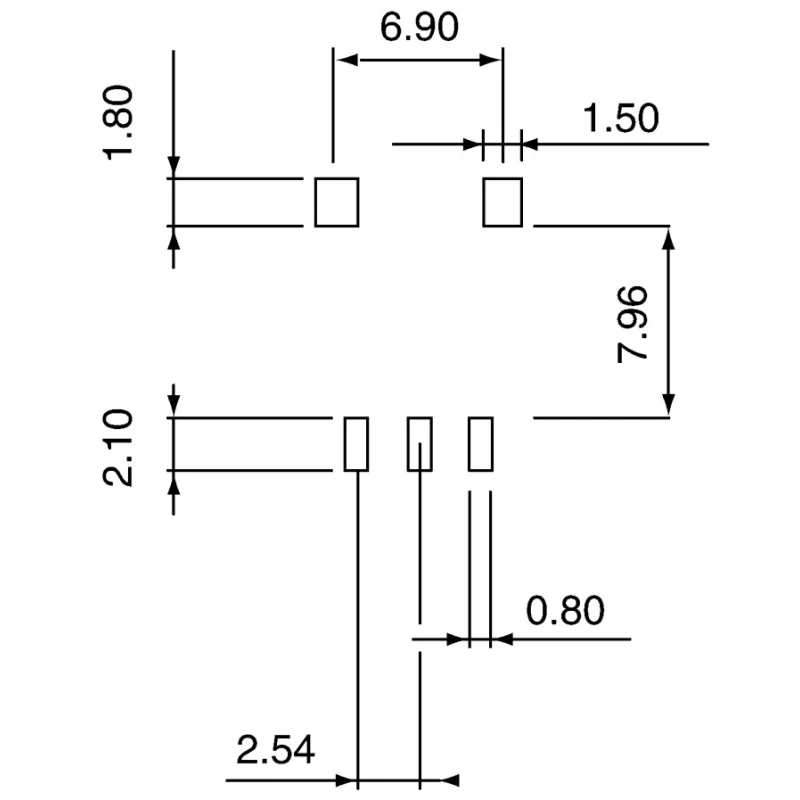

The chrome plated brass actuator combined with a high-temperature plastic (UL94V-0) housing ensures excellent mechanical robustness and thermal resistance, while the device is sealed against process washing. With a compact footprint of 5.55 mm length, 8.1 mm width, and 20.81 mm height, it fits into tight PCB layouts in electronic devices and control equipment.

This toggle switch supports a contact current of 400 mA and a maximum operating temperature of 85°C, enabling its use in a variety of electrical and electronic circuits requiring reliable switching under moderate power. It offers a mechanical lifespan of approximately 60,000 operations and is rated for 20 V dc and 20 V ac contact voltages. The switch is RoHS compliant and provides ESD protection up to 10 kV, suitable for environments sensitive to electrostatic discharge.

Typical use cases include automation systems, electronic instruments, small electrical appliances, and communication equipment. The robust mechanical build and surface mount configuration make it an excellent choice for OEMs and electronic assemblers.

This toggle switch features a single pole double throw (SPDT) contact configuration. It operates with an On-On switch operation, allowing two connection positions. Surface mount gull-wing terminals enable infrared and vapour-phase soldering compatibility.

Gold-plated brass contacts ensure excellent conductivity and corrosion resistance. The switch supports a contact current of 400 mA for moderate load handling. Chrome plated brass actuator and high-temperature plastic case provide durability and thermal resistance.

Mechanical life expectancy is rated at 60,000 operations for long service. This switch is RoHS compliant and provides ESD protection up to 10 kV for enhanced reliability. Compact dimensions (Length: 5.55 mm; Width: 8.1 mm; Height: 20.81 mm) suit high density PCB mounting.

Operates safely in temperature range from -40°C to +85°C for diverse industrial environments. Explore more industrial-grade Toggle Switches and electrical components at EnvMart for your automation and control projects.
