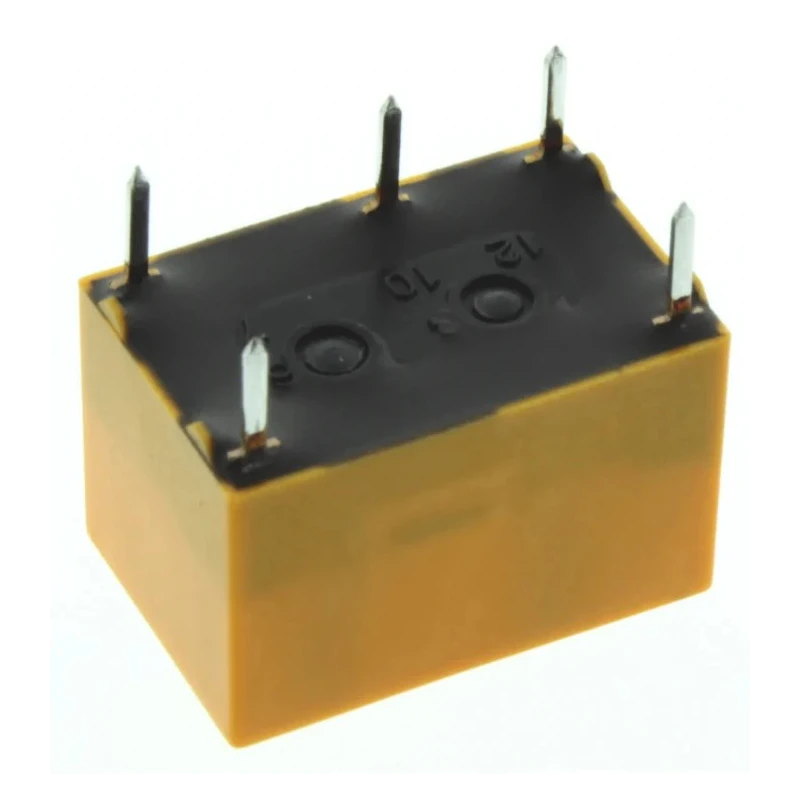

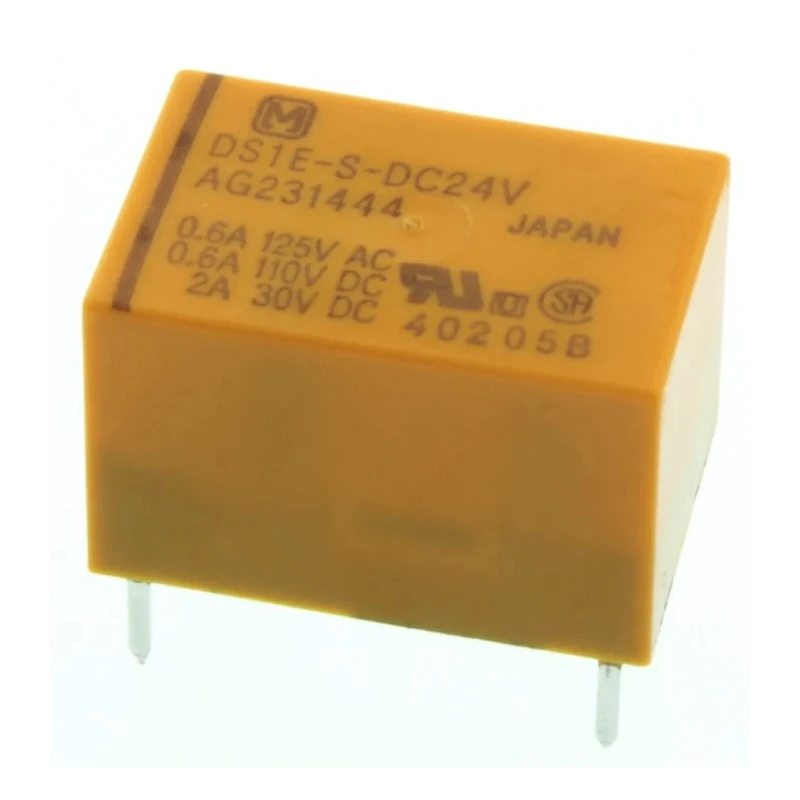

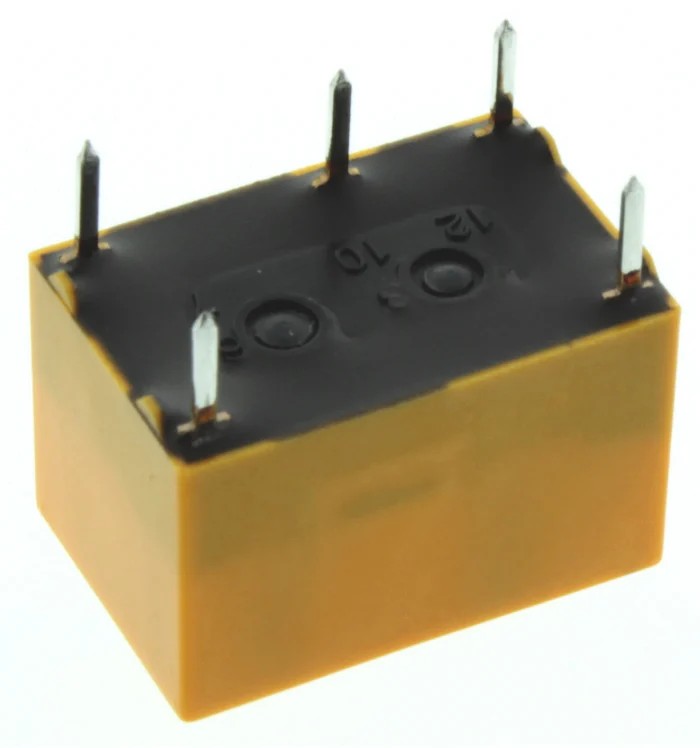

Panasonic PCB Signal Relay, 24V dc Coil, 3A Switching Current, SPST Contact Configuration DS1E-S-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.9mm |
| Length | 20.2mm |
| Model | DS1E-S-DC24V |
| Width | 9.8mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 2800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- The relay is designed for PCB mounting with a compact and standardized size.
- It operates effectively between -40°C to 70°C, making it suitable for various environmental conditions.
- Equipped with a 200mW coil power consumption for energy efficiency.
- Gold-plated contacts ensure high reliability and low contact resistance.
- The relay supports switching of up to 250V AC and 220V DC, suitable for many electrical applications.
- Its sealed construction allows for automatic washing and resistance to shock and vibration.
- Typical applications include telecommunications, computers, and measurement equipment.
- High sensitivity and monostable relay design with dual inline pin configuration.
Product Description
Panasonic DS1E-S-DC24V PCB Signal Relay is a highly sensitive miniature relay designed for PCB mounting with precise specifications ideal for industrial and commercial electrical applications.
This relay uses a 24V dc coil voltage and offers a 3A switching current capacity with a single pole single throw (SPST) contact configuration. It features gold-plated contacts to ensure stable and reliable electrical connections with minimized contact resistance.
Compact in size, the relay measures 20.2mm in length, 9.8mm in width, and 9.9mm in height, facilitating easy mounting on PCB boards. It has a coil power rating of 200mW and coil resistance of 2800 Ω, supporting low operational power consumption.
With a temperature operating range from -40°C up to 70°C, it is suitable for use in challenging environments which demand high performance and durability. The sealed design protects the relay mechanisms allowing automatic washing and enhances reliability against shock and vibration impacts.
This DS Series relay is widely used in telecommunications, measurement equipment, computing devices, and other automation systems requiring reliable signal switching. The relay’s compliance with RoHS standards confirms adherence to environmental safety regulations. Additionally, it is manufactured in Japan ensuring high manufacturing quality.
Compact PCB mount signal relay with gold-plated contacts. Supports 24V dc coil voltage and 3A switching current capacity. SPST single pole single throw contact configuration. Sealed construction for moisture resistance and automatic washing compatibility.
Operating temperature from -40°C to 70°C for varied industrial applications. RoHS compliant and manufactured in Japan.
Explore a broad range of Signal Relays, PCB components, and related electrical products in the Electronics & Electricals category at EnvMart for your automated and industrial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
This model has a maximum switching current of 3A.
The relay measures 20.2mm in length, 9.8mm in width, and 9.9mm in height.
The relay features a single pole single throw (SPST) contact configuration.
It operates effectively within a temperature range of -40°C to 70°C.
This model uses PCB terminals for mounting.
The coil power consumption is rated at 200mW.
It can switch up to 250V AC and 220V DC.
Yes, this relay is compliant with RoHS standards.
The contacts are made of gold-plated material, ensuring reliable connections.
This relay is suitable for applications in telecommunications, measurement equipment, and computing devices.
It is manufactured in Japan.
