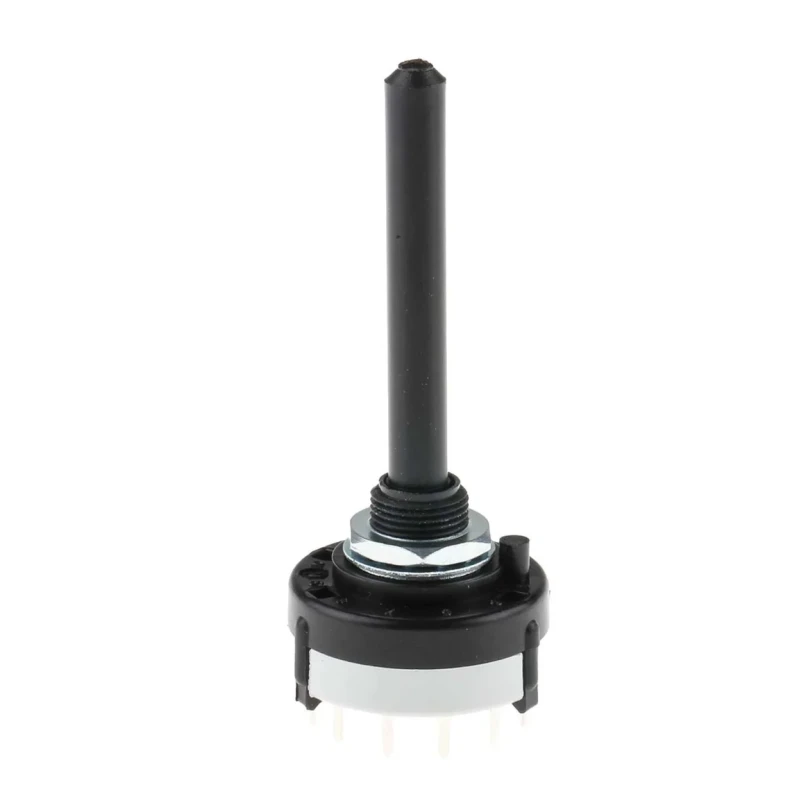

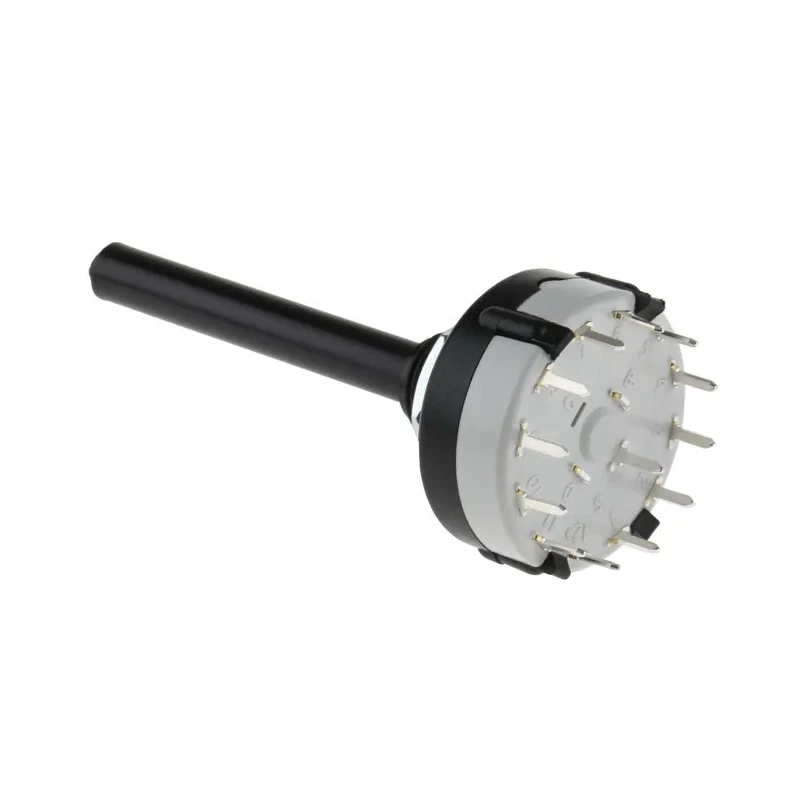

Lorlin 12 Position SPST Rotary Switch, 150mA, Nylon Housing, 27.5mm Diameter, Panel Mount CK1059

Lorlin CK1059 is a 12 Position SPST Rotary Switch designed for reliable electrical switching applications. This rotary switch features a nylon housing with a diameter of 27.5mm and height of 71.1mm, ensuring a compact form factor suitable for panel mounting. The switch is rated for a contact current of 150mA at 250V AC and 24V DC, making it ideal for low-power circuit control in industrial, electrical, and automation systems.

Constructed with robust materials, including a nylon body and solder terminals, the CK1059 ensures enduring performance in demanding environments with operating temperatures from -30°C to 85°C. Its mechanical life extends to 10,000 cycles, providing long-lasting durability.

The rotary switch features 12 discrete positions and a spindle diameter of 6mm, complemented by a threaded bush (M10x0.75mm) for secure knob mounting. It supports a 90° angle of throw with either make-before-break (MBB) or break-before-make (BBM) contact configurations, which can be configured depending on the application’s switching requirements.

This product complies with RoHS standards and offers a proof voltage rating of 1500Vac, ensuring safety and regulatory compliance for high-quality electronics and industrial automation projects. Its panel mount style facilitates easy integration into control panels and switchboards.

This rotary switch features 12 selectable positions for versatile circuit control. Designed with a single pole single throw (SPST) contact configuration. Capable of handling a maximum contact current of 150mA at 250V AC or 24V DC.

Constructed with a robust nylon housing and solder terminal type for secure electrical connections. The switch is panel mounted and sized at 27.5mm diameter and 71.1mm height for easy installation. Operates reliably in temperatures ranging from -30°C to 85°C with a mechanical life of 10,000 cycles.

Equipped with a 6mm spindle and M10x0.75mm threaded bush for easy collet knob mounting. Features a 90° angle of throw with shorting MBB or non-shorting BBM contact options (refer to datasheet). Complies with RoHS standards and includes a 1500Vac proof voltage rating.

This Lorlin rotary switch series CK1059 is ideal for industrial automation, electrical control panels, instrumentation, and other applications requiring precise position switching. For more product selections, explore the Rotary Switches category at EnvMart.
