| Country of Origin | India |
|---|---|
| Brand | HY Electronic Corp |
| Model | UF4008G |
| Mount Type | Through Hole |
| Series | UF4008G |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |

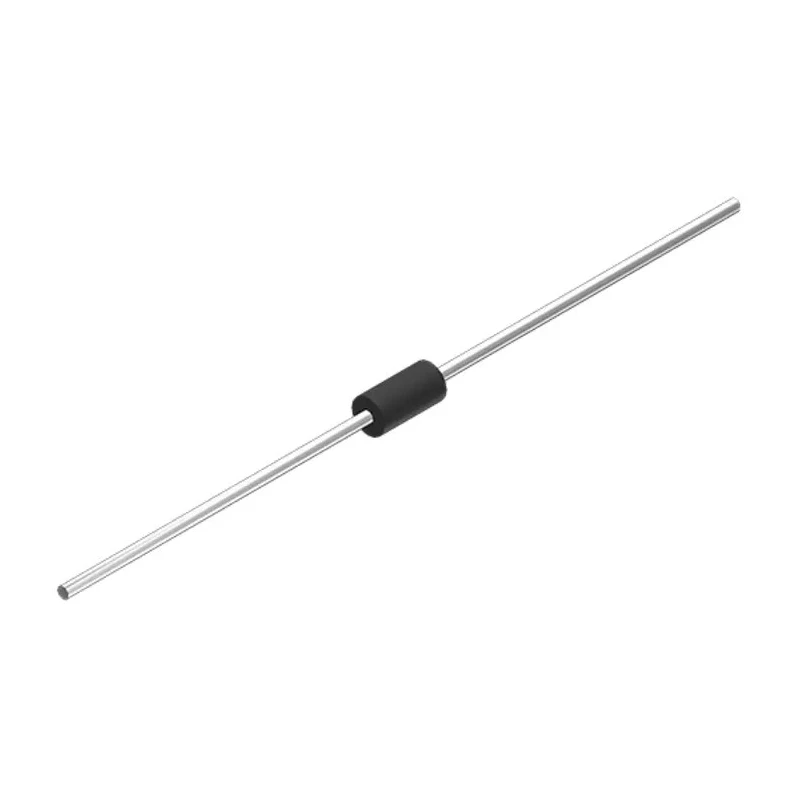

HY Electronic Corp UF4008G is a fast recovery diode designed for industrial and electronic applications requiring efficient switching performance. This diode is housed in a standard 2-pin DO-41 through-hole package, making it ideal for PCB mounting and replacement in existing designs.
With a maximum continuous forward current of 1 A and peak reverse repetitive voltage of 1000 V, it meets demanding voltage and current requirements in power management systems. The maximum forward voltage drop of 1.7 V contributes to lower power loss and improved energy efficiency.
The diode features a low peak reverse current of 100 μA which helps reduce leakage and minimize standby losses in circuits. It can safely withstand surge currents up to 30 A, ensuring reliability during transient spikes.
Designed for a broad temperature spectrum from -55°C to 150°C, the UF4008G diode maintains stable operation even in harsh environments, making it suitable for automotive and industrial electronics.
Its ultra-fast recovery time of 75 ns optimizes switching speed, critical for use in switched-mode power supplies (SMPS), high-frequency inverters, pulse width modulation (PWM) control circuits, and polarity protection layouts.
The plastic encapsulated body has a flammability rating of UL 94V-0, enhancing safety and durability in end products. This diode is RoHS compliant, ensuring environmental and regulatory compatibility.
Compact 2-pin DO-41 package for ease of mounting. Maximum forward current of 1 A for reliable circuitry. Rated for 1000 V peak reverse voltage for high voltage circuits. Ultra-fast recovery time of 75 ns for efficient switching.
Low leakage current enhances efficiency. High surge current rating for transient robustness. Wide operating temperature range for versatile applications. Plastic encapsulation meets industrial safety standards.
This diode is suited for industrial, electronic, automotive, and power supply applications where fast switching and high voltage capability are necessary. It supports high-efficiency power conversion and protection in diverse electronic assemblies.
