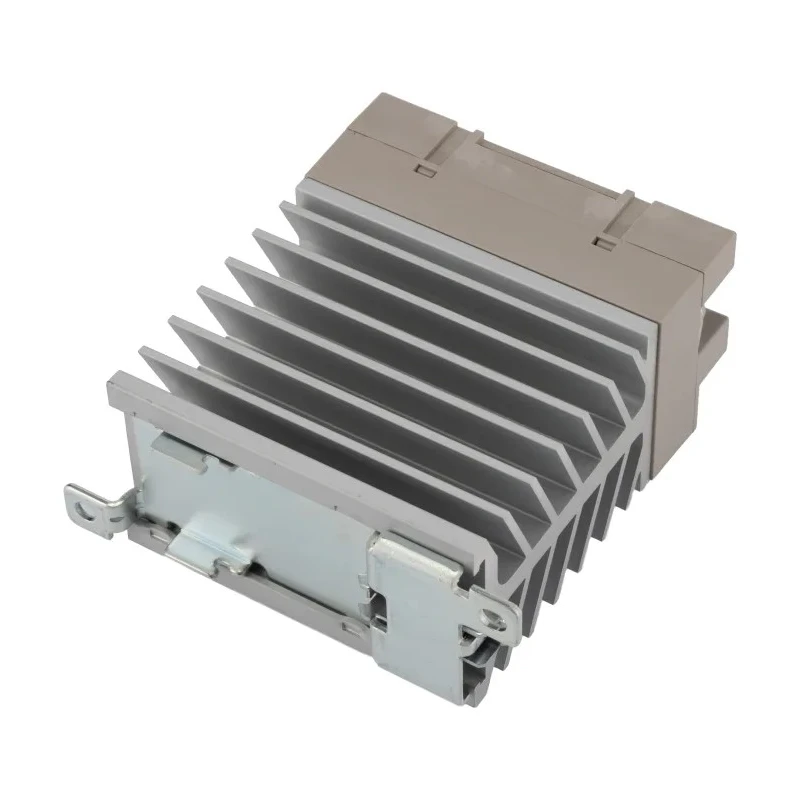

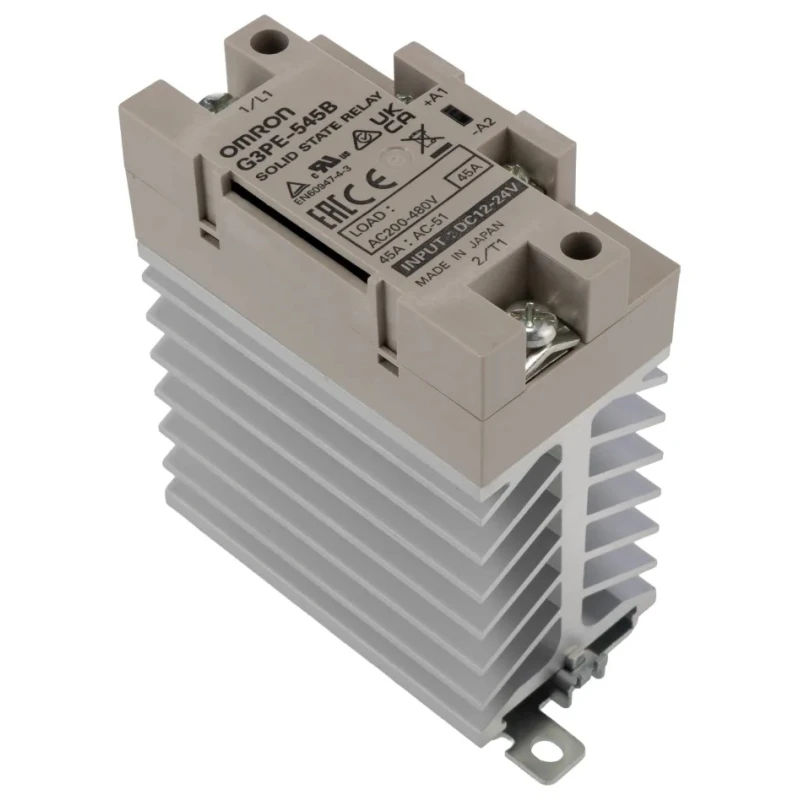

Omron Solid State Relay, DIN Rail Mount, 45 A Load, 528 V Load, 24 V Control G3PA

Omron G3PE-545B DC12-24 is a high-performance solid state relay engineered for industrial automation and control systems. This DIN rail mount relay supports a maximum load current of 45 A and can handle load voltages up to 528 V AC, making it ideal for high-current AC load switching.

Designed to accept a low-voltage DC control signal ranging from 12 to 24 V DC, it ensures isolation between the input control and the high-voltage load circuit. Zero-cross switching functionality reduces electrical noise and transient inrush currents, improving system stability and reliability.

The relay is constructed with screw-type terminals for firm and secure wiring connections, essential in environments with mechanical vibrations. Its operational temperature range from -30°C to 80°C makes it suitable for demanding industrial environments.

With an IP20 enclosure rating, the device is protected against accidental contact with live parts, though it is not water resistant. Compliance with UL, RoHS, EN, CSA, and CE standards underlines its safety and quality credentials.

This solid state relay is ideal for applications such as heater control switching, motor pre-heating circuits, and multi-phase sequence timing panels, where reliable and efficient AC load switching is critical.

Accommodates a wide load voltage range from 180 V to 528 V AC. Operates with a control voltage between 12 V and 24 V DC for flexible compatibility. Features zero-cross switching to minimize electrical noise and inrush current.

Equipped with screw terminals for secure wiring in vibration-prone environments. Operates reliably in temperatures from -30°C to 80°C, suitable for harsh industrial conditions. Compact size with dimensions 100 mm (H) x 44.5 mm (W) x 100 mm (L).

Meets UL, RoHS, EN, CSA, and CE standards ensuring safety and compliance. IP20 rating provides protection against hazardous contact but not water ingress. Explore the extensive range of Solid State Relays and industrial automation products available at EnvMart for your control system needs.
