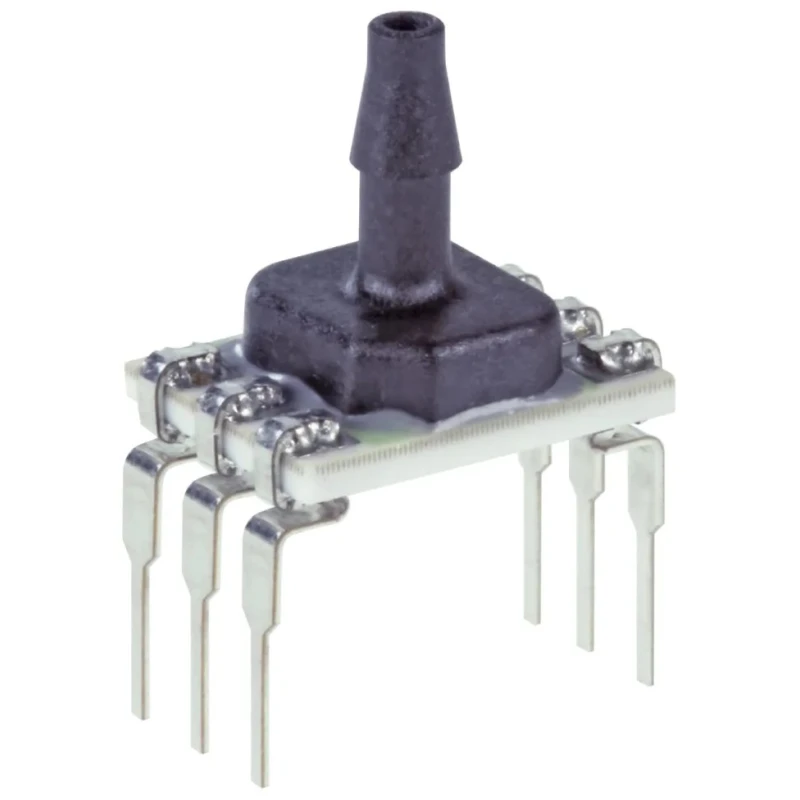

Honeywell Technologies Pressure Sensor Board 6 DIP, Piezoresistive, 60 mbar, ±0.25% Accuracy ABPDANT060MGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 60 mbar |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDANT060MGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 2000mbar |
Key Features
- Operates at a maximum pressure of 60 mbar and maximum overload pressure of 2000 mbar.
- Features a single axial barbed port for effective pressure measurement.
- Provides ratiometric analogue or 12-bit digital output for flexible interfacing.
- Wide operating temperature range from -40°C to +85°C suitable for varied environments.
- Low power consumption with sleep mode of 2μA ideal for battery-operated systems.
- Calibrated on-board and temperature compensated for consistent readings.
- Meets automotive standard ISO 9001 and food safety certifications including BPA Free, LFGB, NSF-169.
- Suitable for HVAC, medical devices such as CPAP, ventilator pressure monitoring, and pneumatic control systems.
Product Description
Honeywell ABPDANT060MGAA5 is a high-precision pressure sensor board with a 6-pin Dual Inline Package (DIP). This piezoresistive pressure sensor is specially designed to measure gauge pressure up to 60 mbar with an exceptional accuracy of ±0.25%. The device operates reliably across a broad temperature range from -40°C to +85°C, making it suitable for diverse industrial, medical, and HVAC applications.
The sensor board offers both a ratiometric analogue output and a 12-bit digital output compatible with I2C or SPI interfaces, allowing flexible system integration. It includes on-board temperature compensation and calibration to ensure consistent performance over time and varying environmental conditions.
Constructed to withstand a maximum overload pressure of 2000 mbar, the sensor is designed for dry-gas or liquid media environments when used with the appropriate gel coating. It conforms to automotive quality management standards (ISO 9001) and is certified BPA Free, LFGB, and NSF-169 for food-contact safety, expanding its usability to food and beverage machinery such as coffee machines.
With its compact dimensions of 7.3 mm length, 6.3 mm width, and 3.63 mm height, the sensor board fits conveniently into compact equipment. Its low power sleep mode consumption of 2μA makes it ideal for battery-powered devices.
This sensor is widely applicable for pressure monitoring in CPAP and ventilators, low-pressure sensing in HVAC control loops, blood analysis instruments, dosing pumps, coffee machines, pneumatic control, and valve positioning systems.
Operates with accurate pressure sensing and low drift over long-term use. Robust design tolerates vibration up to 15 g and shock up to 100 g, with high humidity resistance. Flexible outputs for analogue and digital interfacing simplify implementation.
Explore more quality Honeywell pressure sensor products in EnvMart’s Electronics & Electricals Sensor ICs category for reliable industrial and laboratory applications.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 60 mbar.
It provides both a ratiometric analogue output and a 12-bit digital output compatible with I2C or SPI interfaces.
The accuracy of this model is ±0.25%.
The operating temperature range is from -40°C to +85°C.
The dimensions are 7.3 mm in length, 6.3 mm in width, and 3.63 mm in height.
The maximum overload pressure is 2000 mbar.
It is designed for dry-gas or liquid media environments when used with the appropriate gel coating.
This sensor board has a pin count of 6.
It meets automotive standard ISO 9001 and is certified BPA Free, LFGB, and NSF-169 for food-contact safety.
The minimum supply voltage is -0.3V and the maximum supply voltage is 5V.
This sensor is suitable for applications such as HVAC, medical devices like CPAP and ventilators, and pneumatic control systems.
It features a single axial barbed port for effective pressure measurement.
