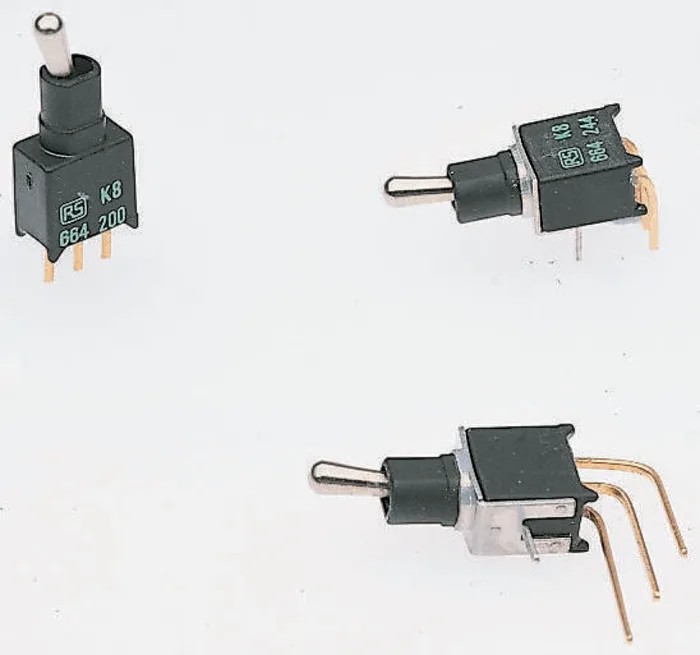

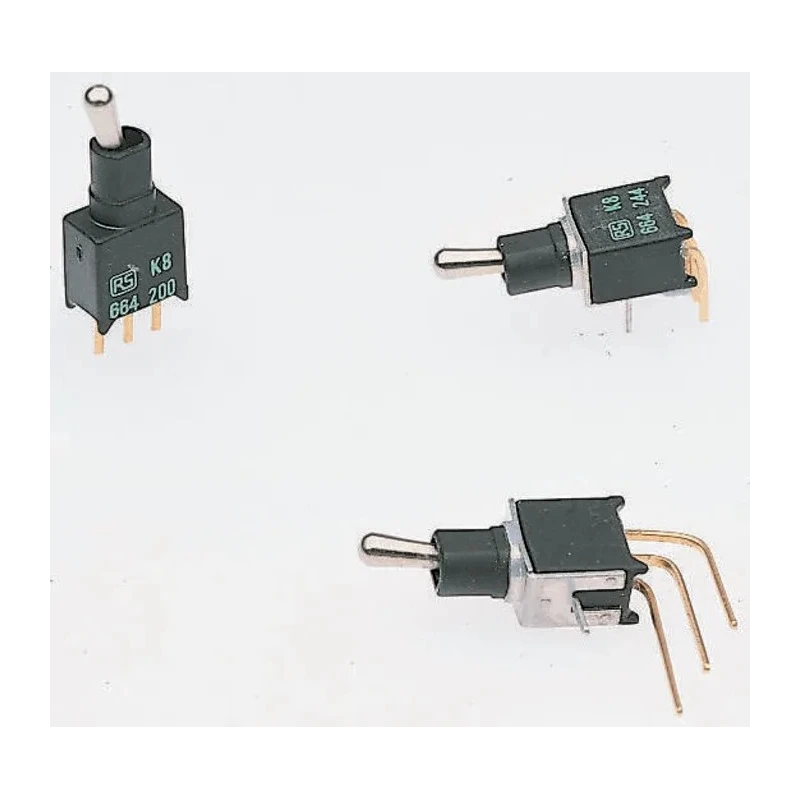

APEM Toggle Switch PCB Mount On-Off-On SPST Through Hole Terminal 24 V dc 250 V ac TL37WW050

APEM TL37WW050 Toggle Switch PCB Mount On-Off-On SPST is a high-quality, ultra-miniature toggle switch engineered for reliable operation in electrical and automation applications. The switch is rated for 24 V dc and 250 V ac contact voltages with a maximum switching current of 400mA. It features a single-pole single-throw contact configuration with an On-Off-On switch operation that provides momentary contacts at the (On) positions.

The toggle switch has a brass actuator and a PBT case, ensuring durability and stable electrical performance. Its compact dimensions of 36 mm height, 14 mm length, and 12 mm width enable easy integration into tight spaces and PCB-mounted systems. The panel cutout size is 6.5 mm, matching standard installation sizes.

This product boasts a mechanical life of 10,000 operations and up to 60,000 operations for 2-position switches and 30,000 for 3-position switches under specified loads. It is designed for industrial use, including in automation equipment and control panels, and meets international standards including UL, CSA, NF VDE, RoHS, and CECC.

The switch is totally sealed for immersion cleaning, making it suitable for manufacturing environments requiring rigorous hygiene and wave solderable withstanding 260°C for 5 seconds. Gold-plated brass terminals improve conductivity and resistance to corrosion. Minimum load currents are as low as 10mA at 50mV, ensuring functionality in sensitive low voltage circuits.

Single-pole single-throw (SPST) contact configuration. On-Off-On switch operation with momentary (On) positions. Brass actuator and PBT case construction. Panel cutout size: 6.5 mm for easy installation. Mechanical life of 10,000 operations and extended durability ratings.

Operating temperature range from -30°C to 85°C. Compliant with UL, CSA, NF VDE, RoHS, and CECC standards. Gold plated brass terminals for reliable conductivity. Sealed for immersion cleaning and wave solderable. Suitable for low-level switching in industrial and automation systems.

This toggle switch is an ideal component for industrial machinery, electrical control panels, automation equipment, and applications requiring reliable and compact switching solutions. It offers robust performance and certifications to meet international quality standards.
