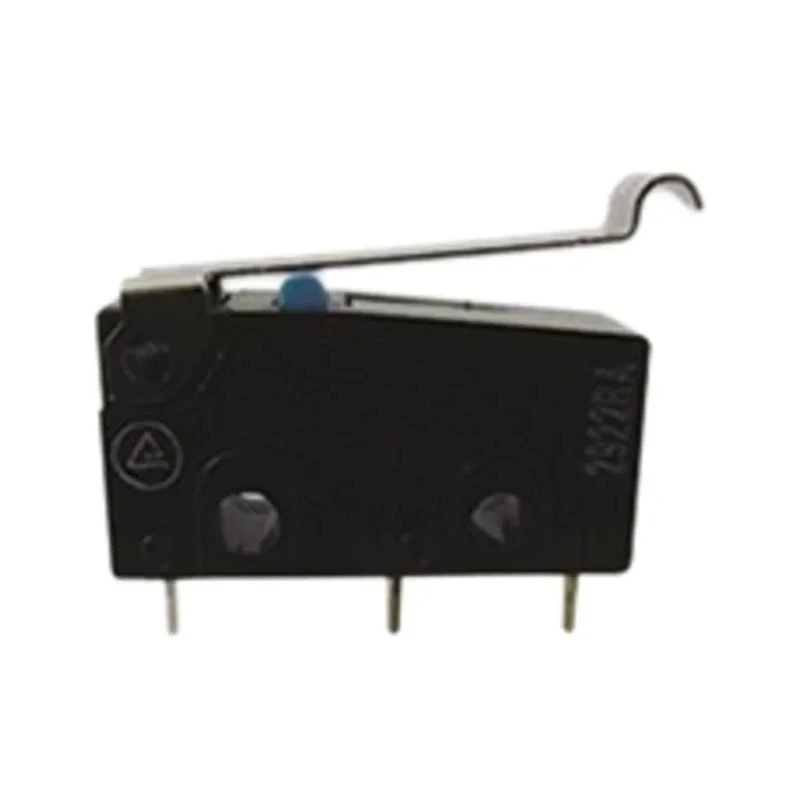

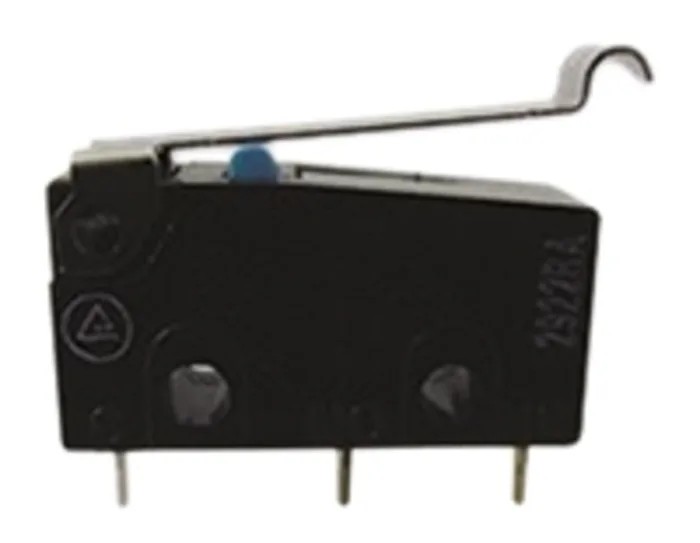

Omron Subminiature Simulated Roller Lever Micro Switch PCB Terminal 5A 250 V AC, 30 V DC SSG-5L3P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | SSG-5L3P |
| IP Rating | IP40 |
| Series | SSG |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Actuator Type | Simulated Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 5A |
| Operating Force | 0.6N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
| Dimensions (body) | H9.9mm, W19.8mm, D6.4mm |
Key Features
- The switch has a simulated roller lever actuator for precise mechanical actuation.
- Designed as a subminiature micro switch with a compact V4 style housing.
- Equipped with PCB terminal type connections resistant to flux.
- Supports a switch contact current of 5A with SPDT contact configuration.
- Rated for electrical contact voltages of 250 V AC and 30 V DC.
- IP40 rated providing basic protection against solid objects larger than 1 mm.
- Operates reliably across a wide temperature range from -25°C to 125°C.
- Mechanical life expectancy up to 10,000,000 operations ensuring durability.
Product Description
Omron SSG-5L3P Subminiature Simulated Roller Lever Micro Switch is designed for precise switching applications in industrial and electronic equipment.
The compact subminiature design with V4 style housing and PCB terminals offers ease of installation and flux resistance, making it suitable for manufacturing environments with soldering processes.
This micro switch supports a switch contact current of 5A and contact voltages up to 250 V AC and 30 V DC, ensuring reliable power handling for control circuits. The actuator features a simulated roller lever for smooth mechanical operation with an operating force of 0.6N, providing dependable switching sensitivity.
Rated IP40, it is protected against solid objects larger than 1 mm but is not water resistant. The product operates within a broad temperature range of -25°C to 125°C, suitable for various industrial and commercial environments.
With a robust mechanical life of 10 million operations, this micro switch is built for longevity in high-cycle applications.
The product conforms to RoHS standards and is certified by multiple international bodies including UL, CSA, VDE, TUV, BEAB, and IMQ, assuring quality and compliance for global markets.
The switch has a simulated roller lever actuator for precise mechanical actuation. Designed as a subminiature micro switch with a compact V4 style housing. Equipped with PCB terminal type connections resistant to flux. Supports a switch contact current of 5A with SPDT contact configuration.
Rated for electrical contact voltages of 250 V AC and 30 V DC. IP40 rated providing basic protection against solid objects larger than 1 mm. Operates reliably across a wide temperature range from -25°C to 125°C. Mechanical life expectancy up to 10,000,000 operations ensuring durability.
Complies with RoHS standards and key international approvals including UL, CSA, VDE, TUV, BEAB, and IMQ.
This micro switch is widely used in industrial automation, electrical controls, instrumentation, and manufacturing applications requiring precise and reliable switching with PCB mounting.
Explore more from Omron Micro Switches and related electronic components for industrial and laboratory automation at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a switch contact current of 5A.
The switch is rated for electrical contact voltages of 250 V AC and 30 V DC.
It features a simulated roller lever actuator for precise mechanical actuation.
It has an IP40 rating, providing basic protection against solid objects larger than 1 mm.
It operates reliably across a temperature range from -25°C to 125°C.
The mechanical life expectancy is up to 10,000,000 operations.
It is equipped with PCB terminal type connections that are resistant to flux.
The dimensions of the body are H9.9mm, W19.8mm, and D6.4mm.
It complies with RoHS standards and is certified by multiple international bodies including UL, CSA, VDE, TUV, BEAB, and IMQ.
It has a Single Pole Double Throw (SPDT) contact configuration.
The operating force is 0.6N.
It is widely used in industrial automation, electrical controls, instrumentation, and manufacturing applications requiring precise and reliable switching.
