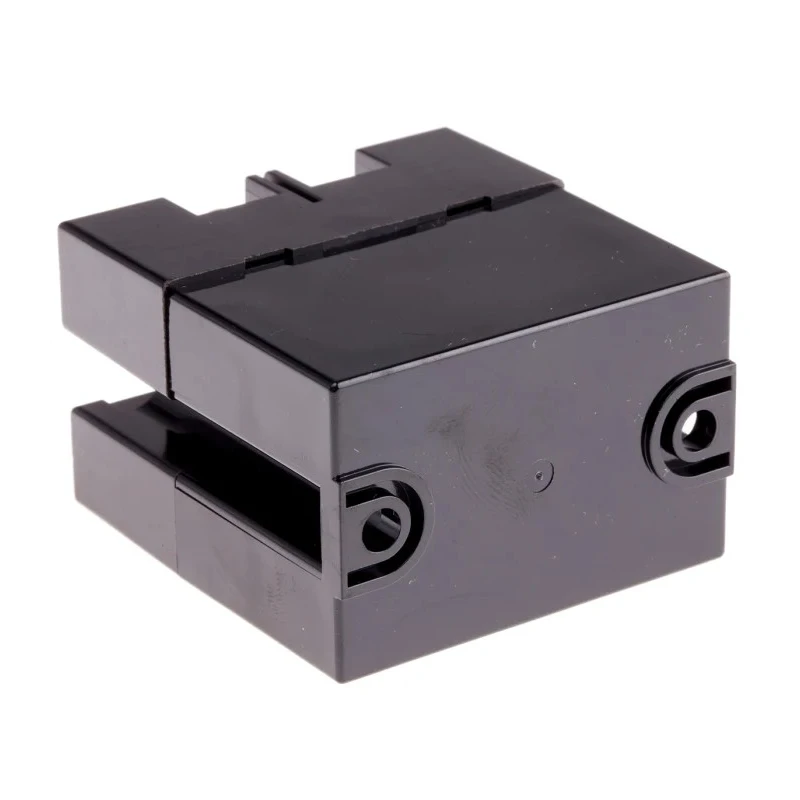

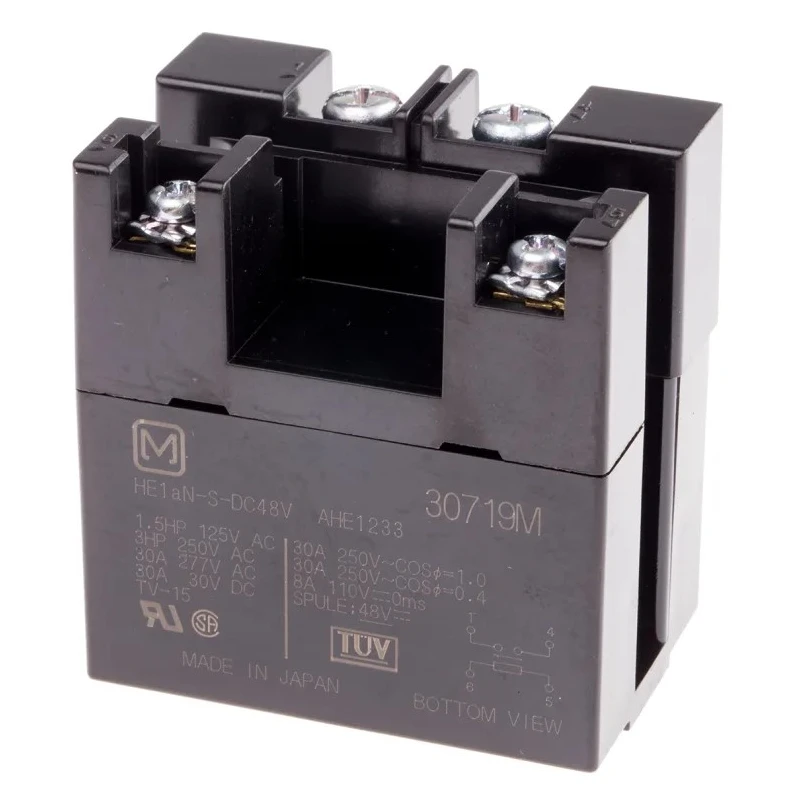

Panasonic PCB Power Relay 48V dc Coil 30A Switching Current SPST HE1AN-S-DC48V

Panasonic HE1AN-S-DC48V PCB Power Relay is engineered for high capacity and excellent surge resistance with a 48V DC coil and a switching current capacity of 30A. This SPST relay is built to offer durability and long service life, suitable for industrial, office, and home appliance applications.

Its mounting type is PCB with screw terminals allowing secure and straightforward installation. The silver alloy contact material provides excellent conductivity and minimizes wear through its robust contact resistance of 100mΩ. Operating temperature range from -50°C to 55°C ensures stable performance under varying conditions.

The relay supports switching powers up to 8.3 kVA and switching voltages up to 277V AC and 30V DC, making it versatile for various electrical loads. Its HE series design emphasizes surge voltage resistance greater than 10,000 V and mechanisms to prevent contact welding through pre-tension and kick-off technology.

Commonly employed in machine tools, molding machinery, air conditioners, and heating equipment, this relay meets multiple international standards including VDE, CSA, RoHS, UL, and TUV certifications - assuring safety and compliance.

This relay is designed for PCB mounting with screw terminals for easy installation. The relay belongs to the HE series known for high capacity and long life. It operates between -50°C and 55°C operating temperatures, suitable for demanding environments.

The coil resistance is 1.2kΩ and coil power is 1.92W, ensuring reliable coil performance. Contact material consists of silver alloy to guarantee excellent conductivity and durability. It supports switching voltages of up to 277V AC and 30V DC, providing versatility in applications.

The relay's compact dimensions are 50mm length, 44.5mm height, and 16.5mm width. Typical applications include machine tools, moulding equipment, air conditioners, and heating equipment.

With a country of origin in Japan, this power relay ensures quality manufacturing and reliability. It is ideal for use in industrial automation, HVAC systems, manufacturing equipment, and electrical control panels.
