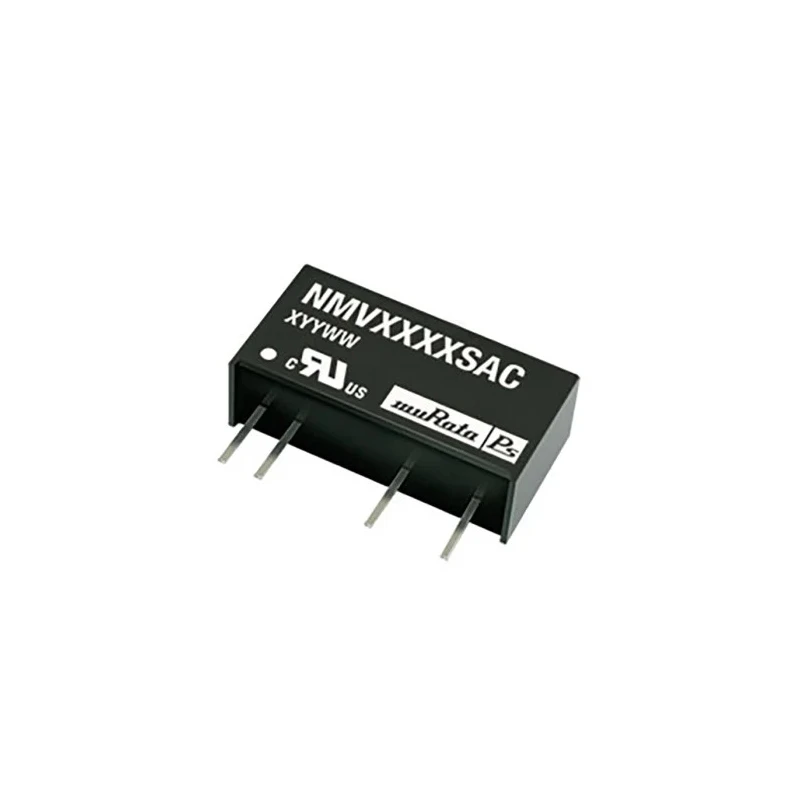

Murata Power Solutions SIP Through Hole DC/DC Converter 15V DC Output, 5.5V DC Max Input, 4.5V DC Min Input, 1W NMV0515SAC

Murata Power Solutions NMV0515SAC is a single output DC/DC converter designed for industrial and electronic applications requiring reliable voltage conversion. This SIP7 through-hole package converter features 15V DC output voltage at 67mA output current with a maximum output power rating of 1 watt. It supports input voltages ranging from 4.5V to 5.5V DC with an output voltage adjustment range consistent with these input limits. The device remains operational across a wide temperature range from -40°C to 85°C, making it suitable for demanding conditions in industrial, laboratory, manufacturing, HVAC, and instrumentation uses.

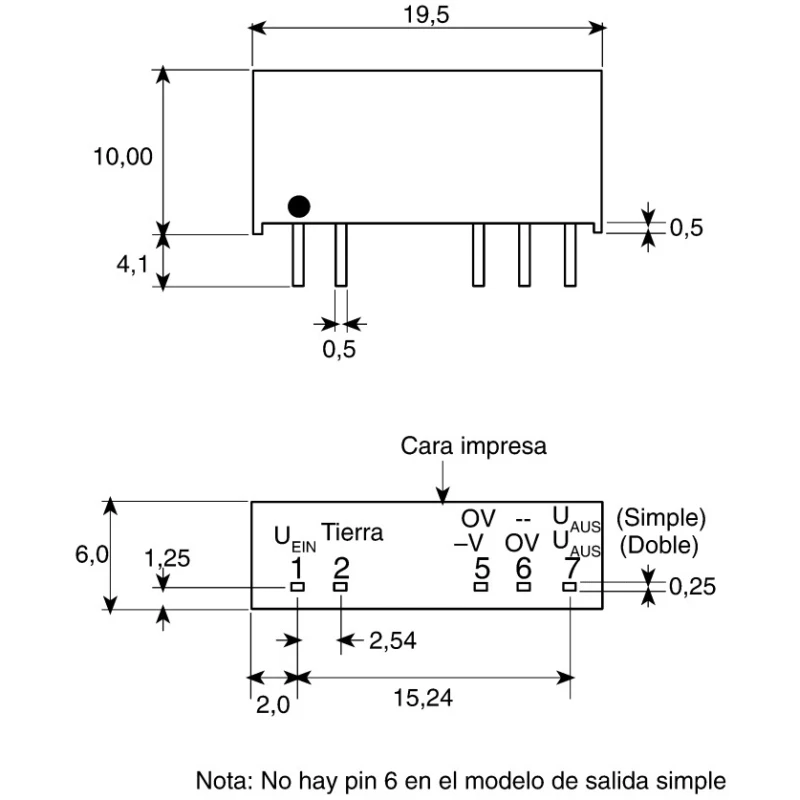

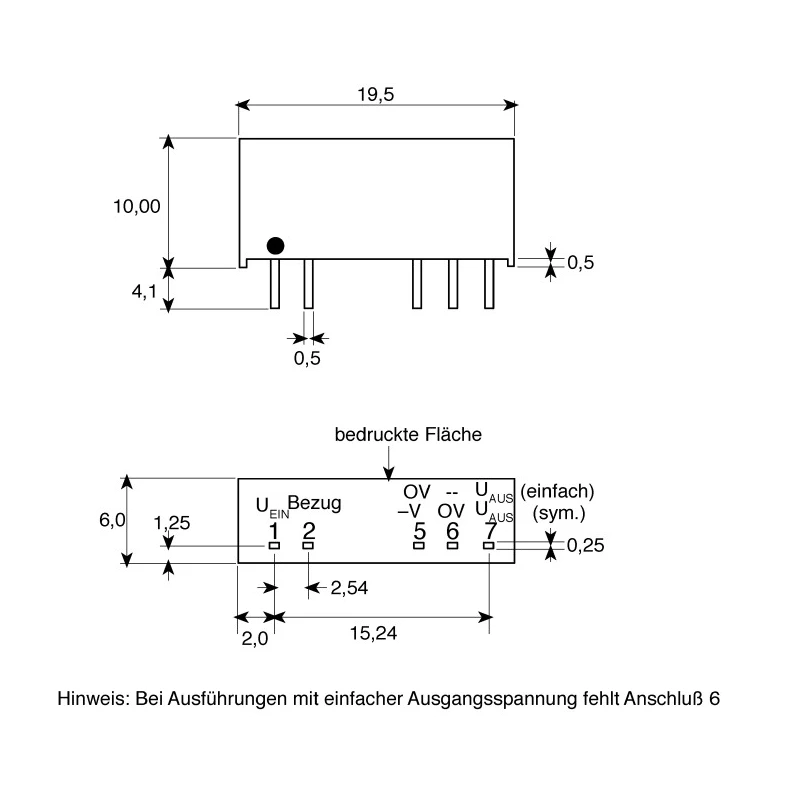

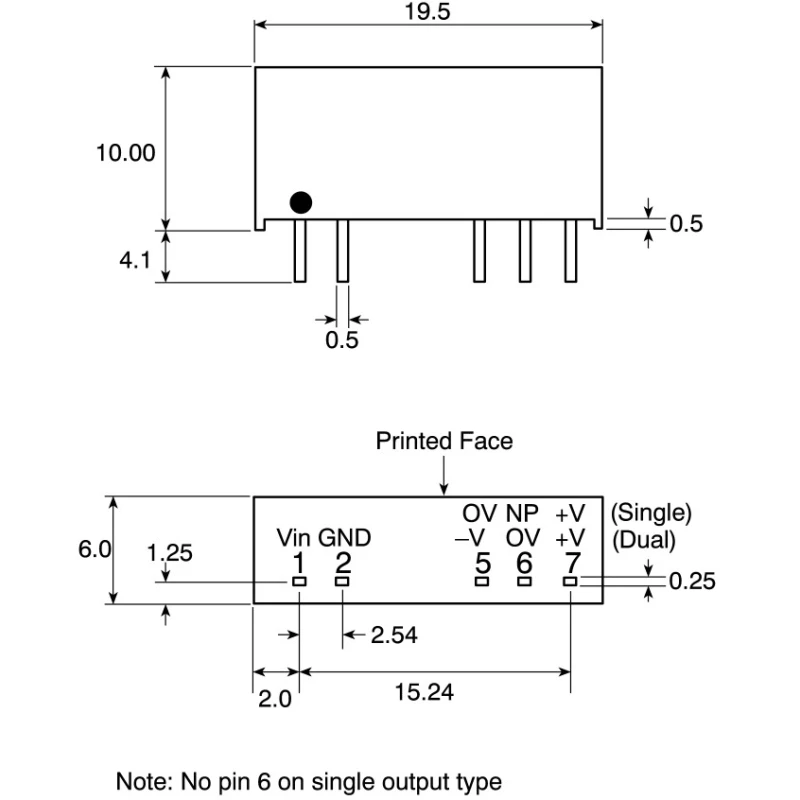

The NMV series converter offers a high isolation voltage of 3kV DC between input and output, ensuring safety and noise isolation in electronic circuits. Its unregulated isolated output simplifies power supply design by eliminating the need for external components, thanks to its internal SMD construction within a UL 94V-0 rated plastic package. The compact dimensions of 19.5mm length, 10mm width, and 10mm depth enable efficient use of PCB space, and the through-hole mounting style allows secure attachment and easy insertion during manufacturing assembly.

The unit exhibits a typical efficiency of 78%, contributing to lower heat generation and improved energy savings. Ripple and noise are controlled to 14mV peak-to-peak, supporting sensitive electronics. The expected mean time between failures (MTBF) is approximately 1,838,000 hours per MIL-HDBK-217F at 25°C, underscoring its reliability.

Applications include use in power supplies for communication devices, measurement instruments, industrial control systems, and embedded systems requiring isolated DC voltage regulation. This converter complies with RoHS standards, ensuring environmentally friendly manufacturing.

High efficiency DC/DC conversion at 78% typical efficiency. Input voltage range from 4.5V minimum to 5.5V maximum. Compact SIP7 package with through hole mounting for easy PCB insertion. Supports up to 85°C maximum operating temperature.

3kV DC input/output isolation for safe and reliable operation. Unregulated isolated output suitable for various electronic applications. No external components required simplifying design and assembly. Rugged internal SMD construction with UL 94V-0 plastic package material.

This NMV0515SAC DC/DC converter from Murata Power Solutions is an excellent choice for engineers and designers seeking a stable, efficient, and compact power conversion solution for embedded and industrial electronic systems. For more options, explore our selection of DC/DC Converters and related power supply components on EnvMart.
