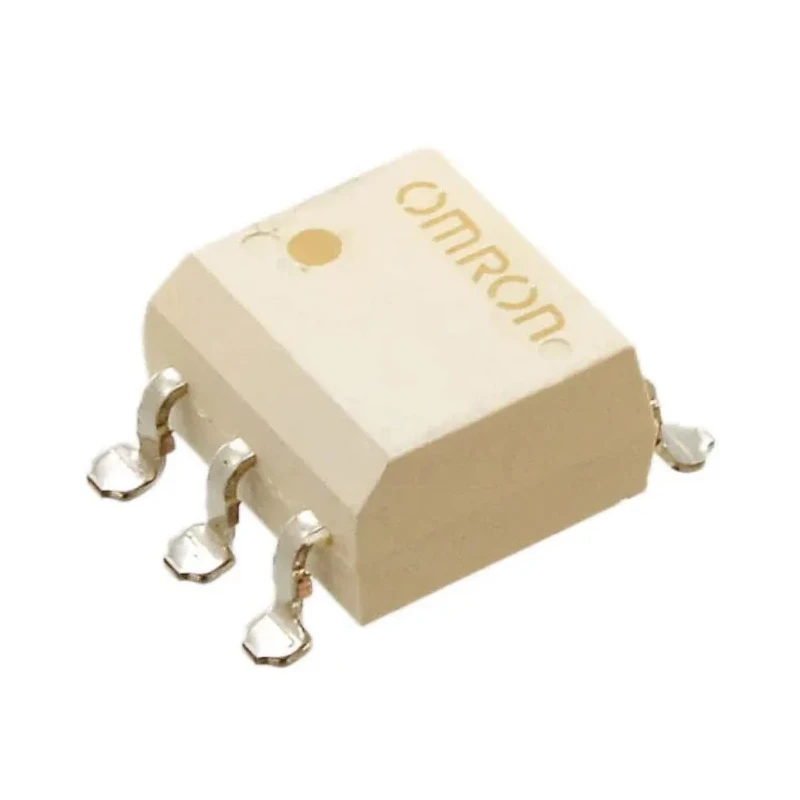

Omron G3VM Series Solid State Relay, 5 A Load Current, 40 V Load Voltage, 5 V Control Voltage, PCB Mount, SOP-6 Package

Omron G3VM-41HR is a high-performance solid state relay designed for electronic and industrial applications. This relay supports a maximum load current of 5 A and a maximum load voltage of 40 V, controlled by a low 5 V input signal. It is surface mountable on PCBs using the SOP-6 package format, providing a compact and reliable switching solution.

The MOSFET output type offers low on state resistance of 0.07 ohms, which ensures minimal power loss and heat generation during operation. The single-pole single-throw normally open contact form (SPST-NO) simplifies wiring and control logic in control circuits.

Designed to operate reliably over a wide temperature range from -40°C to 85°C, the G3VM-41HR solid state relay is suitable for harsh industrial, communication, semiconductor test, security, and amusement equipment environments. It complies with RoHS environmental directives and UL safety certifications, ensuring quality and safety standards are met.

This relay’s compact dimensions - 6.3 mm length, 4.4 mm width, and 2.1 mm height - make it ideal for space-constrained circuit designs. Its low capacitance (1100 pF) and surface-mount terminal type further enhance its suitability for high-speed and dense integrated circuits.

Package contains a single Omron G3VM-41HR solid state relay in SOP-6 format, ready for PCB mounting and industrial use. This MOSFET relay features a single-pole single-throw normally open (SPST-NO) contact configuration.

It supports a maximum control voltage of 5 V and offers low on state resistance of 0.07 ohms. The relay is designed for surface mount technology with a compact SOP-6 package measuring 6.3 mm length. Operating temperature range is from -40°C to 85°C, suitable for various industrial environments.

Applications include semiconductor test equipment, communication devices, security systems, and industrial automation. Certified to RoHS and UL standards, assuring environmental compliance and safety. Country of origin: Japan, ensuring high manufacturing quality and reliability.
