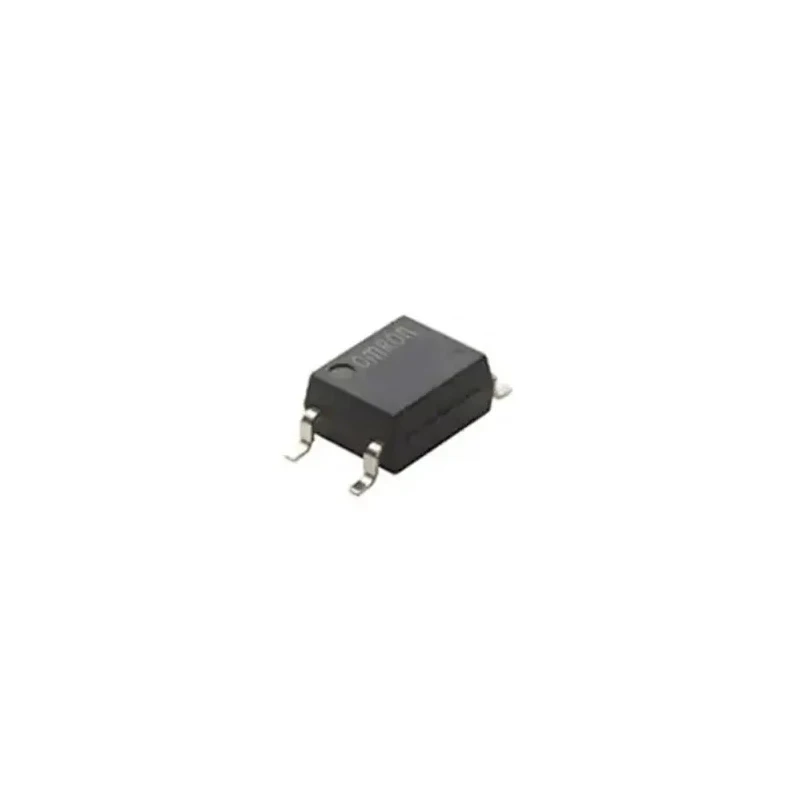

Omron Aratas G3VM Series Solid State Relay, Surface Mount, 500 mA Load, 60 V Load

The Omron G3VM-61VY2(TR05) is a solid state relay from the G3VM series designed for surface mount applications. With a maximum load current rating of 500 mA and a maximum load voltage capability of 60 V, it suits low-power switching needs in compact electronic devices.

This relay features a single-pole single-throw (SPST) contact configuration and supports both AC and DC switching functions, making it highly versatile across industrial, automation, and electronic applications. Its off-state leakage current is remarkably low, at 1 μA, which reduces power dissipation in the off state.

Operating reliably within a temperature range from -40°C to 110°C, this device is well-suited to harsh and varying environmental conditions. Package dimensions are optimized for space conservation with a 4.55 mm length, 3.7 mm width, and 2.1 mm height, facilitating integration into miniature equipment and assemblies.

The MOSFET output architecture ensures fast response and minimal electrical noise, which is critical in sensitive electronic circuits. The solid state relay meets relevant UL and RoHS standards, highlighting its quality and compliance with industry safety and environmental regulations.

Manufactured in Japan, the G3VM series relays are a dependable choice for industrial control systems, instrumentation, telecommunications, and consumer electronics requiring highly efficient, low-noise switching solutions.

Maximum load current of 500 mA supports small load applications. Surface mount design enables compact and automated PCB assembly. Operates with a maximum load voltage of 60 V and minimum load voltage of 1 V. Wide operating temperature range from -40°C to 110°C ensures reliability in harsh environments.

SPST contact configuration with AC/DC switching function enhances versatility. Low off-state leakage current of 1 μA minimizes power loss. Extremely small package dimensions (4.55mm length, 3.7mm width, 2.1mm height) fit miniature equipment.

Output stage based on MOSFET technology for low noise and high-speed switching. Compliance with UL and RoHS standards assures quality and environmental safety. Manufactured in Japan with premium quality standards.

Choose Omron G3VM-61VY2(TR05) Solid State Relay for reliable, compact, and energy-efficient switching solutions in electronics manufacturing, industrial automation, and signal control applications. Explore more quality relays and contactors on EnvMart.
