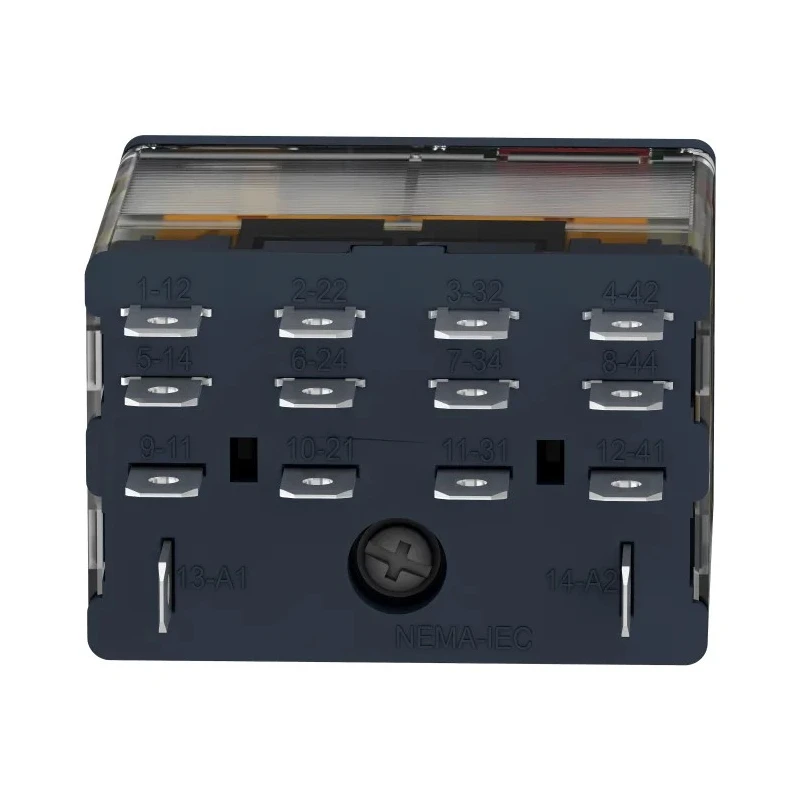

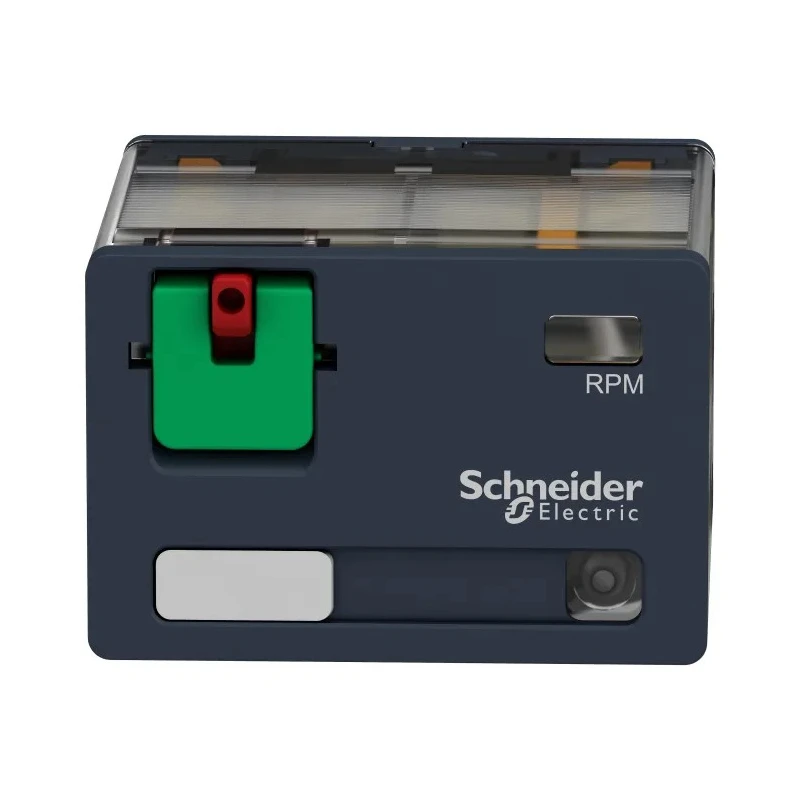

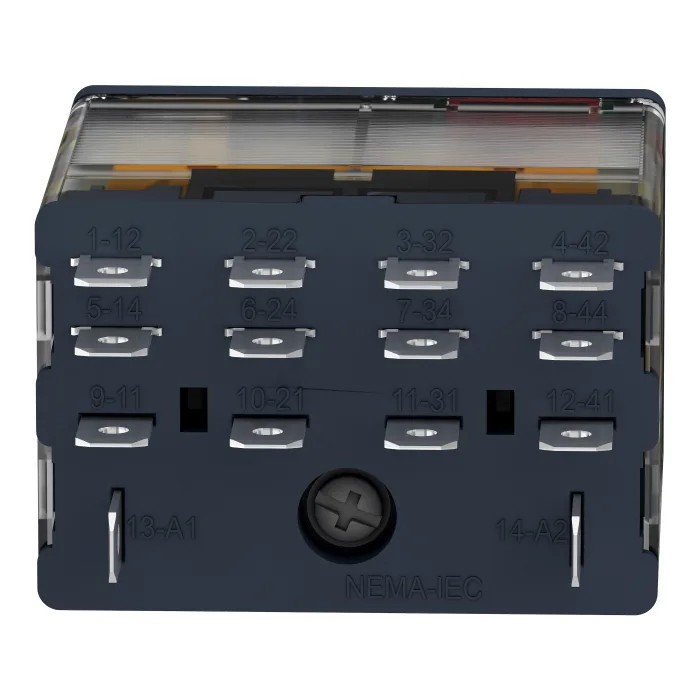

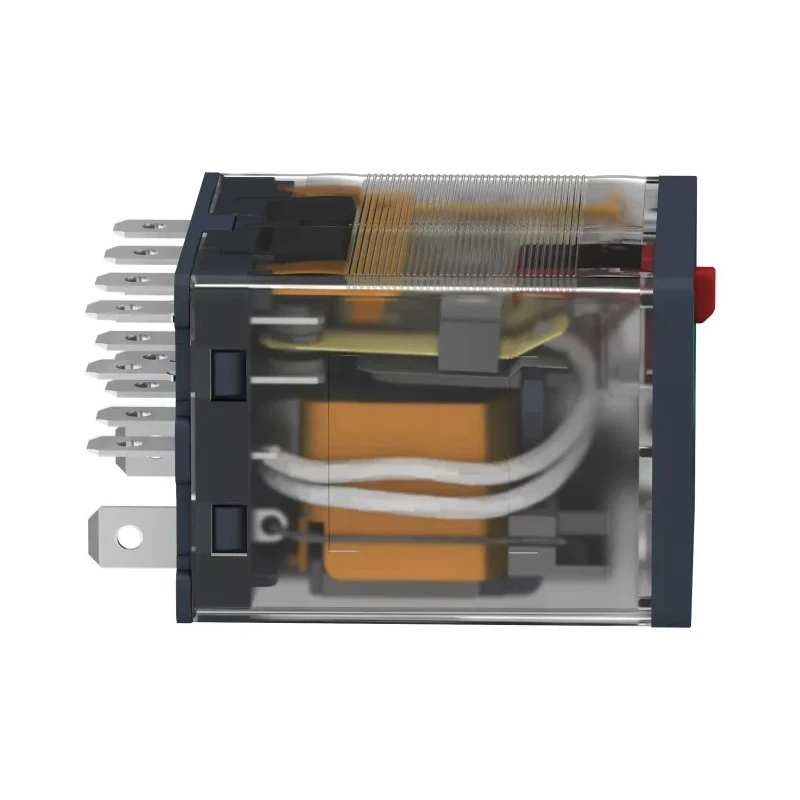

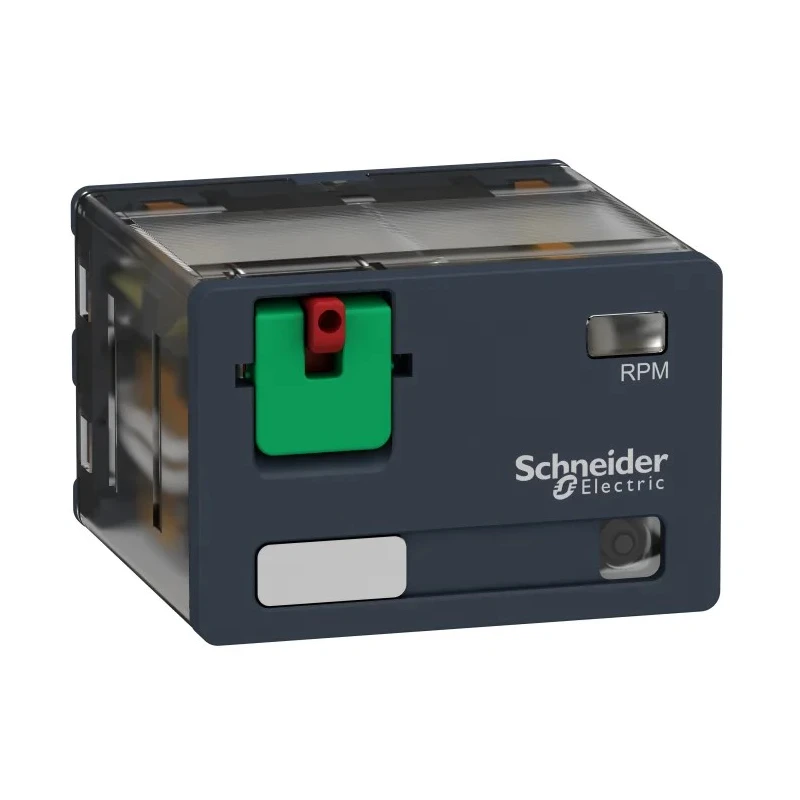

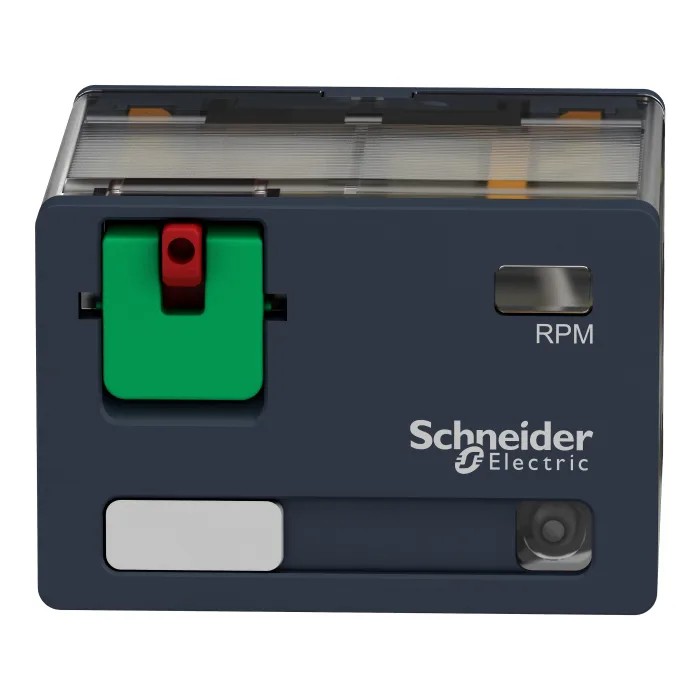

Schneider Electric Panel Power Relay, 230V AC Coil, 15A Switching Current, 4PDT RPM42P7

Schneider Electric RPM42P7 is a panel power relay designed for industrial and automation applications, featuring a coil voltage of 230V AC and a nominal switching current of 15A. This 4PDT relay offers four changeover contacts, providing flexible switching options in a compact form factor. The plug-in terminal design simplifies installation and maintenance, while the silver alloy contacts ensure long-term reliability and efficient conductivity.

The relay supports switching AC voltages up to 277V and DC voltages up to 28V, with a coil power consumption of only 2.5W, making it energy efficient. It is rated for a maximum switching power of 420W and operates reliably over a temperature range of -40°C to 55°C, suitable for harsh industrial environments.

Equipped with an LED status indicator, the relay provides clear visual feedback of operational states both day and night. It complies with RoHS standards and is designed for easy disassembly to support sustainability goals. The compact dimensions (41mm length, 47mm width, 27mm height) and IP40 protection rating enable flexible enclosure mounting and reliable operation.

This product is ideal for use in electrical panels, automation systems, industrial programmable logic controllers (PLCs), and other control environments where reliable power relay switching is essential. The device helps reduce enclosure sizes and increase machinery reliability by offering a versatile and easy to mount solution.

Package contents include one Schneider Electric RPM42P7 panel power relay with 230V AC coil voltage and 4PDT contact configuration. This product is made in China and supplied in new condition, assuring high manufacturing standards and quality control.

Explore additional Schneider Electric Power Relays and related electrical components available for industrial automation, manufacturing, and electrical system integration on EnvMart.

Operates with a coil voltage of 230V AC ensuring compatibility with AC control systems. Features 4PDT (quadruple pole double throw) contacts rated for 15A current switching capacity. Panel mount design with plug-in terminals allows easy installation and maintenance.

Compact dimensions of 41mm length, 47mm width, and 27mm height optimize enclosure space. Equipped with a 2.5W coil power rating for efficient operation. Silver alloy contact material enhances durability and reduces contact wear.

Rated for a switching power of 420W with AC voltage switching up to 277V and DC voltage up to 28V. Operating temperature range from -40°C to 55°C supports diverse industrial environments. LED indicator displays relay status clearly day and night for easy monitoring.

IP40 protection rating for standard industrial protection against solid objects. Designed for disassembly aligning with environmental sustainability practices.
